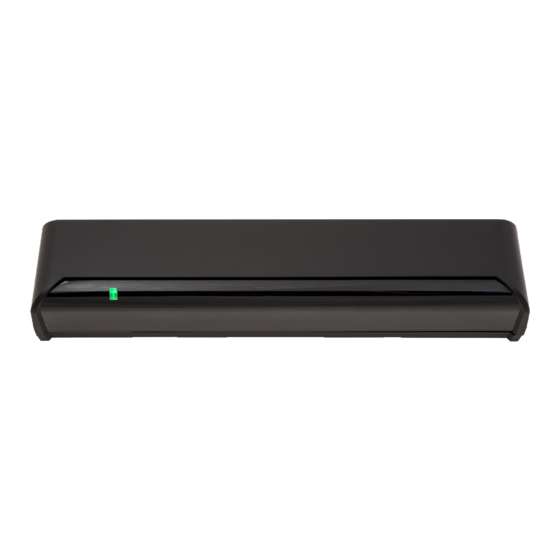

Optex OA-4500S Manual

OA-4500S(E)
Manufacturer's statement
Read this operation manual carefully before use to ensure proper operation of this product.
Failure to read this operation manual may cause improper operation and may result in serious injury or death of a person.
The meanings of the symbols are as follows.
Failure to follow the instructions that accompany this indication and improper handling
WARNING
may result in serious injury or death.
Failure to follow the instructions that accompany this indication and improper handling
CAUTION
may result in injury and/or damage to property.
NOTE
Pay special attention to sections with this symbol.
NOTE
1. This product is a non-contact switch intended for header mount to use on industrial doors.
Do not use for any other applications.
2. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
3. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment
connected to the product.
4. Only use the product as specified in the operation manual provided.
5. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country
in which the product is installed.
6. Before leaving the installation site make sure that the product is operating properly and instruct the
building owner/operator on proper operation of the door and the product.
7. The product settings can only be changed by an installer or service engineer.
When changed, the changed settings and the date shall be registered in the maintenance logbook
accompanying the door.
The following conditions may cause issues with the sensor operation.
Fog,
Exhaust Wet Vibration
Specifications
Model : OA-4500S(E)
Cover color : Black
Mounting height : 2.5 to 4.5 m (8'2" to 14'9")
Detection area : See Detection area
Detection method : Active infrared reflection
Depth angle adjustment : 1st to 3rd rows : -6 to +6°
4th and 5th rows : +26 to +44°
Power supply : 12 to 24 VAC ±10 % (50/60 Hz)
12 to 30 VDC ±10 %
Power consumption : < 2.5 W (< 4 VA at AC)
Operation indicator : See Operation indicator table
Output hold time : Approx. 500 ms
Response time : < 300 ms
Operating temperature : -20 to +55°C (-4 to 131°F)
Operating humidity : < 80 % (Non-condensing)
Operation indicator table
Status Operation indicator color
Stand-by
1st row detection
2nd to 5th row detection
Signal saturation
Replacement signal Twice Green blinking
NOTE
The specifications herein are subject to change without prior notice due to improvements.
Detection area
Charts show the values in the following depth angle adjustment settings ;
1st to 3rd rows : +6°
4th and 5th rows : +44°
: Emitting spots
: Emitting spots
(Can be eliminated)
: Detection area
1st row
2nd row
Motion/presence
3rd row
detection
4th row
5th row
Mounting
2,500 (8'2") 3,000 (9'10")
height
A 160 (6") 200 (8")
B 480 (1'7") 580 (1'11")
C 930 (3'6") 1,100 (3'7")
D
1,540 (5'1") 1,850 (6'1")
E 2,170 (7'1") 2,600 (8'6")
F 1,510 (4'11") 1,810 (5'11")
G 3,150 (10'4") 3,790 (12'5")
Z 250 (10") 300 (12")
NOTE
The actual detection area may become smaller depending on the ambient light, the color/material of
the object or the floor as well as the entry speed of the object.
The sensor may not be activated when the entering speed of the object or a person is slower than
50 mm/s or faster than 1500 mm/s.
Danger of electric shock
Do not wash, disassemble,
rebuild or repair the sensor,
otherwise it may cause electric
shock or breakdown of the
equipment.
Objects Reflection
Activation output : When 3rd, 4th or 5th row detects.
N.C./N.O. selectable
50 V 0.3 A Max. (Resistance load)
Safety output : When 1st or 2nd row detects.
N.C./N.O. selectable
50 V 0.3 A Max. (Resistance load)
IP rate : IP54
Weight : 320 g (11.2 oz)
Accessories : 1 Operation manual
2 Mounting screws
1 Mounting template
1 Area adjustment tool
1 Cable 4.0 m (13'2")
Green
Red
Orange
Slow Green blinking
Z
F
G
3,500 (11'6") 4,000 (13'2")
230 (9") 260 (10")
670 (2'2") 760 (2'6")
1,300 (4'3") 1,480 (4'11")
2,160 (7'1") 2,460 (8'1")
3,030 (9'11") 3,460 (11'4")
2,110 (6'11") 2,400 (7'11")
4,420 (14'6") 5,050 (16'7")
350 (1'2") 400 (1'4")
Dimensions and part names
ENGLISH
5918983 DEC 2022
(1)
(3)
(1) Connector
(2) Mounting holes
Installation
1. Mounting
a. Affix the mounting template at the
desired mounting position.
b. Drill two mounting holes ø3.4 mm (ø1/8")
on the header.
c. To pass the cable through the header,
drill a wiring hole of ø8 mm (ø5/16").
WARNING
2. Wiring
Wire the cable to the door controller.
3. Turn ON the power
a. Plug the connector.
b. Supply power to the sensor. Adjust the detection area and set the dipswitches.
(See Adjustments 3. Dipswitch settings)
NOTE
Make sure to connect the cable correctly to the door controller before turning the power ON.
When turning the power ON or after adjusting the settings, do not enter the detection area for more than
10 s in order to enable the presence detection.
4. Mounting the housing cover
Place the housing cover.
If wiring is to be exposed,
break the knockout.
Adjustments
1. Area depth angle adjustment
a. Independent adjustment
1st to 3rd rows
Depth angle adjustment screw for the 1st to 3rd rows.
Red
Mounting
A
surface Use the area adjustment tool (A) as shown above to
change the area depth angle for the 1st to 3rd rows.
B
C
D
E
4th and 5th rows
Depth angle adjustment screw for the 4th
and 5th rows.
Blue
[mm(feet,inch)]
4,500 (14'9")
Use the area adjustment tool (B) as shown
above to change the area depth angle for
290 (11")
the 4th and 5th rows.
850 (2'9")
1,660 (5'5")
b. Simultaneous adjustment
2,760 (9'1")
For the simultaneous adjustment of the
3,890 (12'9")
1st to 5th rows, use the adjustment tool (C).
2,700 (8'10")
5,680 (18'8")
450 (1'6")
Deep
267(10 1/2")
125(4 15/16")
36(1 7/16") 43(1 11/16")
(2)
(5) (4) (5) (6) (7)
(3) Operation indicator (5) Width adjustment screws
(4) Depth angle adjustment screw (6) Dipswitches
36(1 7/16")
The lower
edge of the
header
Grey Power supply
Grey 12 to 24 VAC (50/60 Hz) / 12 to 30 VDC
Yellow
Activation output
Yellow
See DIP 13 to 15 comment
in "3. Dipswitch settings".
Green
Safety output
Green
Knockout
Do not use the sensor without the cover. When using the
cable knockout, install the sensor indoors or use the rain
cover (Separately available) otherwise electric shock or
breakdown of the sensor may occur.
Area adjustment tool
B
Depth angle
adjustment
A
screw
C
Shallow
Deep
3.0 2.0 1.0
(9'10") (6'7") (3'3")
Shallow Deep
4.0 3.0 2.0 1.0
(13'2") (9'10") (6'7") (3'3")
Shallow Deep
Shallow
4.0 3.0 2.0 1.0
(13'2") (9'10") (6'7") (3'3")
45(1 3/4")
[mm(inch)]
(9)
(7) Detection window
(8) Area adjustment tool
125(4 15/16")
Wiring hole
ø8 mm (ø5/16")
25(1")
Mounting holes
ø3.4 mm (ø1/8")
[mm(inch)]
WARNING
Danger of electric shock
Before starting the procedure,
make sure that the power is turned
OFF. When passing the cable
through the hole, do not tear the
shield otherwise it may cause
electric shock or breakdown of the
sensor.
WARNING
Danger of electric shock
NOTE
Make sure that the detection area
does not overlap with the door/header,
and there is no highly reflecting object
near the detection area otherwise
ghosting/signal saturation may occur.
[mm(feet,inch)]
Deep Shallow
2.0
(6'7")
3.0
(9'10")
4.0
(13'2")
4.5
0 2.0 1.0 0 1.0
(14'9")
(6'7") (3'3") (3'3")
[mm(feet,inch)]
Deep Shallow
2.0
(6'7")
3.0
(9'10")
4.0
(13'2")
4.5
0 2.0 1.0 0 1.0
(14'9")
(6'7") (3'3") (3'3")
[mm(feet,inch)]
Deep Shallow
2.0
(6'7")
3.0
(9'10")
4.0
(13'2")
4.5
0 2.0 1.0 0 1.0
(14'9")
(6'7") (3'3") (3'3")
