- Page 1 0197 Mars1717XF Wireless Digital Flat Panel Detector User Manual Document Version: Document ID: 051-201-02 Release Date: 1/22/2024...
- Page 2 Thanks you for purchasing the Mars1717XF Wireless Digital Flat Panel Detector (hereinafter referred to as Mars1717XF) from iRay Technology Co., Ltd. (hereinafter referred to as iRay). This manual contains all the general information about the Mars1717XF, which is intended to provide users with instructions on installation, use and maintenance.
- Page 3 Mars1717XF User Manual To Customers For Your Safety To avoid personal injury or product damage, be sure to read the user manual and all accompanying information carefully and pay attention to all safety information before installing and using the detector.
- Page 4 Mars1717XF User Manual To Customers This emphasizes or supplements important information about the main text. NOTE This symbol is used to indicate “please refer to accompanying documents attached to the CD disk or sections in this manual”. REFERENCE Abbreviations Abbreviations...
-
Page 5: Table Of Contents
Mars1717XF User Manual Contents Contents TO CUSTOMERS ..........................I CONTENTS ............................IV SAFETY INFORMATION ........................ 1 Label Description ........................... 1 Safety Precautions ..........................4 1.2.1 Operation and Storage Environment ......................4 1.2.2 Equipment, Interface, Power Source, and Cables ..................5 1.2.3... - Page 6 Mars1717XF User Manual Contents 3.6.1 Detector ..............................21 3.6.2 Battery Pack .............................. 23 3.6.3 Battery Charger ............................24 3.6.4 Power Adapter ............................25 BASIC OPERATION ........................26 Preparation ............................26 4.1.1 Attaching Battery Pack to Detector ......................26 4.1.2 Installing the Battery into the Charger ..................... 27 Routine Operation ..........................
-
Page 7: Safety Information
適配器供電輸入 4700 電源供電輸入 4700 iRay Technology Co. , Ltd. RM202, Building 7, No. 590, Ruiqing RD. Zhangjiang East, Pudong, 201201 Shanghai P.R.China 20XX-XX www.iraygroup.com 上海奕瑞光電子科技股份有限公司 中國上海市浦東新區瑞慶路 590号9幢2層202室 Contains IC: 25116-01070189 (01)06970569090320(11)210618(17)280617(21)XXXXXXXXXXXXXX Made in China Copyright © iRay Technology Co., Ltd. - Page 8 Technology Co. , Ltd. RM202, Building 7, No. 590, Ruiqing RD. Zhangjiang East, Pudong, 201201 Shanghai P.R.China 20XX-XX www.iraygroup.com 上海奕瑞光電子科技股份有限公司 中國上海市浦東新區瑞慶路590号9幢2層202室 Contains IC: 25116-01070189 (01)06970569090313(11)210618(17)280617(21)XXXXXXXXXXXXXX Made in China Battery Charger Battery Pack ------------------ Copyright © iRay Technology Co., Ltd.
- Page 9 Production Site Production Version No. Derivative Type Production Type iRay Technology’s authorized representative in the European community Indicates the information of the manufacturer, including the name and address of the manufacturer Caution! Consult accompanying documents Consult instructions for use When the end user intends to discard the product, it must be sent to separate collection facilities...
-
Page 10: Safety Precautions
Do not operate or store the equipment in or around flammable or corrosive gases, gas mixtures, liquids, chemicals, or other substances. Ignoring this warning may result in an explosion, fire, or electric shock, which may result in WARNING personal injury, death, or substantial product damage. Copyright © iRay Technology Co., Ltd. -
Page 11: Equipment, Interface, Power Source, And Cables
When connected to patient, it is only allowed be powered by battery and shall disconnect adapter cord. Use only dedicated cables for the device. Do not use any other cables. Copyright © iRay Technology Co., Ltd. -
Page 12: Handling
Do not touch the interface and power unit or cable and the patient at the same time. Do WARNING not let the patient touch the interface and power unit or cable. Have the patient take a fixed posture and do not let the patient touch parts unnecessarily. Copyright © iRay Technology Co., Ltd. -
Page 13: Failure Handling
AC outlet, and immediately contact your sales repre- sentative or local iRay distributor. Further use under abnormal conditions may result in severe personal injury, death, or substan- tial product damage. Copyright © iRay Technology Co., Ltd. -
Page 14: Battery Pack
The X-ray detector must be repaired by X-ray detector manufacturer authorized person- nel only. Ignoring this warning may result in explosion, fire, electric shock, or unknown hazards, which may result in severe personal injury, death, or substantial product damage. Copyright © iRay Technology Co., Ltd. -
Page 15: Notes For Using The Equipment
Do not make an exposure within 30 seconds after a full-range exposure. The larger the dose used, the longer the wait should be before the next exposure. During image acquisition, detector should not be influenced in a physical or electrical way. Copyright © iRay Technology Co., Ltd. - Page 16 Wipe it with a cloth slightly damped with a neutral detergent. Do not use solvents such as alcohol, thinner, benzene, ② acid and base. Doing so may damage the surface of the equipment. It’s recommended to use a waterproof non-woven cover as the isolated layer between detector and the blooding ③ patient. Copyright © iRay Technology Co., Ltd.
-
Page 17: Regulatory Information
Regulatory Information Regulatory Information Medical Equipment Classification Mars1717XF has two power supply modes (power adaptor and battery pack) and a single way for signal transmis- sion (wireless). Class I equipment, using medically approved adaptor supply Protection type against electrical shock... -
Page 18: Guidance And Manufacturer's Declaration For Emc
80% AM at 1kHz Near fields from RF wireless Refer to table “Near Fields from RF Wireless IEC 61000-4-3 communications equipment Communications Equipment” Rated power frequency mag- 30A/m IEC 61000-4-8 netic fields 50Hz or 60Hz Copyright © iRay Technology Co., Ltd. - Page 19 , 270 and 315 º º º º º º º Voltage dips IEC 61000-4-11 0% UT; 1 cycle 70% UT; 25/30 cycles Single phase: at 0º Voltage interruptions IEC 61000-4-11 0% UT; 250/300 cycles Copyright © iRay Technology Co., Ltd.
-
Page 20: Radio Frequency Compliance Information
RF communication devices such as mobile (cellular) telephones. Electromagnetic interference may result in incorrect operation of the system and a potentially dangerous situation. The Mars1717XF series wireless flat panel detector should not be stacked with or adjacent to other devices. If inevitable, verify the detector. -
Page 21: Battery Safety Standards
UN38.3 of tests and Criteria ST/SG/AC.10/11/Rev.6 Environmental Directive Europe WEEE directive ROHS(2011/65/EU) PFOS legislation(No.757/2010) REACH legislation(No.1907/2006) Cadmium legislation (Controlled substance: Annex XVII) REACH legislation (No.1907/2006) (SVHC: Annex XVII) New batteries directive(2006/66/EC) EU Packaging Directive(94/62/EC) Copyright © iRay Technology Co., Ltd. -
Page 22: Radio Frequency (Rf) Energy
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Copyright © iRay Technology Co., Ltd. -
Page 23: Ic Notice
Cet appareil et son (ses) antenne (s) ne doivent pas être situés à proximité l'un de l'autre et ne doivent pas fonctionner en même temps qu'une autre antenne ou qu'un autre émetteur. Copyright © iRay Technology Co., Ltd. -
Page 24: Product Introduction

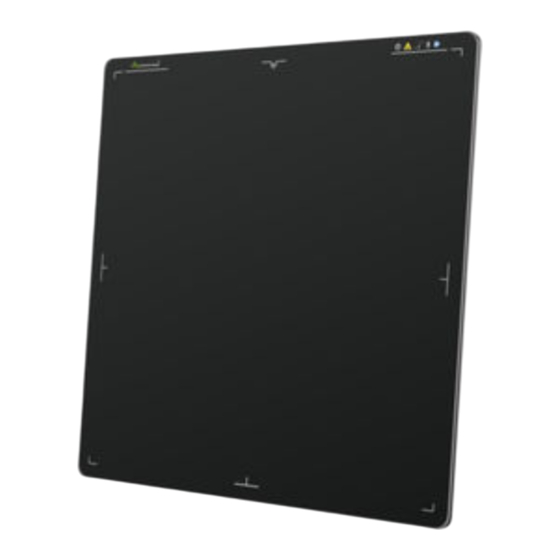

Product Introduction Overview Mars1717XF is a cassette-size wireless digital X-ray flat panel detector based on amorphous silicon thin-film transistor technologies. It is developed to provide the highest quality of radiographic images, and contains an active matrix of 2832×2836 with 150um pixel pitch. -
Page 25: Intended Use
Packing List Check the list below to verify that all the items have been included. Contact your iRay dealer if anything is missing or damaged. Item Figure Qty. (unit: piece) Mars1717XF GSI/CSI Detector Copyright © iRay Technology Co., Ltd. - Page 26 Mars1717XF User Manual Product Introduction Item Figure Qty. (unit: piece) Power adapter (24V) Battery pack (7.6V) Battery charger Gigabit Ethernet cable User Manual (Paper Print) Copyright © iRay Technology Co., Ltd.
-
Page 27: Component Description
Transmits image data with wireless communications (IEEE802.11a/b/g/n/ac) ⑧ Battery Battery inserted to supply electrical power when connecting wirelessly Status Indicator Status Indicator Color Description Detector is turned off Exposure prohibited Green ON Ready for exposure Copyright © iRay Technology Co., Ltd. - Page 28 Power Indicator Status Power Indicator Color Battery Capacity DC Input Description Detector is turned off Orange ON ≥ 7% & ≤ 15% Detector is turned on >15% Green ON Detector is turned on Copyright © iRay Technology Co., Ltd.
-
Page 29: Battery Pack
The battery is set to ship mode when shipped. Prior to its initial use, three methods are available to activate your battery pack: Method Operation Insert the locked battery pack into the battery charger Battery charger activation Power up the charger and the battery will be activated in about 13~15 seconds Copyright © iRay Technology Co., Ltd. -
Page 30: Battery Charger
3.6.3 Battery Charger Name Description ① Battery slot Charges the battery when properly placed ② Charging indicator Indicates the charging status ③ 24V DC Jack Supplies power to the battery charger Copyright © iRay Technology Co., Ltd. -
Page 31: Power Adapter
Detector supports an external adapter powered, It gets CB certificate No. SG PSB-MD-00005 and NRTL certificate No. U8V 093768 0016.The ports defined as bellow: Definition Voltage Range Rated Current DC Power Negative 0~0.5V 0~0.42A DC Power Positive 23~25V 0~0.42A DC Power Positive 23~25V 0~0.42A DC Power Negative 0~0.5V 0~0.42A Copyright © iRay Technology Co., Ltd. -
Page 32: Basic Operation
4.1.1 Attaching Battery Pack to Detector Mars1717XF can be powered by both a battery pack and DC power. Once the battery pack is inserted or DC power is connected, detectors will be turned on immediately. If neither battery nor DC power is connected, detector will power off. -
Page 33: Installing The Battery Into The Charger
Shutdown: when the detector is turned on, you can press the button and hold for 4 seconds to turn off the detector. Reboot: if the panel is disconnected, you may press and hold the power button for 8 seconds to restart the connect. Copyright © iRay Technology Co., Ltd. -
Page 34: Network
Image Transfer Wireless: IEEE802.11a/b/g/n/ac Wireless Frequency Range 2.412~2.472GHz, 5.18~5.22GHz;5.745~5.85GHz 802.11b DSSS (CCK, DQPSK, DBPSK) Modulation Type 802.11 a/g/n/ac: (OFDM, 256QAAM, 64QAM, 16QAM, QPSK, BPSK) 2.4GHz ≤ 40MHz Wireless Band 5.19GHz ≤ 80MHz 5.8GHz ≤ 80MHz Copyright © iRay Technology Co., Ltd. -
Page 35: Intended Information Flow
Changes to IT Network include: Changes in IT network configuration Connection of additional items to IT network Disconnecting items from IT network Update of equipment connected to IT network Copyright © iRay Technology Co., Ltd. -
Page 36: Technical Specifications
Effective area (H x V) 424.8mm × 425.4mm Greyscales 16 bits Mars1717XF-GSI’s active area and defect Mars1717XF-CSI defect calculation area is calculation area is 2832 × 2836 and TFT 2826 × 2818, the active area is 2336 × 2836, TFT module size is 2848 ×... -
Page 37: Power Adapter
LXCP120-0240500(C005) Input 100~240V 50Hz/60Hz AC input Output 24V single output, 120W Dimensions (W×H×D) 172mm×72mm×42mm Battery Charger Item Specification Model Charger-KX Simultaneous Charging 3 battery packs Full Charging Time 2.5 hours Full Charging Time ≤4hours Copyright © iRay Technology Co., Ltd. -
Page 38: Battery Pack
The device must be transported, stored, and operated in permissible environmental conditions, as stated below: Item Operation Storage & Transportation Ambient temperature 5~30℃ -20℃~50℃ Relative humidity 10%~80% RH (non-condensing) 10%~90% RH (non-condensing) Atmospheric pressure 700~1060mbar 700~1060mbar Altitude Max. altitude 3000m Copyright © iRay Technology Co., Ltd. -
Page 39: Service Information
Verify that the power cord is reliably connected to the power socket of the detector Make sure there is no short circuit at the battery connection pins Battery Make sure the battery is not expanding Copyright © iRay Technology Co., Ltd. -
Page 40: Monthly And Yearly Inspection
① Name and model of product; ②Product SN; ③ Description of product failure as detailed as possible. Customer Service CS Dept.： Service Office of iRay Technology Co. Ltd. Address： Building 45, No. 1000, Jinhai RD., Pudong New Area, 201206 Shanghai China Telephone：... -
Page 41: Manufacturer Information
In den Dorfwiesen 14, 71720 Oberstenfeld Germany Telephone: +49-7062-977 88 00 Fax: +49-7062-976 0571 Email: S.feng@iraygroup.com Website： www.iraygroup.com European Importer Company: FUJIFILM Europe B.V. Address: Oudenstaart 1, 5047 TK Tilburg, the Netherlands Website: https://www.fujifilm.eu/eu/manufacturing-europe Copyright © iRay Technology Co., Ltd. - Page 42 All the information contained in this manual remains the confidential and proprietary property of iRay Technology Co., Ltd. Any reproduction, disclo- sure, or use in whole or in part is strictly prohibited, except as may be specif- ically authorized by prior written agreement or permission of iRay.
