FUFU & GAGA KF390036-01 Manual

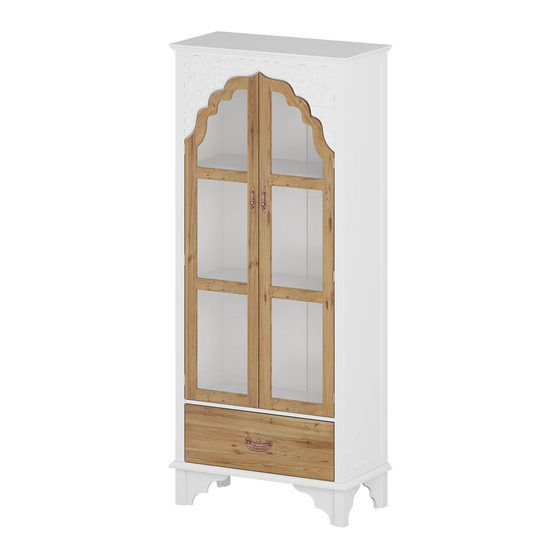

Display cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Display Cabinet
Version:10/27/2022
1/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KF390036-01 and is the answer not in the manual?

Questions and answers

Related Manuals for FUFU & GAGA KF390036-01

Summary of Contents for FUFU & GAGA KF390036-01

  • Page 1 Display Cabinet Version:10/27/2022 1/21...
  • Page 2 IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...

  • Page 3: Table Of Contents

    Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size A x 57 B x 62 C x 57 D x 4 E x 6 3 x 12 mm 6 x 35 mm 15 x 12 mm...
  • Page 4 4/21...
  • Page 5 A x 12 C x 6 15 x 12 mm 6 x 35 mm Screw eccentric rod(A) into board 2, 20, 30 and 21 with a screwdriver as shown. Attach board 18 to board 21, turn cam lock(C) clockwise to tighten as shown. Attach board 18 and 32 to Attach board 19 to board 30, turn cam board 20, board 19 and 31 to...

  • Page 6: X 35 Mm

    A x 28 6 x 35 mm Screw eccentric rod(A) into board 11, 12, 1, 2, 3 and 10 with a screwdriver as shown. 6/21...

  • Page 7: X 12 Mm

    C x 4 15 x 12 mm Attach board 13 to board 11, board 14 to board 12, add cam lock(C) into board 13,14 and turn clockwise to tighten as shown. x 18 E x 6 3 x 12 mm Fix hinge(E) to board 11 and 12 with screw(B) as shown.
  • Page 8 F x 4 3 x 12 mm Fix part(F) to board 10 and 17 with screw(B) as shown. A x 12 6 x 35 mm Screw eccentric rod(A) into board 4 and 5 with a screwdriver as shown. 8/21...

  • Page 9: C X 6

    C x 6 15 x 12 mm Attach board 10, 8 and 17 to board 5, add cam lock(C) into board 10,8,17 and turn clockwise to tighten as shown. C x 6 15 x 12 mm Attach board 4 to board 10, 8 and 17, add cam lock(C) into board 10,8,17 and turn clockwise to tighten as shown.
  • Page 10 C x 10 15 x 12 mm Attach board 11 and 12 to board 4 and 5, add cam lock(C) into board 4,5 and turn clockwise to tighten as shown. Insert back board 9 along grooves as shown. 10/21...
  • Page 11 15 x 12 mm Attach board 2 to board 4 and 5, add cam lock(C) into board 4,5 and turn clockwise to tighten as shown. C x 1 15 x 12 mm Flip the cabinet to back, attach board 6 to board 10, add cam lock(C) into board 6 and turn clockwise to tighten as shown.

  • Page 12: J X 2

    J x 2 3.5 x 25 mm Insert back board 7 along grooves as shown. Fix board 6 with board 8 using screw(J) as shown. J x 3 3.5 x 25 mm Fix board 3 with board 1 using screw(J) as shown. 12/21...
  • Page 13 C x 9 15 x 12 mm Attach board 1 to the top, add cam lock(C) into board 4,6,5,13,14 and turn clockwise to tighten as shown. 13/21...
  • Page 14 J x 4 3.5 x 25 mm Fix board 22 to board 4, board 23 to board 5 with screw(J) as shown. B x 4 3 x 12 mm Fix slide rail(CL) to board 22 with screw(B) as shown. Fix slide rail(CR) to board 23 with screw(B) as shown.

  • Page 15: O X 1

    H x 2 O x 1 J x 5 A x 5 4 x 23 mm 6 x 35 mm 3.5 x 25 mm Screw eccentric rod(A) into board 26 as shown. Fix handle(O) with screw(H) as shown. Fix board 29 to board 24 with screw(J) as shown. Fix board 27 and 28 to board 24 with screw(J) as shown.

  • Page 16: T X 1

    C x 5 B x 4 S x 1 T x 1 15 x 12 mm 3 x 12 mm Insert board 25 along grooves as shown. Attach board 26 to board 27, 29 and 28, turn cam lock(C) clockwise to tighten as shown.

  • Page 17: P X 4

    x 20 P x 4 3 x 12 mm 4 x 18 mm Fix handle(N) to board 15 and 16 with screw(P) as shown. Fix part(G) to board 15 and 16 with screw(B) as shown. Attach board 15 and 16 to hinge(E) and fix with screw(B) as shown.
  • Page 18 18/21...
  • Page 19 3 x 12 mm Insert buckle(M) into back slots and fix with screw(B) as shown. 19/21...
  • Page 20 L x 2 Install anti-tipping device as shown. WALL WALL 20/20...

  • Page 21: Warranty Claims

    WARRANTY WARRANTY CLAIMS •There is a 30-day warranty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part.

  • Page 22: After-Sales Contact

    RETURNS CHANGED YOUR MIND AND NEED TO RETURN YOU ITEM? PLEASE FOLLOW THE BELOW INSTRUCTIONS: •If you have purchased and have simply changed your mind, follow the retailer’s instructions for returns. DEFECTIVE ITEMS •If your item is defective in any way, i.e. it doesn’t work but you can’t identify why, in the first instance, please call us.
