FUFU & GAGA KF210215 Manual

Vanity
Hide thumbs

Advertisement

Table of Contents

Vanity
1/28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KF210215 and is the answer not in the manual?

Questions and answers

Related Manuals for FUFU & GAGA KF210215

Summary of Contents for FUFU & GAGA KF210215

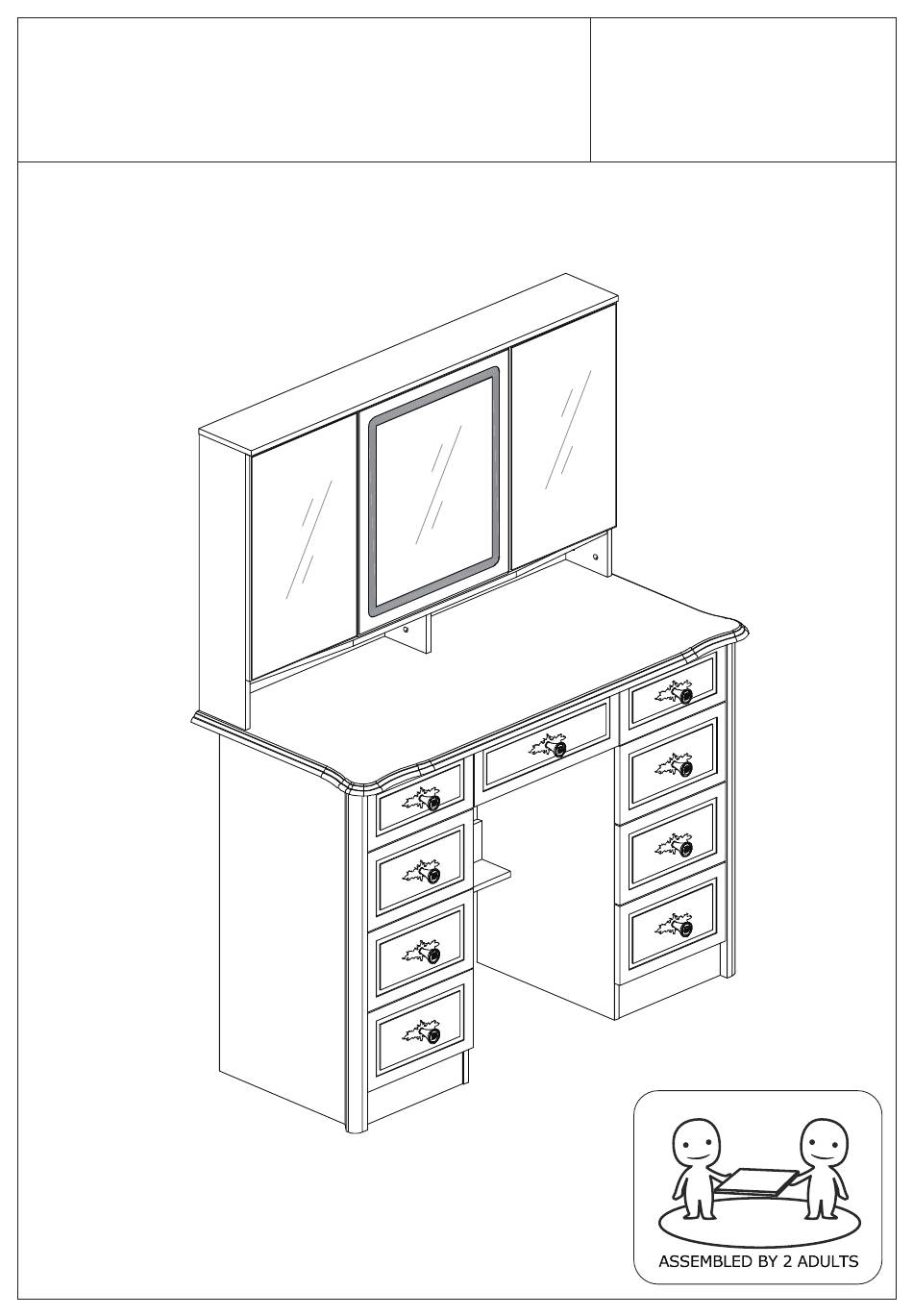

  • Page 1 Vanity 1/28...
  • Page 2 IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...

  • Page 3: Table Of Contents

    Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size A x 98 B x 98 C x 12 D x 12 12 x 10 mm 7 x 40 mm 10 x 10 mm M4 x 45 mm...
  • Page 4 ALWAYS install tipover restraint provided. NEVER put a TV on this product. NEVER allow children to stand,climb or hang on drawers,doors,or shelves. NEVER open more than one drawer at a time. Place heaviest items in the lowest drawers. This is a permanent label. Do not remove! 4/28...
  • Page 5 K x 8 Knock foot peg(K) into bottom of board 2, 3, 4 and 5 as shown. B x 12 7 x 40 mm Insert quickfit screw(B) into board 2 and 4 with a screwdriver as shown. 5/28...

  • Page 6: A X 12

    A x 12 12 x 10 mm 180° Connect board 2 and 4 with board 10, 11 and 12, add cam lock(A) into board 10,11,12 and turn clockwise to tighten as shown. B x 12 7 x 40 mm Insert quickfit screw(B) into board 3 and 5 with a screwdriver as shown.
  • Page 7 A x 12 12 x 10 mm 180° Connect board 3 and 5 with board 10, 11 and 12, add cam lock(A) into board 10,11,12 and turn clockwise to tighten as shown. I x 1 M3.5 x 35 mm Fix board 7 to baord 9 with screw(I) as shown. 7/28...
  • Page 8 C x 6 D x 6 10 x 10 mm M4 x 45 mm Insert nut(C) into board 6, 8, 7 and 9 at first. Connect board 6, 8, 7 and 9 with board 4, fix using screw(D) as shown. C x 6 D x 6 10 x 10 mm...
  • Page 9 G x 16 L x 8 M3.5 x 12 mm 14’’ Fix slide rail(L) to board 3 and 4 with screw(G) as shown. G x 2 L x 1 M3.5 x 12 mm 14’’ Fix slide rail(L) to board 5 with screw(G) as shown.
  • Page 10 G x 16 L x 8 M3.5 x 12 mm 14’’ Fix slide rail(L) to board 2 and 5 with screw(G) as shown. G x 2 L x 1 M3.5 x 12 mm 14’’ Fix slide rail(L) to board 4 with screw(G) as shown.
  • Page 11 Insert back board 13 along grooves as shown. B x 8 7 x 40 mm Insert quickfit screw(B) into board 1 with a screwdriver as shown. 11/28...
  • Page 12 B x 7 A x 8 12 x 10 mm 7 x 40 mm Cover board 1 to the component, add cam lock(A) into board 2,4,5,3 and turn clockwise to tighten as shown. B x 6 7 x 40 mm Insert quickfit screw(B) into board 27 and 28 with a screwdriver as shown.
  • Page 13 A x 6 12 x 10 mm Connect board 27 and 28 with board 31 and 32, add cam lock(A) into board 31, 32 and turn clockwise to tighten as shown. B x 4 7 x 40 mm Insert quickfit screw(B) into board 31 as shown.
  • Page 14 A x 4 12 x 10 mm Attach board 29 to board 31, add cam lock(A) into board 29 and turn clockwise to tighten as shown. B x 1 7 x 40 mm Insert quickfit screw(B) into board 31 as shown. 14/28...
  • Page 15 A x 1 I x 1 12 x 10 mm M3.5 x 35 mm Attach board 33 to board 31, add cam lock(A) and turn clockwise to tighten as shown. Fix board 33 with board 32 using screw(I) as shown. B x 4 7 x 40 mm Insert quickfit screw(B) into board 34...
  • Page 16 A x 4 12 x 10 mm Attach mirror board 34 to board 29, add cam lock(A) into board 29 and turn clockwise to tighten as shown. M x 8 Insert layer pin(M) into board 27, 29 nad 28 as shown. 16/28...
  • Page 17 A x 7 12 x 10 mm Attach the component to board 1, add cam lock(A) and turn clockwise to tighten as shown. Insert back board 36 along grooves as shown. 17/28...
  • Page 18 Place shelf 30 in as shown. J x 4 5 x 16 mm Inser part(J) into board 35. 18/28...
  • Page 19 Align the door shaft hole, assemble board 35 as shown. B x 8 7 x 40 mm Insert quickfit screw(B) into board 26 as shown. 19/28...

  • Page 20: E X 1

    A x 8 12 x 10 mm Attach board 26 to the top, align the door shaft hole to assemble. Add cam lock(A) and turn clockwise to tighten as shown. B x 4 E x 1 F x 1 7 x 40 mm M4 x 1 mm Insert quickfit screw(B) into board 14 as shown.
  • Page 21 A x 4 12 x 10 mm Attach board 14 to board 19 and 20, add cam lock(A) and turn clockwise to tighten as shown. Insert board 37 along grooves as shown. I x 4 M3.5 x 35 mm Fix board 23 to board 19 and 20 with screw(I) as shown. 21/28...
  • Page 22 B x 4 E x 1 F x 1 7 x 40 mm M4 x 1 mm Insert quickfit screw(B) into board 15 as shown. Fix knob(E) with screw(F). A x 4 12 x 10 mm Attach board 15 to board 19 and 20, add cam lock(A) and turn clockwise to tighten as shown.
  • Page 23 I x 4 M3.5 x 35 mm Fix board 22 to board 19 and 20 with screw(I) as shown. F x 1 B x 4 E x 1 7 x 40 mm M4 x 1 mm Insert quickfit screw(B) into board 16 as shown.
  • Page 24 A x 4 12 x 10 mm Attach board 16 to board 19 and 20, add cam lock(A) and turn clockwise to tighten as shown. Insert board 38 along grooves as shown. I x 4 M3.5 x 35 mm Fix board 24 to board 19 and 20 with screw(I) as shown. 24/28...
  • Page 25 F x 3 B x 12 E x 3 7 x 40 mm M4 x 1 mm Insert quickfit screw(B) into board 17 as shown. Fix knob(E) with screw(F). A x 12 12 x 10 mm Attach board 17 to board 21 and 22, add cam lock(A) and turn clockwise to tighten as shown.
  • Page 26 I x 12 M3.5 x 35 mm Fix board 25 to board 21 and 22 with screw(I) as shown. F x 3 B x 12 E x 3 7 x 40 mm M4 x 1 mm Insert quickfit screw(B) into board 18 as shown.
  • Page 27 A x 12 12 x 10 mm Attach board 18 to board 21 and 22, add cam lock(A) and turn clockwise to tighten as shown. Insert board 38 along grooves as shown. I x 12 M3.5 x 35 mm Fix board 25 to board 21 and 22 with screw(I) as shown. 27/28...

  • Page 28: G X 36

    L x 9 G x 36 14’’ M3.5 x 12 mm Fix runner(L) to all drawers with screw(G) as shown. Align rails, slide all drawers into corresponding positions. 28/28...

  • Page 29: Warranty Claims

    WARRANTY WARRANTY CLAIMS •There is a 30-day warranty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part.
  • Page 30 RETURNS CHANGED YOUR MIND AND NEED TO RETURN YOU ITEM? PLEASE FOLLOW THE BELOW INSTRUCTIONS: •If you have purchased and have simply changed your mind, follow the retailer’s instructions for returns. DEFECTIVE ITEMS •If your item is defective in any way, i.e. it doesn’t work but you can’t identify why, in the first instance, please call us.
