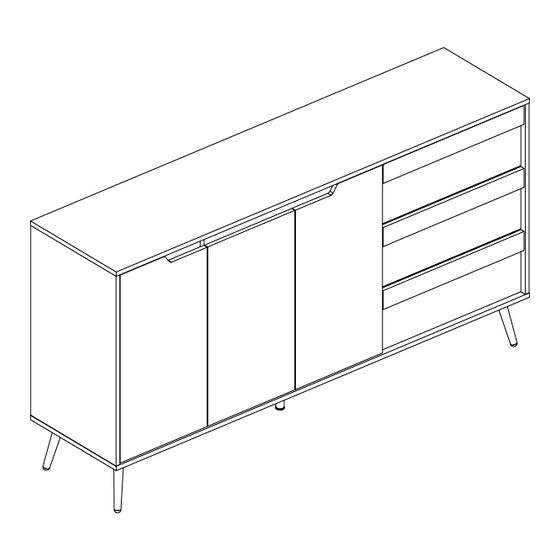

- Page 1 Sideboard Version:10/11/2022 1/24...
- Page 2 IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...
- Page 3 Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size CL x 3 DL x 3 DR x 3 CR x 3 A x 36 300mm 300mm 300mm...
- Page 4 4/24...
- Page 5 Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size 5/24...
- Page 6 Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size 6/24...
- Page 7 A x 6 D x 1 E x 12 CL x 3 CR x 3 6x35mm 3.5x14mm 300mm 300mm Fix slide rails(CL) to board 5 with screws(E) as shown. Insert quickfit screw(A) into board 5 as shown. Do not use an electric screwdriver, do not use force during the rotation of the accessories, other- wise it may cause the board to crack.
- Page 8 B x 3 D x 1 15x10mm 7x30mm Insert wooden dowel(C) into board 11 and 12 as shown, then attach the board 5 to them, insert cam locks(B) into corresponding holes in them, turn cam locks clockwise to tighten as shown. A x 3 D x 1 6x35mm...
- Page 9 B x 2 D x 1 15x10mm 7x30mm Insert wooden dowel(C) into board 8 as shown, then attach board 8 to board 5, insert cam lock (B) into board 8, turn cam locks clockwise to tighten as shown. A x 7 D x 1 6x35mm Insert quickfit screw(A) into boards 3 and 4 as...
- Page 10 B x 2 C x 2 D x 1 15x10mm 7x30mm Insert wooden dowel(C) into board 8 as shown, then attach board 4 to board 8, insert cam locks (B) into the board 8, turn cam locks clockwise to tighten as shown. 10/24...
- Page 11 B x 3 D x 1 15x10mm 7x30mm Insert wooden dowel(C) into board 7 as shown, then attach board 7 to the board 4 , insert cam lock(B) into board 7, turn cam locks clockwise to tighten as shown. Same as above steps to attach board 10 to board 5 using wooden dowel(C) and cam lock(B).
- Page 12 B x 3 C x 3 D x 1 15x10mm 7x30mm Insert wooden dowel(C) into board 7 and 10 as shown, then attach board 3 to them, Insert cam lock(B) into the corresponding holes in them, turn cam locks clockwise to tighten as shown.
- Page 13 B x 8 C x 8 D x 1 15x10mm 7x30mm Slide board 14 and 16 into available slots as shown. Insert wooden dowel(C) into the corresponding holes of the boards 3,4,5 and 6 as shown, then attach board 1 to them.
- Page 14 C x 8 D x 1 F x 8 7x30mm 4x30mm Turn the assembled unit upside down, slide boards 13,15 and 17 into available slots as shown. Insert wooden dowels (C) into the corresponding holes of boards 3,4,5 and 6, then attach board 2 to them using screws (F) as shown.
- Page 15 D x 1 G x 20 4x16mm Fix legs 26 and leg support 27 to board 2 with screw(G) as shown. 15/24...
- Page 16 D x 1 G x 8 H x 4 4x16mm Fix hinge(H) to door 18 and 19 with screw(G) as shown. Do not use force during the rotation of the accessories, otherwise it may cause the board to crack. D x 1 J x 2 G x 4 4x16mm...
- Page 17 D x 1 G x 16 4x16mm Attach door 18 to board 3 by fixing hinges with screws (G) as shown. Attach Door 19 to board 4 by fixing hinges with screws (G) as shown. Do not use force during the rotation of the accessories, otherwise it may cause the board to crack.
- Page 18 D x 1 G x 8 4x16mm Attach door 20 to board 5 by fixing hinges(J) with screw(G) as shown. Do not use force during the rotation of the accessories, otherwise it may cause the board to crack. 18/24...
- Page 19 A x 12 B x 12 D x 1 E x 12 F x 12 DL x 3 DR x 3 6x35mm 15x10mm 3.5x14mm 4x30mm 300mm 300mm 3pcs DRAWER QTY: Attach boards 22 and 23 to board 24 using screw(F) asshown.
- Page 20 Align rails, slide all drawers. D x 1 K x 2 4x16mm Fix corner braces of the wall attachment(K) to board 1 with screws as shown. 20/24...
- Page 21 K x 2 4x16mm 4x40mm Overturned furniture can cause serious or fatal crush injuries. To prevent tipping over , be sure to use the wall attachment, Please read and follow each step of the instructions carefully as below. 1. According the position of each safety strap where you want amount it to make a mark using a pencil as shown.
- Page 22 Adjust hinges to make the doors alignment. 22/24...
-
Page 23: Warranty Claims
WARRANTY WARRANTY CLAIMS •There is a 30-day warranty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part. - Page 24 RETURNS CHANGED YOUR MIND AND NEED TO RETURN YOU ITEM? PLEASE FOLLOW THE BELOW INSTRUCTIONS: •If you have purchased and have simply changed your mind, follow the retailer’s instructions for returns. DEFECTIVE ITEMS •If your item is defective in any way, i.e. it doesn’t work but you can’t identify why, in the first instance, please call us.
