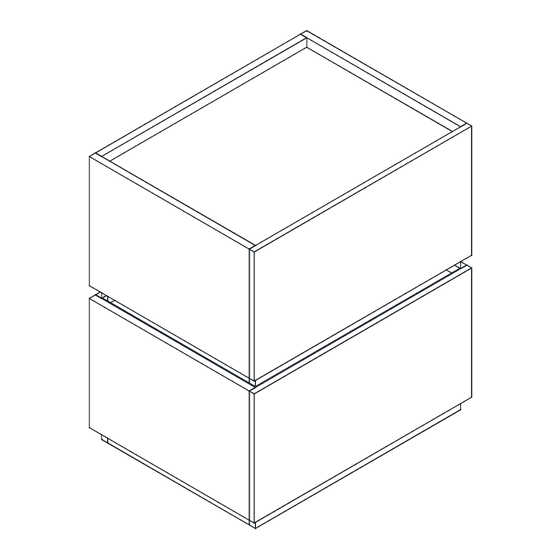

- Page 1 Cabinet KF1801 Version:03/23/2023 1/21...
- Page 2 IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...
- Page 3 Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size A x 48 +4 B x 48 +4 C x 32 +3 D x 2 5 x 31 mm 15 x 11 mm 8 x 30 mm...
- Page 4 ALWAYS install tipover restraint provided. NEVER put a TV on this product. NEVER allow children to stand,climb or hang on drawers,doors,or shelves. NEVER open more than one drawer at a time. Place heaviest items in the lowest drawers. This is a permanent label. Do not remove! 4/21...
- Page 5 A x 16 5 x 31 mm Insert quickfit screw(A) into plate 8, 10 and 13 with a screwdriver as shown. 5/21...
- Page 6 B x 8 15 x 11 mm Attach plate 10 and 13 to plate 11, turn cam lock(B) in plate 11 clockwise to tighten as shown. 180° 6/21...
- Page 7 B x 8 15 x 11 mm Slide plate 12 along grooves as shown. Attach plate 8 to plate 10 and 13, turn cam lock(B) in plate 10,13 clockwise to tighten as shown. 180° 7/21...
- Page 8 E x 8 G x 2 3 x 12 mm D-DL D-DR Fix runner(DL) and (DR) to plate 10 and 13 with screw(E) as shown. 8/21...
- Page 9 A x 8 5 x 31 mm Insert quickfit screw(A) into plate 5 and 6 with a screwdriver as shown. 9/21...
- Page 10 B x 8 C x 8 15 x 11 mm 8 x 30 mm Insert wooden dowel(C) into plate 7 at first, then connect with plate 5 and 6, turn cam lock(B) in plate 7 clockwise to tighten as shown. 10/21...
- Page 11 A x 20 5 x 31 mm Insert quickfit screw(A) into plate 2 and 3 with a screwdriver as shown. 11/21...
- Page 12 E x 8 G x 2 3 x 12 mm Fix slide rail(CL) and (CR) to plate 2 and 3 with screw(E) as shown. G-CR G-CL 12/21...
- Page 13 A x 4 5 x 31 mm Insert quickfit screw(A) into plate 4 with a screwdriver as shown. 13/21...
- Page 14 B x 4 C x 4 15 x 11 mm 8 x 30 mm Insert wooden dowel(C) into plate 4 at first, then connect with plate 1, turn cam lock(B) in plate 1 clockwise to tighten as shown. 14/21...
- Page 15 B x 8 C x 8 15 x 11 mm 8 x 30 mm Insert wooden dowel(C) into plate 3 at first, then connect with plate 1 and 4, turn cam lock(B) in plate 1,4 clockwise to tighten as shown. 180°...
- Page 16 B x 2 C x 2 F x 4 15 x 11 mm 8 x 30 mm 6 x 20 mm Insert wooden dowel(C) into plate 3 at first, then attach the component(assembled in step 6). Put cam lock(B) into plate 6 and turn clockwise to tighten.
- Page 17 F x 4 6 x 20 mm Fix plate 5 to plate 4 with screw(F) as shown. 180° 17/21...
- Page 18 B x 10 C x 10 F x 4 15 x 11 mm 8 x 30 mm 6 x 20 mm Insert wooden dowel(C) into plate 1,4 and 6 at first, then cover plate 2. Put cam lock(B) into plate 1,4 and 6 and turn clockwise to tighten.
- Page 19 19/21...
- Page 20 D x 2 D x 4 H x 48 3.5 x 14 mm Fix the two component using part(D) as shown. 20/21...
- Page 21 21/21...
-
Page 22: Warranty Claims
WARRANTY WARRANTY CLAIMS •There is a 30-day warranty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part. - Page 23 RETURNS CHANGED YOUR MIND AND NEED TO RETURN YOU ITEM? PLEASE FOLLOW THE BELOW INSTRUCTIONS: •If you have purchased and have simply changed your mind, follow the retailer’s instructions for returns. DEFECTIVE ITEMS •If your item is defective in any way, i.e. it doesn’t work but you can’t identify why, in the first instance, please call us.
