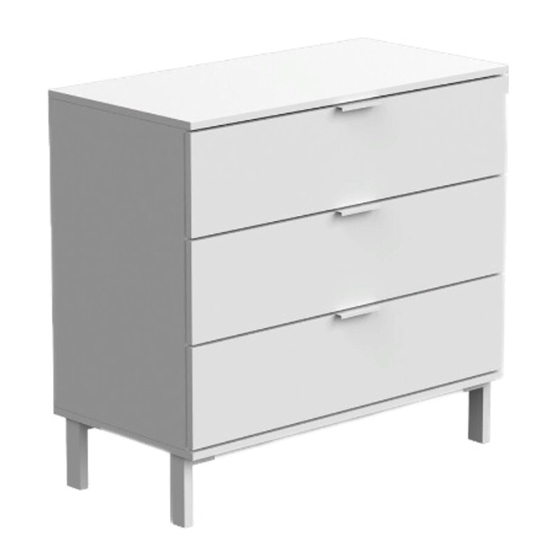

- Page 1 Chest Version:07/01/2022 1/13...
- Page 2 IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...
- Page 3 Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size CR x 3 F x 10 C x 24 D x 29 E x 29 15 x 9 mm 8 x 30 mm 3 x 12 mm...
- Page 4 4/13...
- Page 5 C x 12 D x 10 CR x 3 CL x 3 3 x 12 mm 6 x 35 mm Fix runner CL&CR to panel 2 and 3 as shown. Insert quickfit screw D into panel 2 and 3. Please pay attention to the holes where the accessories are inserted and don't use an electric screwdriver.
- Page 6 E x 10 F x 2 15 x 9 mm 6 x 30 mm Attach panel 4, 5 and 15 to panel 3 with wooden dowel F, then turn cam locks E clockwise to tighten as shown. Attach panel 2 with wooden dowel F and turn cam lock E clockwise to tighten as shown.
- Page 7 F x 4 6 x 30 mm Insert wooden dowels F to the corresponding holes in panel 2&3 slightly. Slide panel 6 to the available slots in panel 2&3. D x 4 6 x 35 mm Insert quickfit screw D into panel 1. Please pay attention to the holes where the accessories are inserted don't use an electric screwdriver or use force to rotate,...
- Page 8 G x 2 E x 4 15 x 9 mm 4 x 35 mm Cover panel 1 to panel 2 and 3, turn cam lock E clockwise to tighten as shown. And panel 1 needs to be attached to panel 15 with screw G as shown. Please note don't use an electric screwdriver or use force to rotate, may cause crack.
- Page 9 G x 4 4 x 35 mm Attach panel 7 to panel 2&3 using screw G. Please note don't use an electric screwdriver or use force to rotate, may cause crack. H x 6 L x 1 6 x 30 mm Fix legs 8 to panel 7 using nail H as shown.
- Page 10 G x 15 4 x 35 mm Attach panel 10 and 11 to panel 12 using screw G. Connect panel 13 to panel 12 using screw G, as shown. Slide panel 14 to available slots in panel 10&11. 10/13...
- Page 11 D x 15 J x 6 K x 3 6 x 35 mm 3.5 x 14 mm Insert quickfit screw D into panel 9. Fix handle K to panel 9 using screw J. Please note don't use an electric screwdriver or use force to rotate, may cause crack.
- Page 12 E x 15 15 x 9 mm Attach panel 9 to the assembled component, then turn cam locks E clockwise to tighten as shown. C x 12 DR x 3 DL x 3 3 x 12 mm Fix runner DR&DL to panel 11&10 using screw C. Please pay attention to the holes where the accessories are inserted.
- Page 13 G x 1 N x 1 M x 1 P x 1 4 x 35 mm 4 x 14 mm 6 x 30 mm If you want to stabilize the unit, you could choose to install anti-tipping device as shown. 13/13...
-
Page 14: Warranty Claims
WARRANTY WARRANTY CLAIMS •There is a 30-day warranty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part. - Page 15 RETURNS CHANGED YOUR MIND AND NEED TO RETURN YOU ITEM? PLEASE FOLLOW THE BELOW INSTRUCTIONS: •If you have purchased and have simply changed your mind, follow the retailer’s instructions for returns. DEFECTIVE ITEMS •If your item is defective in any way, i.e. it doesn’t work but you can’t identify why, in the first instance, please call us.
