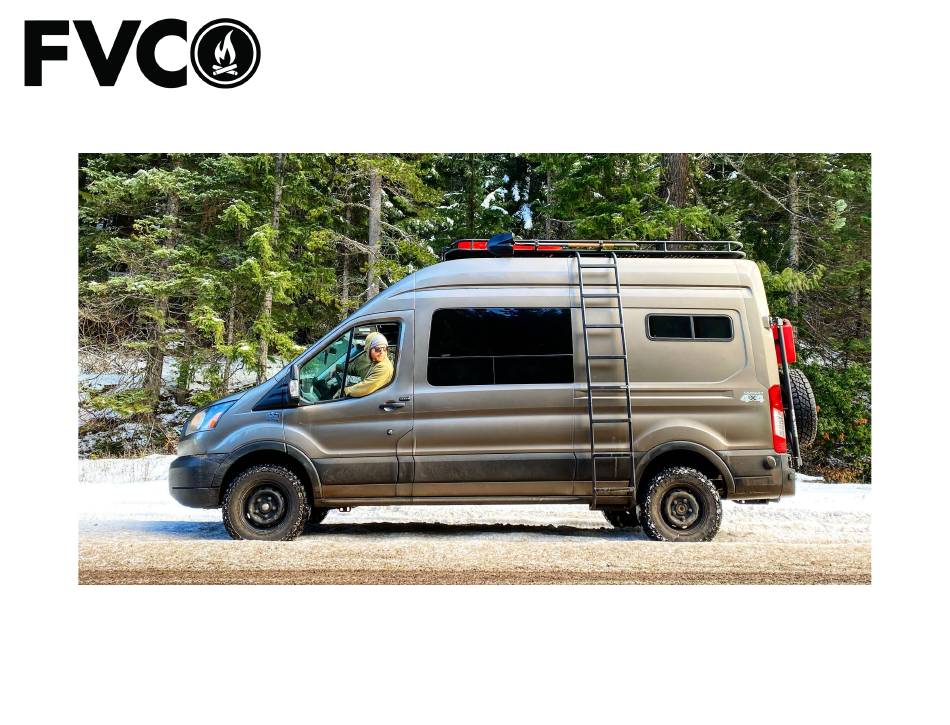

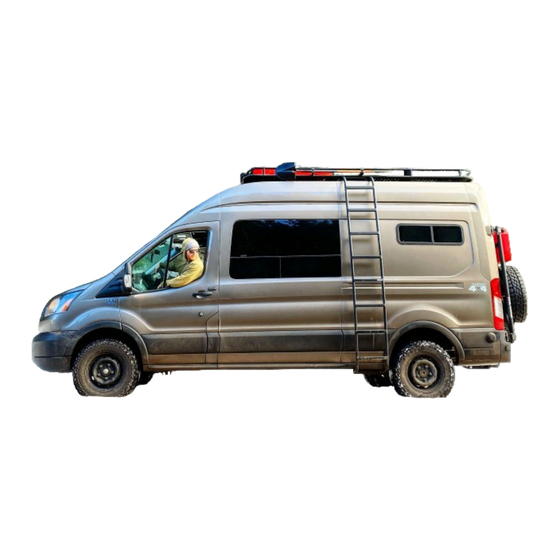

- Page 1 Installation Guide Transit Side Ladder HR TR0201B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing flatline van co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW SIDE LADDER? HERE ARE A FEW THINGS TO DO TOOLS BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
- Page 4 PACKAGE CONTENTS COUPLER 3/8 FLAT WASHER MOUNT PLATE LADDER TOP LADDER BOTTOM QTY-2 QTY-6 QTY-1 QTY-1 QTY-1 3/8-16 X 1” BUTTON HEAD 3/8-16 NYLOCK 1/4 SELF DRILLING 1/4-20 FLANGE HEAD SCREW SCREW QTY-6 SCREW QTY-8 QTY-6 QTY-7 INSTALLATION GUIDE STICKER PACK QTY-1 QTY-1 FLATLINE VAN CO •...
- Page 5 FIGURE 1 LET’S GET STARTED! PLACE THE LADDER HALVES FRONT SIDE DOWN, INSERT THE COUPLERS INTO ONE HALF (SEE FIGURE 1), AND TIGHTEN DOWN USING THE 1/4-20 SCREWS. SLIDE THE OTHER LADDER HALF ONTO THE COUPLERS AND TIGHTEN DOWN. NOTE- IF DESIRED YOU CAN USE BLUE LOCTITE ON THE SCREWS. FIGURE 2 FLATLINE VAN CO •...
- Page 6 NEXT, LOOSELY BOLT THE LADDER TO THE LADDER MOUNT SLOTS ON THE SIDE OF YOUR LOW PRO ROOF RACK USING TWO (2) EACH OF THE 3/8-16 BOLTS, 3/8 FLAT WASHER, AND 3/8 NYLOCK. YOU MAY NEED TO REMOVE TWO SETS OF FASTENERS ON THE JOINING PLATE OF YOUR ROOF RACK AS THEY SIT BEHIND THE LADDER PLATE ON SOME OF OUR RACKS.
- Page 7 MOUNT PLATE TAKE THE MOUNT PLATE (SEE RIGHT) AND LOOSELY ATTACH IT TO THE BOTTOM OF THE LADDER USING THE 3/8-16 X 1” SCREWS, 3/8 FLAT WASHERS, AND 3/8-16 NYLOCK NUTS. NOTE- MAKE SURE THAT THE LADDER IS STRAIGHT UP AND DOWN. NEXT, TAKE THE REMAINING 3/8 HARDWARE AND ATTACH IT THROUGH THE WINGS OF THE MOUNT PLATE AND THE LOWER BODY SUPPORT OF YOUR VAN.
- Page 8 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
