Altronix TROVE PLUS Mercury T2M7CK1 Installation Manual page 8

2.00" (50.8mm)
1.25"
(31.8mm)
1.5"
(38.1mm)
6.25" (158.8mm)
1.25" (31.8mm)
1.00" (25.4mm)
2.00" (50.8mm)
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IIT2M7CK Kit Series
- 8 -

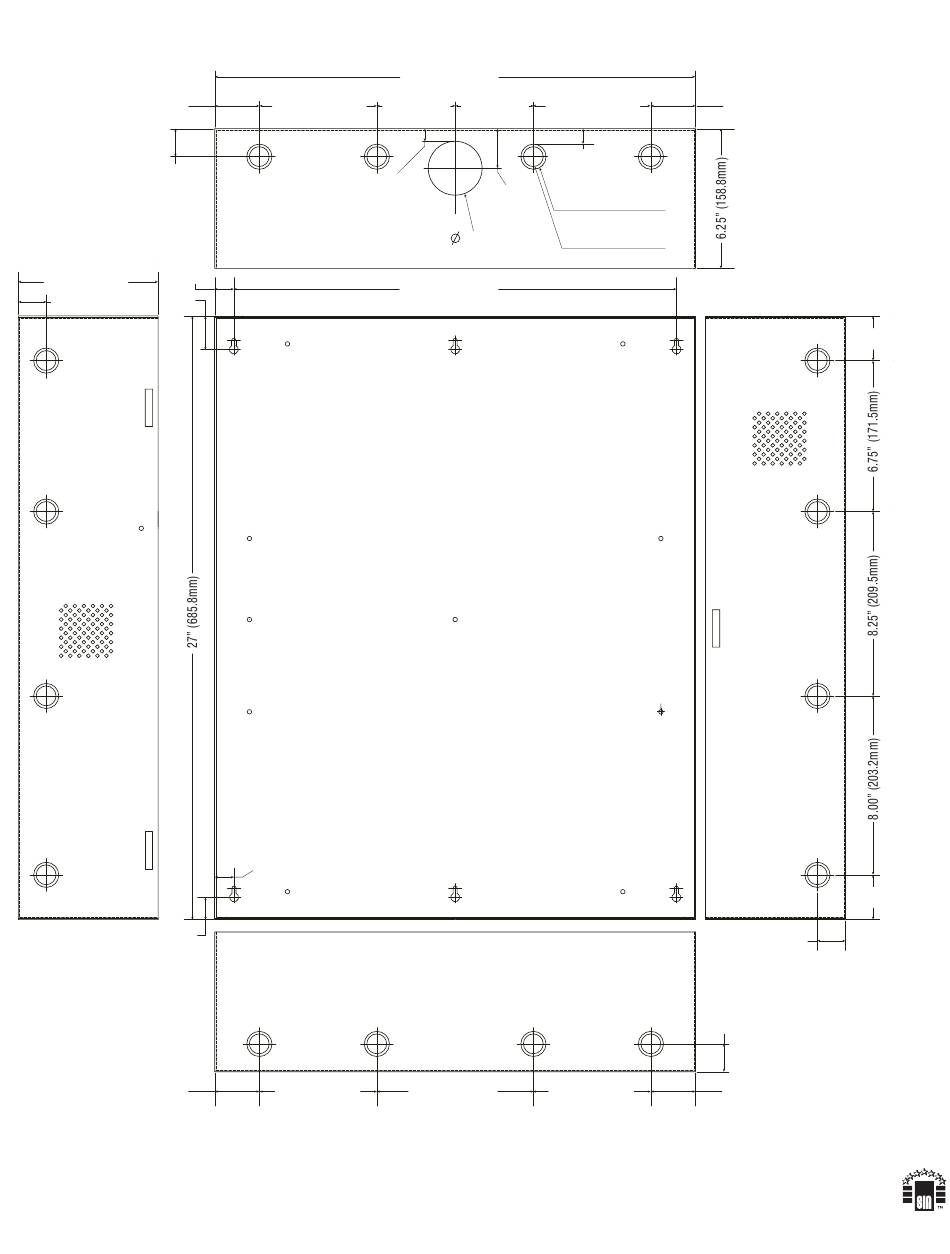

Trove2 Enclosure Dimensions (H x W x D approximate):
27.25" x 21.5" x 6.5" (692.2mm x 552.5mm x 165.1mm)
21.50" (546.1mm)
5.25" (133.35mm) 3.5"(88.9mm) 3.5"(88.9mm)
0.5625" (14.3mm)
0.85" (21.6mm)
5.25" (133.4mm)
5.25" (133.35mm)
0.685" (17.4mm)
Knockouts
1.77"
1.125" (28.3mm)
(45mm)
2.415" (61.3mm) 0.885" (22.5mm)
19.80" (502.9mm)
7.00" (177.8mm) 5.25" (133.4mm)
G10W
2.00" (50.8mm)
2.00" (50.8mm)
2.00" (50.8mm)
1.25" (31.8mm)
1.25" (31.8mm)
2.00" (50.8mm)
T2M7CK Kit Installation Guide
