Altronix TROVE PLUS Mercury T2M7CK1 Installation Manual

Access & Power Integration
Altronix/Mercury Wired Kits
Models Include:
T2M7CK1
8 Door Kit with Fused Outputs
Accommodates one (1) Intelligent Dual Reader Controller and
three (3) Dual Reader Interface Modules.
T2M7CK2
6 Door Kit with Fused Outputs
Accommodates one (1) Intelligent Controller and three (3) Dual
Reader Interface Module.
T2M7CK3
8 Door Kit with Fused Outputs
Accommodates up to four (4) Dual Reader Interface Modules.

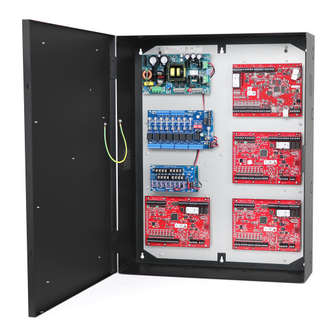

Each fully assembled kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) ACMS8 - Dual Input/Output Fuse Protected
Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8 - Dual Input/Output Fuse Protected
Power Distribution Module
- One (1) Rocker Switch Bracket with One (1) Rocker Switch
(Not evaluated by UL)
- Wire harnesses and management
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. T2M7CK_071023
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
T2M7CK1D
8 Door Kit with PTC Outputs
Accommodates one (1) Intelligent Dual Reader Controller and
three (3) Dual Reader Interface Modules.
T2M7CK2D
6 Door Kit with PTC Outputs
Accommodates one (1) Intelligent Controller and three (3) Dual
Reader Interface Module.
T2M7CK3D
8 Door Kit with PTC Outputs
Accommodates up to four (4) Dual Reader Interface Modules.
Each fully assembled kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) ACMS8CB - Dual Input/Output PTC Protected
Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8CB - Dual Input/Output PTC Protected
Power Distribution Module
- One (1) Rocker Switch Bracket with One (1) Rocker Switch
(Not evaluated by UL)
- Wire harnesses and management
