LB management
Universal automatic switch 1.1 m, Universal automatic switch 2.2 m
Universal automatic switch 1.1 m
Art. no.: ..17181..
Universal automatic switch 2.2 m
Art. no.: ..17281..
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage. The load
is not electrically isolated from the mains even when the device is switched off.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end customer.
2

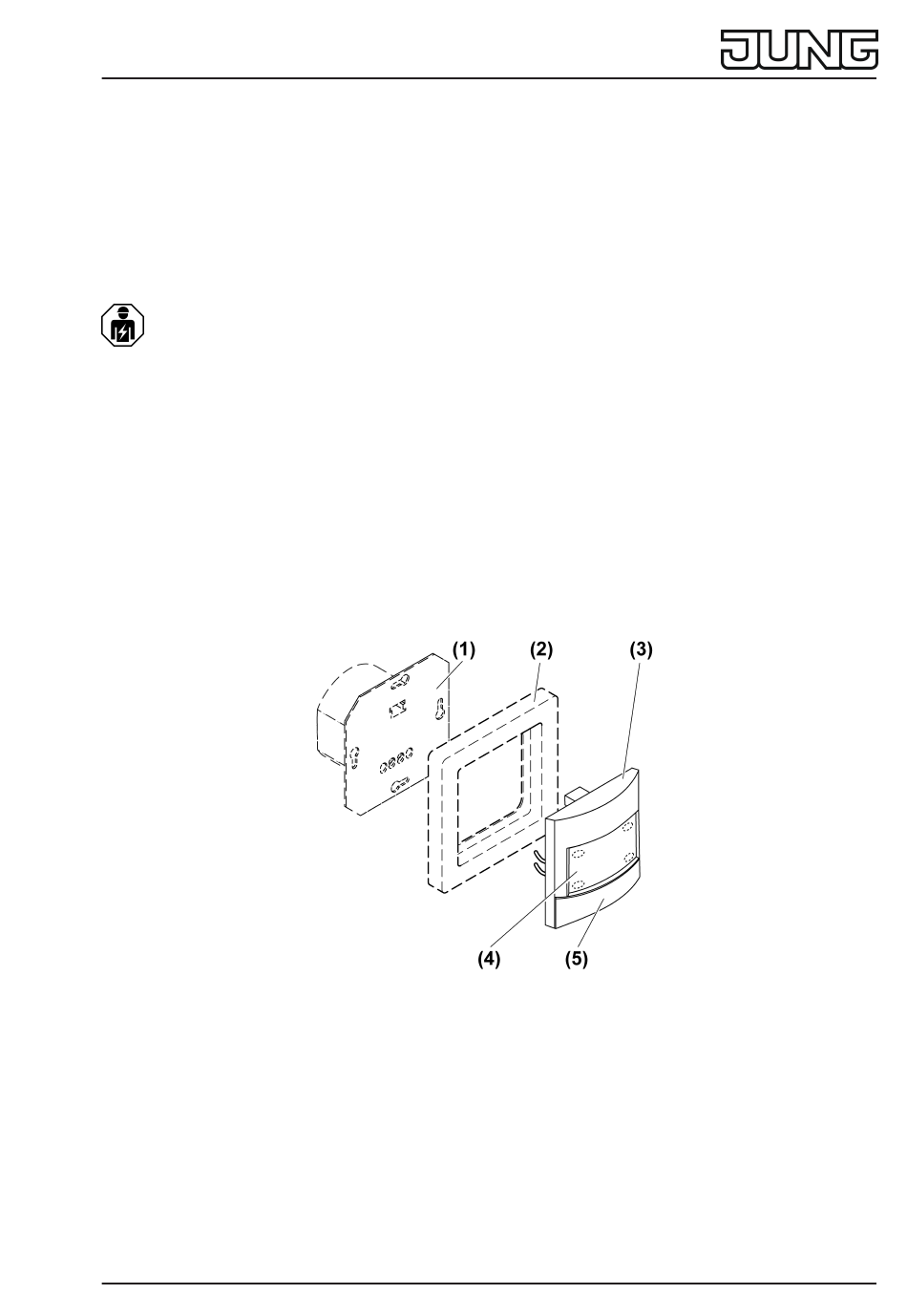

Device components
32599733
J0082599733
Figure 1: Motion detector cover 1.10 m
1 / 16
02.10.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LB management and is the answer not in the manual?

Questions and answers

Related Manuals for Jung LB management

Summary of Contents for Jung LB management

  • Page 1 LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Universal automatic switch 1.1 m Art. no.: ..17181.. Universal automatic switch 2.2 m Art. no.: ..17281.. Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons.

  • Page 2: Intended Use

    LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Figure 2: Motion detector cover 2.20 m FM insert Frame Motion detector cover Sensor window and status LED Switch 0 AUTO I Button ON Button OFF Status LED Red LED lights up...
  • Page 3 LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Product characteristics Functions directly on the cover – Extension of the detection area in combination with 3-wire extension – Continuous on, Continuous off – Operation with 2-wire or 3-wire extension, rotary dimmer extension or push-button –...

  • Page 4: Operation

    LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m If the red status LED flashes three times at repeated intervals, the cover was previously connected to another insert. To enable the function again, either place the cover onto the respective insert or press the switch (5) within 10 seconds from AUTO position to the OFF position for motion detector cover 1.10 m, and the OFF button for more than 4 seconds...
  • Page 5 LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Save switch-on brightness, only in combination with dimming insert ￭ Adjust the brightness. ￭ Press the button cover over entire surface for longer than 4 seconds. An push-button cannot be used to save the switch-on brightness.
  • Page 6 LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Motion detector cover 1.10 m detection field and range Figure 3: Motion detector cover 1.10 m detection field and installation height Figure 4: Range with tangential direction of motion motion detector cover 1.10 m...
  • Page 7 LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m 25% sensitivity 50% sensitivity 75% sensitivity 100% sensitivity Motion detector cover 2.20 m detection field and range Figure 6: Motion detector cover 2.20 m detection field and installation height Figure 7: Range with tangential direction of motion motion detector cover 2.20 m, mounting...
  • Page 8 LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Figure 8: Range with radial direction of motion motion detector cover 2.20 m, mounting height 2.20 m 25% sensitivity 50% sensitivity 75% sensitivity 100% sensitivity Figure 9: Range with tangential direction of motion motion detector cover 2.20 m, mounting height 1.10 m...
  • Page 9 LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Figure 10: Range with radial direction of motion motion detector cover 2.20 m, mounting height 1.10 m 25% sensitivity 50% sensitivity 75% sensitivity 100% sensitivity Selecting installation location ￭...
  • Page 10 LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Mounting the panel Figure 12: Dismounting of cover series CD/LS Figure 13: Dismounting the design cover series CD/LS Figure 14: Mounting of panel series CD/LS and A Series CD, LS ￭...
  • Page 11 LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Locking the switch Figure 15: Locking the switch The switch can be mechanically locked to the AUTO position as required. Use the provided screw (9) for this. ￭ Remove the cover from the (Figure 12) switch (5).

  • Page 12: Technical Data

    LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m The red LED flashes more slowly, device is reset to the factory settings and restarts. Motion detector cover 2.20 m ￭ Briefly disconnect the device from the mains voltage.
  • Page 13 LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Parameters Setting options, default set- Explanation ting 100 %, walking test: Off, reduced basic sensitivity: Walking test On: Checking the detection field. The function automatically terminates after 5 minutes.
  • Page 14 LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Parameters Setting options, default set- Explanation ting pending on brightness. Times are not saved. The dynamic run-on time is not taken into ac- count. Alarm function On, Off This function is used to monitor an area for un- authorised access during absence.

  • Page 15: Troubleshooting

    LB management Universal automatic switch 1.1 m, Universal automatic switch 2.2 m Parameters Setting options, Explanation default setting Minimum bright- 1 ... 67% Specifies the minimum settable brightness. ness Default setting: 5 % Maximum bright- 1 ... 100% Specifies the maximum settable brightness.

  • Page 16: Warranty

    Art. no. AS..50DS 11 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type art. no. ..17181.. and ..17281.. meets the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
