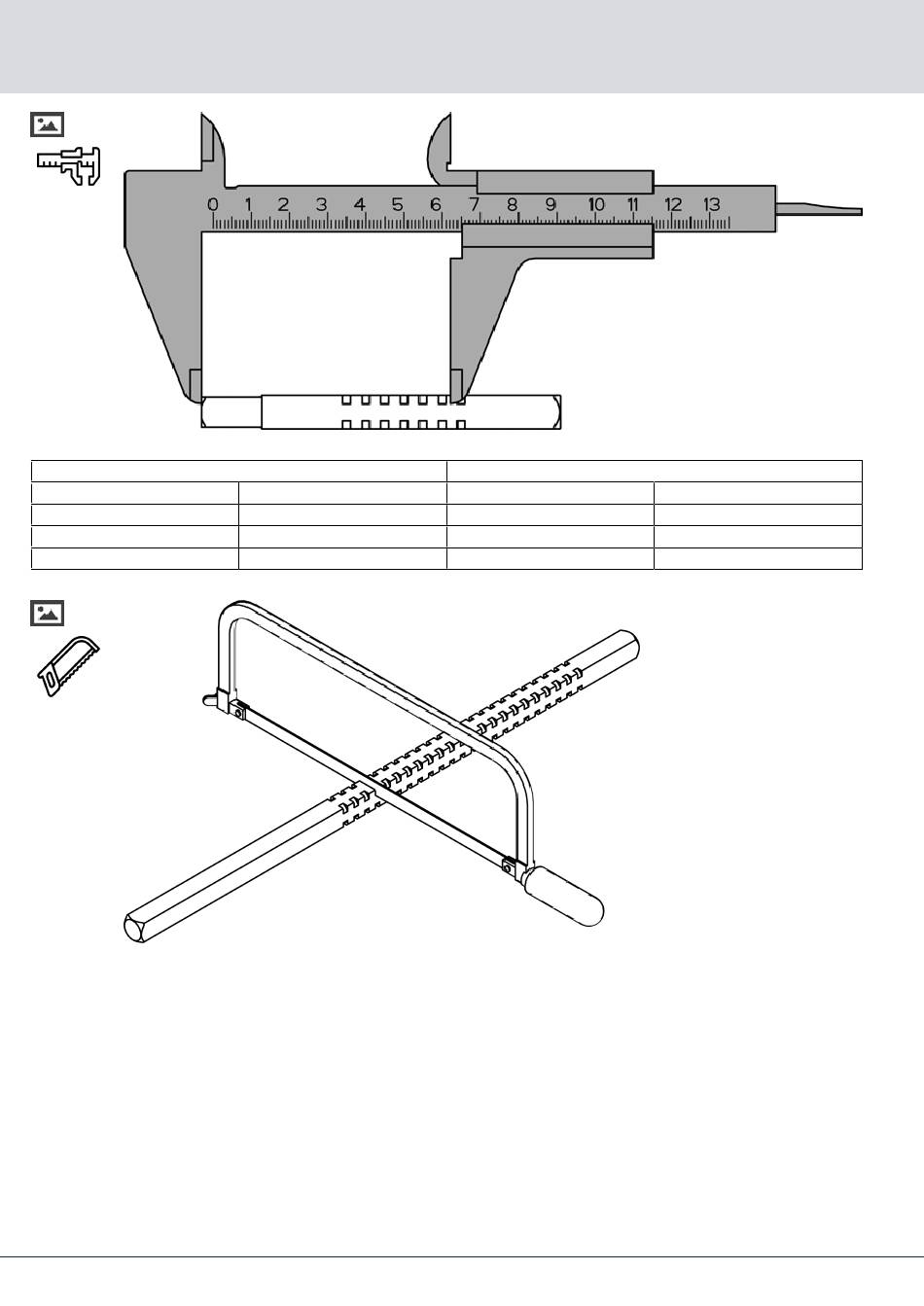

7. Installing the fitting
19
*PS* (with backplate)
BKS (bar handle)
BKS (push bar)
CISA 8 mm spindle
CISA 9 mm spindle
20
10 / 60
Door thickness – 27.8 ± 1.5
Door thickness – 36.8 ± 2.5 mm
Door thickness – 27.3 ± 0.5 mm
Door thickness – 19.3 ± 0.5 mm
SmartHandle AX Advanced Panic fitting with nar-
*PO* (with oval escutcheon)
BKS (bar handle)
BKS (push bar)
CISA 8 mm spindle
CISA 9 mm spindle
row cover
Door thickness + 27.8 ±1.5 mm
Door thickness + 36.8 ±2.5 mm
Door thickness + 37.3 ±0.5 mm
Door thickness + 27.3 ±0.5 mm
