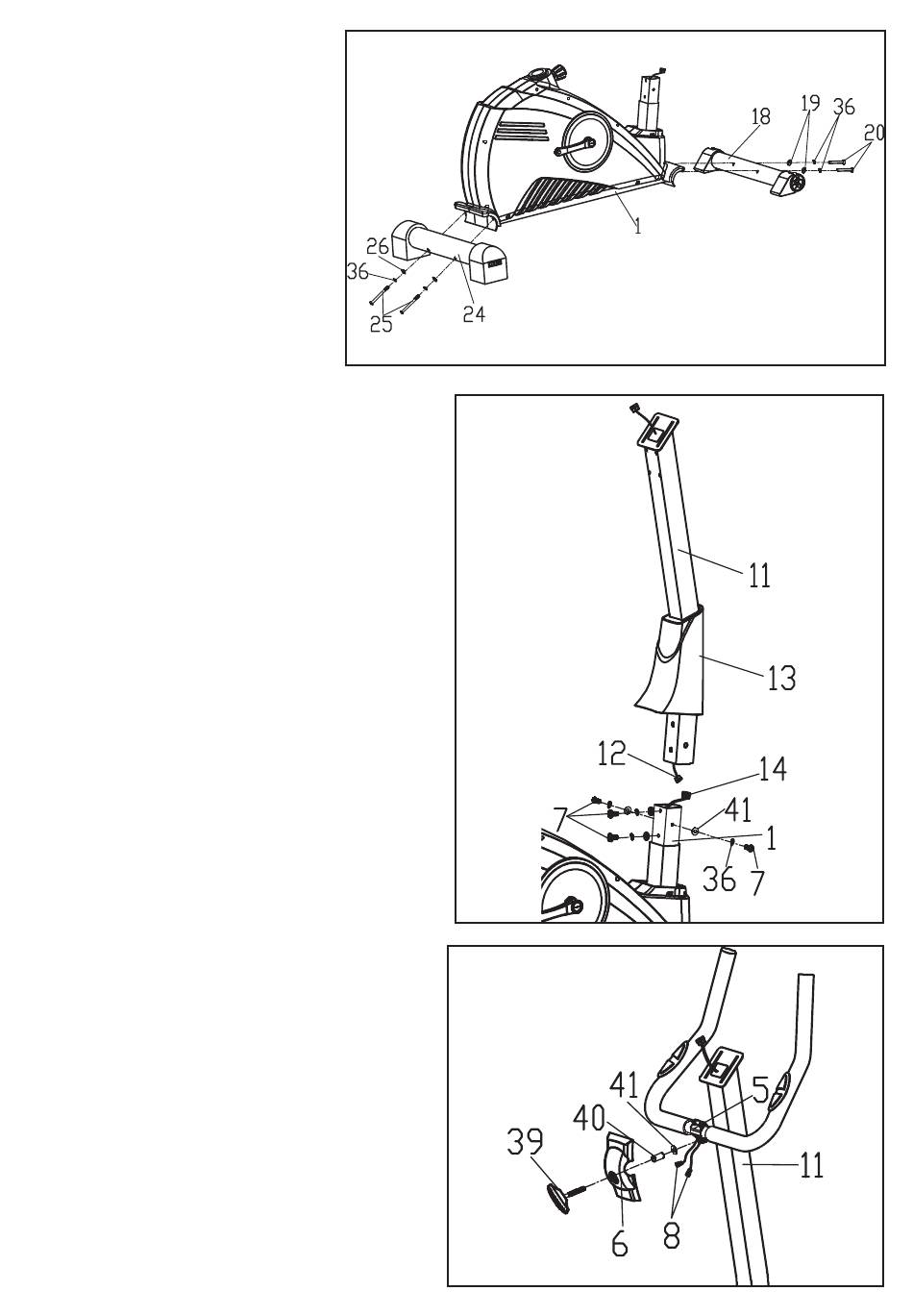

STEP 1
Attach the front stabilizer (18) to the
main frame (1) with the Allen bolts
(20), Spring washer (36) and Arc
washers (19)
Fix the rear stabilizer (24) to the main
frame (1) with the Allen bolts (25),
Spring washer (36) and Arc washers
(26) as shown.
STEP 2
Slip the Mast shield (13) onto the handlebar
post (11)
Connect the lower sensor wire (14) to the exten-
sion sensor wire (12).
Fix the handlebar post (11) on the main frame
(1), using the Allen bolts (7), spring washers
(36), and flat washers (41) as shown.
Slip down the Mast shield (13) and fit in the
place.
STEP 3
Feed the pulse sensor wires (8) out of the han-
dlebar post (11) through the computer bracket
on the top.
Attach the front handlebar cover (6) on the
handlebar (5) and adjust the handlebar (5) to
a proper position, then tighten handlebar (5) to
the handlebar post (11) with the Bolt (39), spac-
er (40) and flat washer (41) as shown.
