Summary of Contents for Vivo STAND-V103

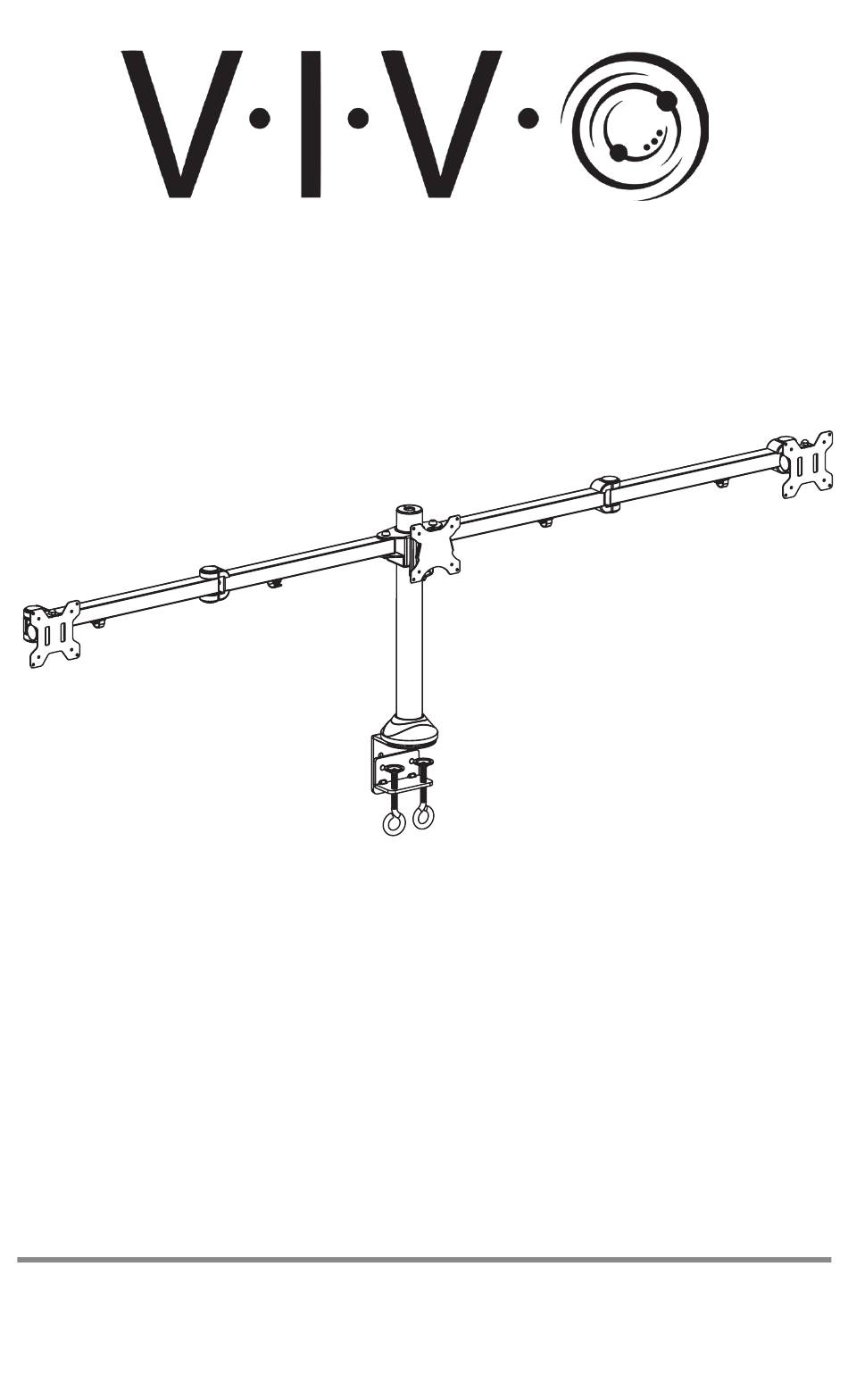

  • Page 1 Triple Monitor Desk Mount STAND-V103 Assembly Manual...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.

  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x1) D (x1) Pole Lower Clamp Upper Clamp Pole Cover E (x1) F (x2) G (x4) H (x4) Arm Extension Joint Cover Plastic Spacer I (x1) J (x1) K (x2) L (x1) Support Plate Center VESA Plate Side VESA Plate Grommet Pad...

  • Page 4: Tools Needed

    S-I (x2) M-A (x12) M-B (x12) M-C (x12) Cap Nut M4x12mm M4x30mm M4 Spacer Thumbscrew Screw T-A (x1) T-B (x1) T-C (x1) T-D (x1) 3mm Allen 5mm Allen 6mm Allen Wrench Wrench Wrench Wrench Tools Needed: Weight Capacity: 22lbs (10kg) Phillips Per Arm Screwdriver...

  • Page 5: Assembly Steps

    ASSEMBLY STEPS STEP 1 Option 1: Clamp Assembly Install Upper Clamp (C) to Pole (A) using M6x8mm Screws (S-A) and a Phillips screwdriver. Install the Pole Cover (D) to Pole (A). Assemble Lower Clamp (B) to Upper Clamp (C) using M10x15mm Screws (S-B) and 6mm Allen Wrench (T-D).
  • Page 6 Option 2: Grommet Mount Remove adhesive backing from Grommet Pad (L) and place on the bottom of Pole (A). Install Pole (A) to existing grommet hole Install the Pole Cover (D) to Pole (A). using Support Plate (I) with M10 Bolt (S-F), M10 Washer (S-E) and Lock Washer (S-G).
  • Page 7 STEP 2 Lay Arm Extensions (E) on flat surface with Cable Clip Holes facing down. Add Plastic Spacers (H) to holes at ends of Arm Extensions. Cable Clip Hole (on underside) Be sure to position all Arm Assemblies so the Cable Clip Holes are facing down.
  • Page 8 STEP 2 - Cont’d Press Monitor Arm Covers (G) onto the top and bottom of arm joints. Place Cable Clips (M) into holes on bottoms of Arms. STEP 3 Slide Arm Assembly onto Pole (A) at desired height and secure using M8x10mm Screws (S-D) and 5mm Allen Wrench (T-B).
  • Page 9 STEP 4 Attach the Center VESA Plates (K) to the monitors you intend to mount in the center of the mount. Attach Side VESA Plates (J) to remaining monitors. Secure using appropriate Screws (M-A,M-B) and Spacers (M-C). Center VESA Plate (K) Side VESA Plate (J) Flat Monitors Curved Monitors...
  • Page 10 STEP 5 Slide the center monitor onto the Center Head (C1) of Monitor Arm (C). Install M4x6mm Screws (S-E) to secure the monitor.
  • Page 11 STEP 6 Slide the outer monitors onto Outer VESA Heads (C2) of Monitor Arm (C). Secure with Cap Nut (S-I).
  • Page 12 Monitor Tilt Adjustment Side Monitor Tilt The exposed Nut on the side is Pry off Plastic Covers (C3) from used to adjust the tilt. Tighten the the Outer VESA Heads (C2). nut using Wrench (T-D) to adjust. Replace Plastic Covers. Center Monitor Tilt and Swivel Screw To adjust center monitor swivel or tilt, use 5mm Allen Wrench (T-B)
  • Page 13 Monitor Height Adjustment To adjust center monitor height, turn the Screw behind Center Head (C1) using the 5mm Allen Wrench (T-B). Screw To level the side monitors, remove the Cap Nut (S-I) and turn the inner bolt with the 3mm Allen Wrench (T-A) to raise or lower the monitor.

  • Page 14: Cable Management

    Cable Management Manage cables using Cable Clips (M) on assembled arms. Remove the split cap from the Pole (A) and feed cables through, pulling ends out from the opening in back. Replace the split cap when finished.
  • Page 15 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...

  • Page 16: Last Updated

    Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
