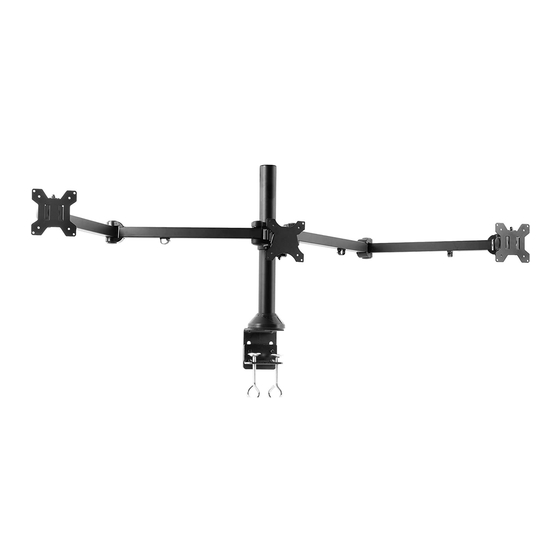

Triple Monitor Desk Mount Instruction Manual SKU: STAND-V103 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v103 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
Page 2
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
PACKAGE CONTENTS A (x1) B (x1) C (x1) D (x1) E (x1) Pole Lower Clamp Upper Clamp Pole Cover F (x2) G (x4) H (x4) I (x1) J (x1) Arm Extension Joint Cover Plastic Spacer Support Plate Center VESA Plate K (x2) L (x1) M (x4)
ASSEMBLY STEPS STEP 1 - Clamp Installation Install Upper Clamp (C) to Pole (A) using M6x8mm Screws (S-A) and a Phillips screwdriver. Assemble Lower Clamp (B) to Upper Clamp (C) using M10x15mm Screws (S-B) and 5mm Allen Wrench (T-B). Secure the clamp assembly to the desktop be tightening to the hand bolts on Lower Clamp (C).
Page 5
STEP 1 - Grommet Installation Remove adhesive backing from Grommet Pad (L) and place on the bottom of Pole (A). Install Pole (A) to existing grommet hole using Support Plate (I) with M10 Bolt (S-F), M10 Washer (S-E) and Lock Washer (S-G). Tighten with Wrench (T-D). Install the Pole Cover (D) to Pole (A).
Page 6
STEP 2 Lay Arm (E) on flat surface with holes for cable clips facing down. Add Plastic Spacers (H) to holes at ends of Arm (E). Cable Clip Hole Cable Clip Hole NOTE: Transparent monitor arm image used to show cable clip holes. Holes are on the underside of arms and are not visable when arm is facing upright.
Page 7
STEP 3 Slide arm assembly onto Pole (A) at desired height and secure using M8x10mm Screws (S-D) and 5mm Allen Wrench (T-B). STEP 4a - Flat Back Monitors Attach the Center VESA Plates (K) to the monitors you intend to mount in the center of the mount.
Page 8
STEP 4b - Curved/Recessed Back Monitors Attach the Center VESA Plates (K) to the monitors you intend to mount in the center of the mount. Attach Side VESA Plates (J) to remaining monitors. Secure using M4 Spacers (M-C), M4x30mm Screws (M-B) and a Phillips screwdriver. Center VESA Plate (K) Installation Side VESA Plate (J) Installation STEP 5...
Page 9
STEP 6 Slide the outer monitors onto Outer VESA Heads (C2). Secure with Cap Nut (S-I). Adjust Monitor Tilt Pry off Plastic Covers (C3) from the Outer VESA Heads (C2). The exposed nut on the side is used to adjust the tilt. Tighten the nut using Wrench (T-D) to adjust.
Adjust Monitor Height To adjust center monitor height, turn the screw behind Center Head (C1) using the 5mm Allen Wrench (T-B). To level the side monitors, remove the Cap Nut (S-I) and turn the inner bolt with the 3mm Allen Wrench (T-A) to raise or lower the monitor.
Page 12
: 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
