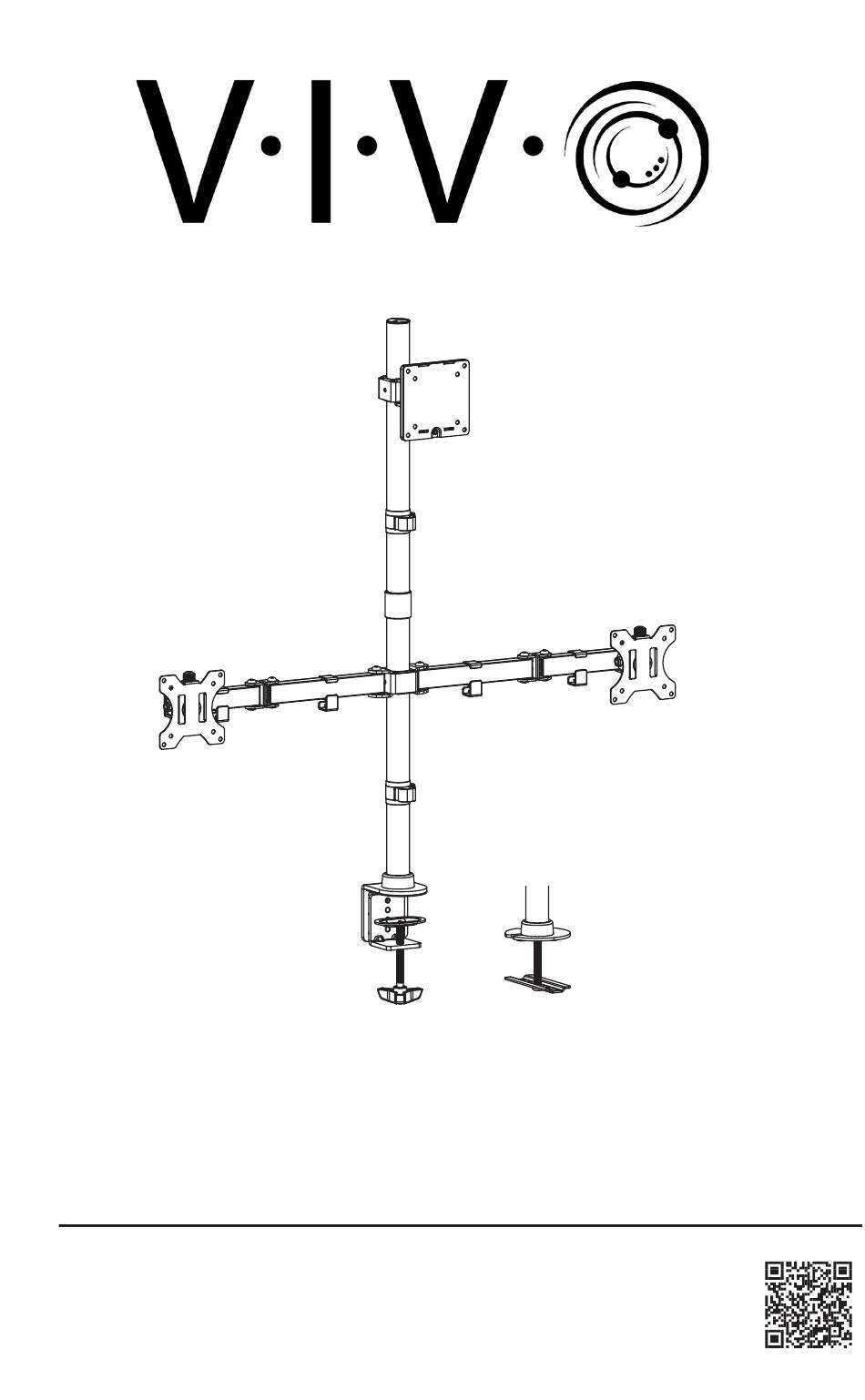

- Page 1 Triple Monitor Desk Mount SKU: STAND-V103T Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v103t...
- Page 2 [THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK]...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 4: Package Contents
Package Contents A (x2) B (x1) C (x1) D (x1) Standard VESA Ultrawide Dual Arm Clamp Plate VESA Bracket E (x1) F (x1) G (x1) H (x2) Lower Pole Upper Pole Pole Cable Clip Connector I (x1) J (x2) K (x5) L (x1) Grommet VESA Cap... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1 Option A - Clamp Slide Base Cover (M) over Lower Pole (E) Use the 3mm Allen Wrench (T-A) and and thread Lower Pole into Clamp (D). tighten down the Set Screw on Clamp. Set Screw Tighten Hand Bolt on Clamp (D) to attach it to your desktop and secure it properly. Need to Adjust Clamp Spacing? Removed Clamp Screws (D1) using 5mm Allen Wrench (T-B), and separate Clamp into Upper (D2) and Lower... - Page 6 Option B - Grommet Slide Base Cover (M) over Lower Use the 3mm Allen Attach Pads (K) to the Pole (E) and turn Lower Pole Wrench (T-A) and tighten bottom of Grommet Base (L) onto Grommet Base. down the Set Screw on Grommet Base.
-
Page 7: Assembly Options
** READ BEFORE PROCEEDING ** Assembly Options The stand can be assembled so that the monitors are configured with the ultrawide monitor on top and the dual monitors on bottom, or the dual monitors on top and the ultrawide monitor on bottom. Option B - Ultrawide on Bottom Option A - Ultrawide on top Place Ultrawide VESA Bracket on... - Page 8 STEP 2 Slide Cable Clip (H) and Dual Arm (C) onto Lower Pole (E). Secure Dual Arm (C) in place using 6mm Allen Wrench (T-C).
- Page 9 STEP 3 Screw Pole Connector (G) onto Lower Pole (E), then screw Upper Pole (F) into Pole Connector. Tighten the set screws in Pole Connector (G) using 3mm Allen Wrench (T-A). Set Screw...
- Page 10 STEP 4 Slide Cable Clip (H) and Ultrawide VESA Bracket (B) onto Upper Pole (F) at your desired height. Secure Ultrawide VESA Bracket in place using 6mm Allen Wrench (T-C). STEP 5 Using a Phillips screwdriver, secure Standard VESA Plates (A) to two of your monitors using appropriate Screws (M-A,M-B) and Washers (M-C).
- Page 11 STEP 6 Slide your monitors onto Dual Arm (C). Secure using M3x8mm Screws (S-A), VESA Cap (J) and a Phillips screwdriver. Adjust the vertical viewing angle as desired and tighten the screw on the tilt joint using 6mm Allen Wrench (T-C).
- Page 12 STEP 7 Loosen the Thumbscrew (B2) on the back of Ultrawide VESA Brackets (B1), then separate and remove VESA Bracket (B3) by pulling out and sliding upwards. Secure VESA Bracket (B3) to your ultrawide monitor using appropriate Screws (M-A,M-B) and Washers (M-C), orienting the arrow of VESA Bracket pointing up. Do not over-tighten the screws.
- Page 13 STEP 8 Adjusting the Tilt Joint Adjustment Screw Loosen Tilt Joint Use 6mm Allen Wrench (T-C) to loosen the Tilt Joint Adjustment Screw, located on the side of VESA Bracket (B1). Set Angle Firmly grip the VESA Bracket and adjust to your desired viewing angle, and hold in place.
- Page 14 STEP 9 With the assistance of a second person, line up the VESA Plate (B3) on your monitors with the VESA Bracket (B1) and the Plate Hooks into the pockets of the VESA Bracket. Monitor & VESA Bracket may need to be angled backwards slightly when sliding on. 2 Person Mounting is Recommended *Monitor &...
- Page 15 Fine Tune Tilt Angle If the monitor is angled further than intended... Heavy Weighted/ Ultrawide Monitors [ 22lbs - 44lbs ] Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint With a hand still on the monitor, use 6mm Allen Wrench (T-C) to loosen the...
- Page 16 STEP 10 Route cables through the cable clips on Dual Arm (C) and Cable Clips (H). Store Allen Wrenches (T-A through T-C) in Cable Clips (H). T-A ~ T-C...
- Page 17 STEP 11 Level the monitors on Dual Arm (C) by using 6mm Allen Wrench (T-C) to adjust VESA Caps (J). This adjustment will allow the monitor to raise, helping to achieve a level setup. Adjust monitors orientation as desired. +50° ±180°...
- Page 18 WARNING: RISK OF TIPPING To avoid risk of tipping, do not move monitors too far behind or too far in front of clamp.
- Page 19 [THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK]...
-
Page 20: Last Updated
LAST UPDATED: 05/13/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
