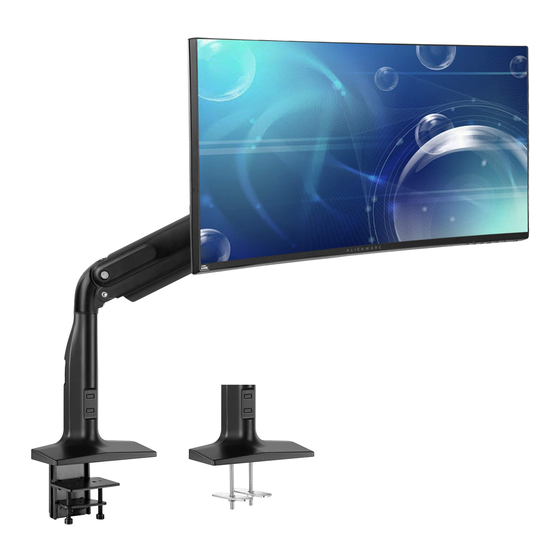

Pneumatic Arm Single Ultra Wide Monitor Desk
Mount
Instruction Manual
SKU: STAND-V100H
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v100h
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V100H
Summary of Contents for Vivo STAND-V100H
- Page 1 Pneumatic Arm Single Ultra Wide Monitor Desk Mount Instruction Manual SKU: STAND-V100H Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v100h GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Attach clamp brace (D) to base (A) using M6x12 bolts (P), and tighten with 4mm Allen wrench (T). Insert clamp bolts (H) into clamp bracket (G) as shown, then place clamp plate (F) on top of assembled clamp. - Page 4 STEP 2 Insert the arm (B) into the socket of the base, then secure using the 4mm Allen wrench (T) or a flat-blade screwdriver. Install rear cover (C) to clamp brace if the clamp option was used. STEP 3 OPTION A: VESA 75x75, 100x100 Install the VESA plate (J) to monitor using M4x12 bolts (M-A) or M5x12 bolts (M-B) with washers (M-C), making sure the rounded edges of the rear bracket are facing up.
- Page 5 STEP 4 Pull back the latch on the support bracket at the end of the arm (B), then place the monitor with VESA plate onto the support bracket. STEP 5 While holding the arm in the horizontal position, adjust the gas spring tension using the 6mm Allen wrench (U).
- Page 6 STEP 6 Remove cable covers from base and adjustable arm. Organize cables and reinstall cable covers to base and adjustable arm. STEP 7 Tighten or loosen the tilt joint using the 6mm Allen wrench (U).
- Page 7 STEP 8 Adjust the monitor position as desired.
