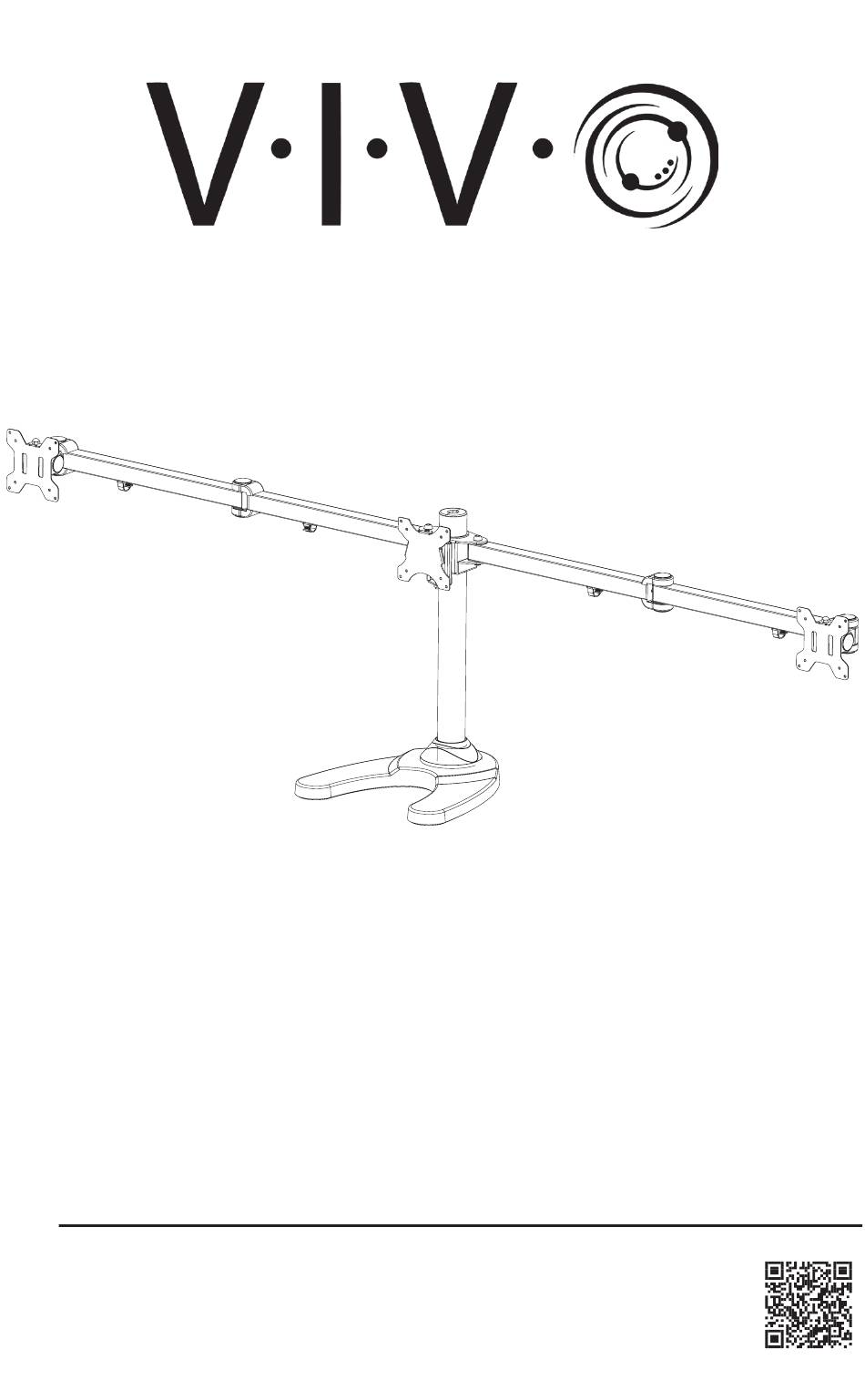

- Page 1 Triple Monitor Desk Stand SKU: STAND-V103F Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v103f...
- Page 2 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 4: Package Contents
Package Contents A (x1) B (x1) C (x1) Pole Base Pole Cover D (x1) E (x2) F (x4) Arm Extension Joint Cover G (x4) H (x1) I (x2) Plastic Spacer Center VESA Side VESA Plate Plate J (x4) K (x2) Cable Clip Spare Plastic... -
Page 5: Included Hardware & Tools
Included Hardware & Tools S-A (x2) S-B (x3) S-C (x2) S-D (x2) M10x47mm M6x29mm M8x10mm Cap Nut Screw Screw Screw S-E (x1) M-A (x12) M-B (x12) M-C (x12) M4x6mm M4x12mm M4x30mm M4 Spacer Screw Thumbscrew Screw T-A (x1) T-B (x1) T-C (x1) T-D (x1) 3mm Allen... -
Page 6: Assembly Steps
ASSEMBLY STEPS STEP 1 Attach Pole (A) to the Base (B) using M6x29mm Screws (S-B) and a Phillips screwdriver. Slide Pole Cover (C) down the Pole and onto the Base. STEP 2 Press Plastic Spacers (G) into the ends of the Arm Extensions (E) as shown. - Page 7 Insert Arm Extensions (E) into the Arm (D) and secure using M10x47mm Screws (S-A) and 6mm Allen Wrench (T-C). NOTE Ensure all Adjustment Screws are facing up.
- Page 8 STEP 3 Press Joint Covers (F) onto the top and bottom of arm joints as shown. Press Cable Clips (J) into the cable clip holes on the bottom of the Arm (D).
- Page 9 STEP 4 Slide Arm (D) onto Pole (A) at the desired height and secure using M8x10mm Screws (S-C) and 5mm Allen Wrench (T-B). Ensure Cable Clips (J) are on the bottom of the Arm.
- Page 10 STEP 5 Option 1: Flat Monitor Attach Center VESA Plate (H) to the monitor that is intended to be in the center. Attach Side VESA Plates (I) to the remaining monitors. Secure using M4x12mm Screws (M-A). Center VESA Plate Side VESA Plates Option 2: Curved Monitor Attach Center VESA Plate (H) to the monitor that is intended to be in the center.
- Page 11 STEP 6 Slide the center monitor onto the Center Head (D1) of Arm (D). Secure using M4x6mm Screws (S-E) and a Phillips screwdriver. Slide the side monitors onto the Side VESA Heads (E1) of Arm Extension (E). Secure using Cap Nuts (S-D).
- Page 12 Tilt Joint Adjustment Center Monitor Use 3mm Allen Wrench (T-A) to loosen the set screw on the Center Head (D1). Adjust the monitor to the desired position and retighten the set screw. Side Monitors Pry off the Plastic Covers (E2) from the Side VESA Heads (E1). Adjust the tilt as desired and tighten the exposed nut using Wrench (T-D).
-
Page 13: Height Adjustment
Height Adjustment Center Monitor Use 5mm Allen Wrench (T-B) to turn the screw behind the Center Head (D1) as shown. Side Monitors Remove the Cap Nut (S-D) and turn the inner screw using 3mm Allen Wrench (T-A). Replace the Cap Nut after the adjustment. - Page 14 STEP 7 Manage cables using Cable Clips (J). Remove the Split Cap from the top of the Pole (A). Feed cables through the Pole and out the opening on the back and replace the Split Cap. Split Cap...
- Page 15 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
-
Page 16: Last Updated
LAST UPDATED: 7/8/24 REV3 v2.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
