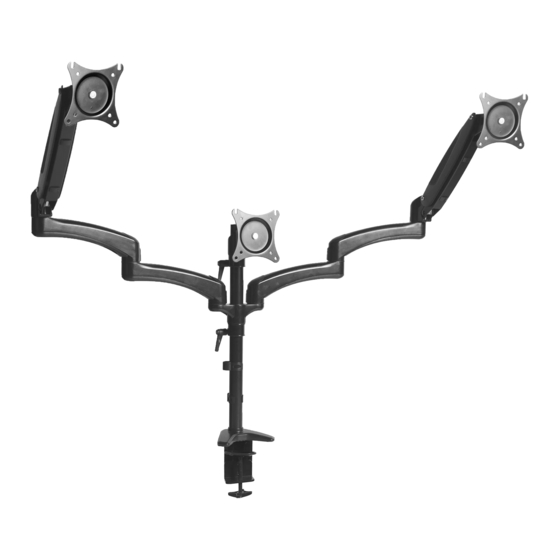

Triple Monitor Desk Mount -
2 Pneumatic Arms + 1 Fixed
Instruction Manual
SKU: STAND-V103G
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v103g
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V103G
Summary of Contents for Vivo STAND-V103G
- Page 1 Triple Monitor Desk Mount - 2 Pneumatic Arms + 1 Fixed Instruction Manual SKU: STAND-V103G Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v103g GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Thread Pole (A) onto Clamp (C). Tighten the set screw in the back of Clamp (C) with 3mm Allen Wrench (T-A) to secure Pole (A) in place. STEP 2 Slide Shaft Collar (D) onto Pole (A). Tighten the handle on Shaft Collar (D) to secure it in place. Slide Arm Bracket (B) onto Pole (A) to that it rests on Shaft Collar (D).
- Page 4 STEP 3 Place an Arm Extension (F) on either side of Arm Bracket (B). Attach the second set of Arm Extensions (F) to the first set. Tighten the set screws in the back of Arm Extensions (F) using 3mm Allen Wrench (T-A). Slide Shaft Collar (D) onto Pole (A). Tighten the handle on Shaft Collar (D) to secure it in place.
- Page 5 STEP 4 (Continued) OPTION B: Curved Back Monitor Mount Monitor Arm (E) to your monitor using M4x30 Screws (M-B) with Spacers (M-D). STEP 5 Mount VESA Plate (G) to your monitor using M4x8 Screws (M-C) or M4x12 Screws (M-A) or M4x30 Screws (M-B). If necessary, Spacers (M-D) may be used.
- Page 6 STEP 6 Mount Monitor Arms (E) onto Arm Extensions (F). Slide VESA Plate (G) onto Pole (A). Tighten set screws in the back of Monitor Arms (E) and VESA Plate (G) using 3mm Allen Wrench (T-A). STEP 7 Insert Plastic Covers (H) into Monitor Arms (E) and Arm Extensions (F). Adjust the tilt of Monitor Arms (E) and VESA Plate (G) using 5mm Allen Wrench (T-B).
- Page 7 STEP 8 Attach Cable Clips (I) to Pole (A). Manage monitor cables into cable covers on underside of Monitor Arms (E), Arm Extensions (F) and Cable Clips (I). Leave enough slack to allow full adjustment and motion of arms.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
