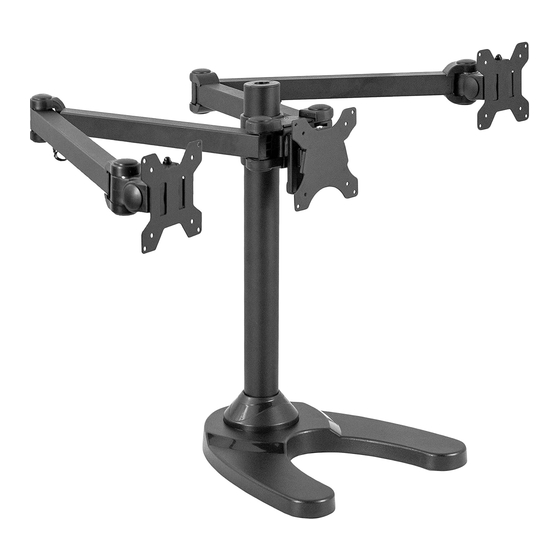

- Page 1 Triple Monitor Desk Stand Instruction Manual SKU: STAND-V103F Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v103f help@vivo-us.com www.vivo-us.com 1-800-371-5654...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22 lbs Failure to do so may result in serious injury. (10 kg) PER ARM Phillips Screwdriver WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED. ASSEMBLY STEPS STEP 1 Install the pole (A) to the weighted base (B) using M6x29 bolts (H).
- Page 4 STEP 2 Assemble the monitor arms (D1, D2) by placing plastic pads (F) on the top and bottom of arms (D2) and inserting them into the center arm (D1) as shown in the diagram. Secure with M10x47 Bolts (G) and tighten with the large Allen wrench (N). Press monitor arm covers (E) onto the top and bottom of arm joints.
- Page 5 STEP 4 OPTION A: Flat Back Monitor OPTION B: Curved Back Monitor Attach the VESA plates (P1, P2) to the monitors Attach the VESA plates (P1, P2) to the monitors using M4x12 thumb bolts (J). using M4 spacers (L) and M4x30 bolts (K). Tighten with a Phillips screwdriver.
- Page 6 STEP 5B Slide the side monitors onto the heads of monitor arm and install the security nuts (Q1). Make sure the security nuts are installed before you rotate the monitors. d1,d2 STEP 6 Pry off the plastic cover and tighten the nut on the side of the tilt joint with the wrench (O) to fix the tilt angle of side monitors.
- Page 7 STEP 7 To adjust center monitor height, turn the screw behind center monitor joint using the medium Allen wrench (N). To level the side monitors, remove the security nut and turn the bolt with the small Allen wrench (N) to raise or lower the monitor. Replace nut after the adjustment. STEP 8 Pry off the plastic cover and use the large Allen wrench (N) to adjust swivel joints if needed.
- Page 8 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
