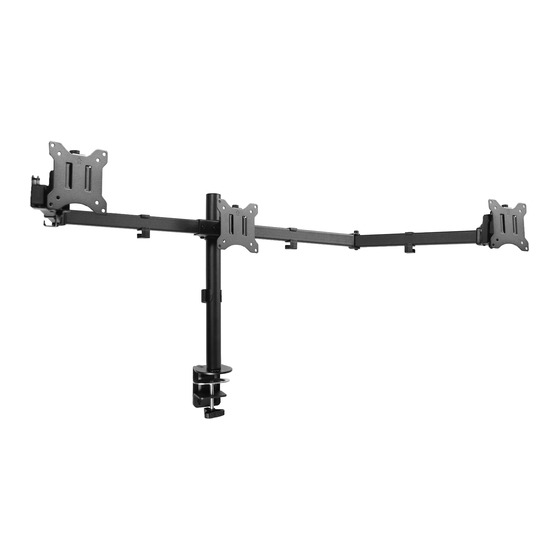

Flush to Wall Triple Monitor Desk Mount
Instruction Manual
SKU: STAND-V103C
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v103c
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V103C
Summary of Contents for Vivo STAND-V103C
- Page 1 Flush to Wall Triple Monitor Desk Mount Instruction Manual SKU: STAND-V103C Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v103c GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 15.4lbs Phillips Per Monitor Failure to do so may result in serious injury. Screwdriver (7kg) ASSEMBLY STEPS STEP 1 Separate Clamp (B) into Upper Clamp (B1) and Lower Clamp (B2) using 4mm Allen Wrench (T-A). STEP 2 OPTION B: Grommet Base Installation OPTION A: Clamp Installation...
- Page 4 STEP 2 (Continued) OPTION A: Clamp Installation OPTION B: Grommet Installation For thinner desktops (10-50mm), re-attach If not using an existing through-hole, using a Lower Clamp (B2) to Upper Clamp (B1)and 10mm (⅜”) drill bit, drill through the desktop at least 2”...
- Page 5 STEP 3 Assemble Arms (D), Arm Support Bracket (I) and Bracket Plate (H) using M6x27mm Screws (S-F) and 4mm Allen Wrench (T-A). Secure Arm Extensions (E) to Arms (D) using M8x42mm Screws (S-I) and 6mm Allen Wrench (T-B). Mount Center VESA Bracket (G) to Bracket Plate (H) using M8x50mm Screw (S-C), M8 Washers (S-D), and M8 Nut (S-E) with 6mm Allen...
- Page 6 STEP 6 Assemble Arm Cable Clips (M) to Arms (D) and Arm Extensions (E). Attach Pole Cable Clip (L) to Pole (A). STEP 7 Attach VESA Plates (C) to the back of the monitor using Screws (M-A through M-D) and Washers (M-E). If needed, use Spacers (M-F).
- Page 7 STEP 9 Manage cables using Arm Cable Clips (M) and Pole Cable Clip (L). STEP 10 Adjust tilt, height, and horizontal orientation using Allen Wrenches (T-A and T-B) as shown below. Store Allen Wrenches (T-A and T-B) in Pole Cable Clip (L).
