This product manual contains important information about the safe installation and
use of this projector. Please read and follow these instructions carefully and keep
this manual in a safe place for future reference.
User manual
Please read the instructions carefully before use

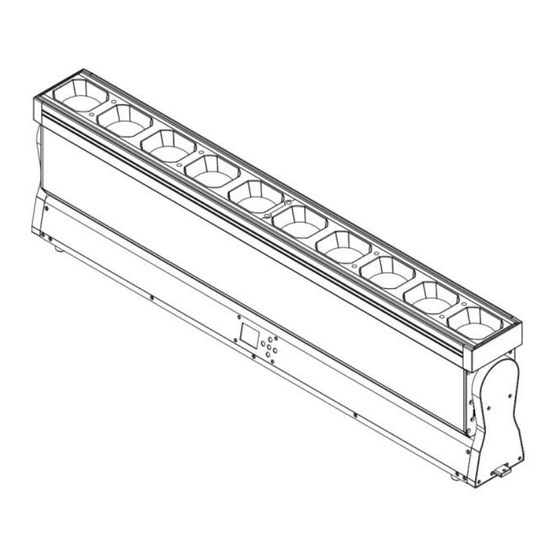

SNAKE 1060

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNAKE 1060 and is the answer not in the manual?

Questions and answers

Related Manuals for RIUKOE SNAKE 1060

Summary of Contents for RIUKOE SNAKE 1060

  • Page 1 SNAKE 1060 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. User manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    INDEX ..................... 2 1.STATEMENT ..................2 2.ACCESSORIES INSTRUCTION................2 3.SAFETY ..................4 4.INSTALLATION SPECIFICATION..............6 5.TECHNICAL ................... 8 6.PANEL OPTATION ..............10 7.CHANNEL DESCRIPTION 8.TROUBELSHOOTING ................52 ............53 9.CLEANING AND MAINTENANCE...

  • Page 3: Statement

    1.STATEMENT product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also cannot be responsible for any malfunction & problem owing to ignore the manual.

  • Page 4: Preventing Electric Shock

    installation code by a person familiar with the construction and operation of the fixture and the hazards involved. Preventing electric shock WARNING! Risk of electric shock. Always power off/unplug the fixture before removing any covers. ⚫ Ensure that the power is turned off when connecting the fixture to the AC ⚫...

  • Page 5: Installation

    WARNING! Take measure to prevent personal injury. Do not look directly at the light source from close range. ⚫ Take precautions to prevent injury due to falls when working at height. ⚫ For permanent installation, ensure that the fixture is securely fastened to ⚫...

  • Page 6: Dmx-512 Control Connection

    clamp to the included Omega Bracket using a M10 screw fitted through the center hole of the ‘omega bracket’. As an added safety measure be sure to attached at least one properly rated Safety Cable to the fixture using one of the safety cable rigging point integrated in the base assembly.

  • Page 7: Dmx Address Setting

    DMX Address Setting: By using a universal DMX controller to control the units, you will need to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button up to when the DMX Address is showing on the display. Pressing the ENTER button and the display will blink.
  • Page 8 Light Source - Main Light:10PCSx60W RGBW - Strip light: 96x3W CW LED, 96x3W WW LED, 96x0.5W RGB LED Zoom - Zoom Angle： 2.8°- 31° - Field Angle： 5°- 46° Protocols - Control mode: DMX512/Master-Slave/Auto run - Channel mode: 17CH/27CH/99/108/168/170 DMX Channels - Built-in RDM, you can directly adjust the address code with the console Movement - Y-axis Angle 202 degrees(16-bit)

  • Page 9: Panel Optation

    Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. 6.PANEL OPTATION Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the required function is shown on the monitor.
  • Page 10 Signal Keep OFF/ON Screen Saver OFF/ON Invert Screen Auto/OFF/ON Update Slave OFF/ON Language EN/ 中文 Dimmer Carve Curve1/2/3/4 Dimmer Speed Fast/Smooth Load Default Ok/Cancel 1. Tilt 0 - 255 2. Tilt Fine 0 - 255 3. Focus 0 - 255 4.

  • Page 11: Channel Description

    21. Strobe speed 0 - 255 22. Strobe R 0 - 255 23. Strobe G 0 - 255 24. Strobe B 0 - 255 25. Strobe Color 0 - 255 26. Strobe effect 0 - 255 27. Strobe speed 0 - 255 Calib Calibration Password : ****...
  • Page 12 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231 Fast Open Slow Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255 Open 000-007 Close 008-015 Open...
  • Page 13 040-049 Dimmer Curve: Square Law 050-059 Dimmer Curve: Inv SQ Law 060-069 Dimmer Curve: S Curve 070-079 Power Mode: Standard 080-089 Null 090-099 Power Mode: Quiet 100-109 Led Frequency Setting Enable 110-119 Led Frequency Setting Disable 120-122 Null 900Hz 1000Hz 1100Hz 1200Hz 1300Hz...
  • Page 14 200-209 All Reset 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Smooth 230-239 Line Power Mode: Off 240-249 Line Power Mode: On 250-255 Null MAIN RED 000-255 0-100% MAIN GREEN 000-255 0-100% MAIN BLUE 000-255 0-100% MAIN WHITE 000-255 0-100% LINE_W CW 000-255 0-100% LINE_W WW...
  • Page 15 240-247 Random Strobe from Slow to Fast 248-255 Open 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast LINE_W STROBE 182-189 Open 190-231 Fast Open Slow Close from Slow to Fast 232-239 Open 240-247...
  • Page 16 100-109 Led Frequency Setting Enable 110-119 Led Frequency Setting Disable 120-122 Null 900Hz 1000Hz 1100Hz 1200Hz 1300Hz 1400Hz 1500Hz 2500Hz 4000Hz 5000Hz 6000Hz 10KHz 15KHz 20KHz 25KHz 138-139 Null 140-149 Tilt Reset 150-159 Effect Reset 160-169 CCT Calibration: On 170-179 CCT Calibration: Off 180-199 Null...
  • Page 17 MAIN RED 000-255 0-100% MAIN GREEN 000-255 0-100% MAIN BLUE 000-255 0-100% MAIN WHITE 000-255 0-100% 122-126 5300K 127-130 5200K 131-135 5100K 136-139 5000K 140-144 4900K 145-148 4800K 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K MAIN CCT...
  • Page 18 239-243 2700K 244-247 2600K 248-255 2500K 000-007 Null 008-015 Color1 016-023 Color2 024-031 Color3 032-039 Color4 040-047 Color5 048-055 Color6 056-063 Color7 064-071 Color8 072-079 Color9 080-087 Color10 088-095 Color11 096-103 Color12 MAIN COLOR 104-111 Color13 112-119 Color14 120-127 Color15 128-135 Color16 136-143...
  • Page 19 216-223 Color27 224-231 Color28 232-239 Color29 240-247 Color30 248-255 Color31 000-007 Null 008-015 Built-in Effect 1 016-023 Built-in Effect 2 024-031 Built-in Effect 3 032-039 Built-in Effect 4 040-047 Built-in Effect 5 048-055 Built-in Effect 6 056-063 Built-in Effect 7 064-071 Built-in Effect 8 072-079...
  • Page 20 200-207 Null 208-215 Null 216-223 Null 224-231 Null 232-239 Null 240-247 Null 248-255 Null 000-127 Slow to Fast without Fade MAIN MACRO SPEED 128-255 Slow to Fast with Fade LINE_W CW 000-255 0-100% LINE_W WW 000-255 0-100% Null 001-004 Null 005-009 Null 010-013...
  • Page 21 082-085 6200K 086-090 6100K 091-094 6000K 095-099 5900K 100-103 5800K 104-108 5700K 109-112 5600K 113-117 5500K 118-121 5400K 122-126 5300K 127-130 5200K 131-135 5100K 136-139 5000K 140-144 4900K 145-148 4800K 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180...
  • Page 22 217-220 3200K 221-225 3100K 226-229 3000K 230-234 2900K 235-238 2800K 239-243 2700K 244-247 2600K 248-255 Reserved Values 000-007 Null 008-015 Built-in Effect 1 016-023 Built-in Effect 2 024-031 Built-in Effect 3 032-039 Built-in Effect 4 040-047 Built-in Effect 5 048-055 Built-in Effect 6 056-063 Built-in Effect 7...
  • Page 23 176-183 Built-in Effect 22 184-191 Built-in Effect 23 192-199 Null 200-207 Null 208-215 Null 216-223 Null 224-231 Null 232-239 Null 240-247 Null 248-255 Null 000-127 Slow to Fast without Fade LINE_W MACRO SPEED 128-255 Slow to Fast with Fade LINE_RGB RED 000-255 0-100% LINE_RGB GREEN...
  • Page 24 120-127 Color15 128-135 Color16 136-143 Color17 144-151 Color18 152-159 Color19 160-167 Color20 168-175 Color21 176-183 Color22 184-191 Color23 192-199 Color24 200-207 Color25 208-215 Color26 216-223 Color27 224-231 Color28 232-239 Color29 240-247 Color30 248-255 Color31 000-007 Null 008-015 Built-in Effect 1 016-023 Built-in Effect 2 024-031...
  • Page 25 104-111 Built-in Effect 13 112-119 Built-in Effect 14 120-127 Built-in Effect 15 128-135 Built-in Effect 16 136-143 Built-in Effect 17 144-151 Built-in Effect 18 152-159 Built-in Effect 19 160-167 Built-in Effect 20 168-175 Built-in Effect 21 176-183 Built-in Effect 22 184-191 Built-in Effect 23 192-199...
  • Page 26 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231 Fast Open Slow Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255 Open 000-007 Close 008-015 Open...
  • Page 27 040-049 Dimmer Curve: Square Law 050-059 Dimmer Curve: Inv SQ Law 060-069 Dimmer Curve: S Curve 070-079 Power Mode: Standard 080-089 Null 090-099 Power Mode: Quiet 100-109 Led Frequency Setting Enable 110-119 Led Frequency Setting Disable 120-122 Null 900Hz 1000Hz 1100Hz 1200Hz 1300Hz...
  • Page 28 200-209 All Reset 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Smooth 230-239 Line Power Mode: Off 240-249 Line Power Mode: On 250-255 Null MAIN RED 1 000-255 0-100% MAIN GREEN 1 000-255 0-100% MAIN BLUE 1 000-255 0-100% MAIN WHITE 1 000-255 0-100% MAIN RED 2...
  • Page 29 MAIN RED 7 000-255 0-100% MAIN GREEN 7 000-255 0-100% MAIN BLUE 7 000-255 0-100% MAIN WHITE 7 000-255 0-100% MAIN RED 8 000-255 0-100% MAIN GREEN 8 000-255 0-100% MAIN BLUE 8 000-255 0-100% MAIN WHITE 8 000-255 0-100% MAIN RED 9 000-255 0-100%...
  • Page 30 LINE_W WW 7 000-255 0-100% LINE_W CW 8 000-255 0-100% LINE_W WW 8 000-255 0-100% LINE_W CW 9 000-255 0-100% LINE_W WW 9 000-255 0-100% LINE_W CW 10 000-255 0-100% LINE_W WW 10 000-255 0-100% LINE_W CW 11 000-255 0-100% LINE_W WW 11 000-255 0-100%...
  • Page 31 LINE_W CW 22 000-255 0-100% LINE_W WW 22 000-255 0-100% LINE_W CW 23 000-255 0-100% LINE_W WW 23 000-255 0-100% LINE_W CW 24 000-255 0-100% LINE_W WW 24 000-255 0-100% LINE_RGB RED 000-255 0-100% LINE_RGB GREEN 000-255 0-100% LINE_RGB BLUE 000-255 0-100% 108 Channels Mode...
  • Page 32 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231 Fast Open Slow Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255 Open 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181...
  • Page 33 1200Hz 1300Hz 1400Hz 1500Hz 2500Hz 4000Hz 5000Hz 6000Hz 10KHz 15KHz 20KHz 25KHz 138-139 Null 140-149 Tilt Reset 150-159 Effect Reset 160-169 CCT Calibration: On 170-179 CCT Calibration: Off 180-199 Null 200-209 All Reset 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Smooth 230-239 Line Power Mode: Off 240-249...
  • Page 34 MAIN BLUE 2 000-255 0-100% MAIN WHITE 2 000-255 0-100% MAIN RED 3 000-255 0-100% MAIN GREEN 3 000-255 0-100% MAIN BLUE 3 000-255 0-100% MAIN WHITE 3 000-255 0-100% MAIN RED 4 000-255 0-100% MAIN GREEN 4 000-255 0-100% MAIN BLUE 4 000-255 0-100%...
  • Page 35 MAIN WHITE 9 000-255 0-100% MAIN RED 10 000-255 0-100% MAIN GREEN 10 000-255 0-100% MAIN BLUE 10 000-255 0-100% MAIN WHITE 10 000-255 0-100% LINE_W CW 1 000-255 0-100% LINE_W WW 1 000-255 0-100% LINE_W CW 2 000-255 0-100% LINE_W WW 2 000-255 0-100%...
  • Page 36 LINE_RGB RED 1 000-255 0-100% LINE_RGB GREEN 1 000-255 0-100% LINE_RGB BLUE 1 000-255 0-100% LINE_RGB RED 2 000-255 0-100% LINE_RGB GREEN 2 000-255 0-100% LINE_RGB BLUE 2 000-255 0-100% LINE_RGB RED 3 000-255 0-100% LINE_RGB GREEN 3 000-255 0-100% LINE_RGB BLUE 3 000-255 0-100%...
  • Page 37 LINE_RGB BLUE 10 000-255 0-100% LINE_RGB RED 11 000-255 0-100% LINE_RGB GREEN 11 000-255 0-100% LINE_RGB BLUE 11 000-255 0-100% LINE_RGB RED 12 000-255 0-100% LINE_RGB GREEN 12 000-255 0-100% LINE_RGB BLUE 12 000-255 0-100% 168 Channels Mode Function Value Function Tilt 000-255...
  • Page 38 190-231 Fast Open Slow Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255 Open 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast LINE_RGB STROBE 182-189 Open...
  • Page 39 1400Hz 1500Hz 2500Hz 4000Hz 5000Hz 6000Hz 10KHz 15KHz 20KHz 25KHz 138-139 Null 140-149 Tilt Reset 150-159 Effect Reset 160-169 CCT Calibration: On 170-179 CCT Calibration: Off 180-199 Null 200-209 All Reset 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Smooth 230-239 Line Power Mode: Off 240-249 Line Power Mode: On...
  • Page 40 MAIN RED 3 000-255 0-100% MAIN GREEN 3 000-255 0-100% MAIN BLUE 3 000-255 0-100% MAIN WHITE 3 000-255 0-100% MAIN RED 4 000-255 0-100% MAIN GREEN 4 000-255 0-100% MAIN BLUE 4 000-255 0-100% MAIN WHITE 4 000-255 0-100% MAIN RED 5 000-255 0-100%...
  • Page 41 MAIN GREEN 10 000-255 0-100% MAIN BLUE 10 000-255 0-100% MAIN WHITE 10 000-255 0-100% LINE_W CW 1 000-255 0-100% LINE_W WW 1 000-255 0-100% LINE_W CW 2 000-255 0-100% LINE_W WW 2 000-255 0-100% LINE_W CW 3 000-255 0-100% LINE_W WW 3 000-255 0-100%...
  • Page 42 LINE_W CW 14 000-255 0-100% LINE_W WW 14 000-255 0-100% LINE_W CW 15 000-255 0-100% LINE_W WW 15 000-255 0-100% LINE_W CW 16 000-255 0-100% LINE_W WW 16 000-255 0-100% LINE_W CW 17 000-255 0-100% LINE_W WW 17 000-255 0-100% LINE_W CW 18 000-255 0-100%...
  • Page 43 LINE_RGB GREEN 3 000-255 0-100% LINE_RGB BLUE 3 000-255 0-100% LINE_RGB RED 4 000-255 0-100% LINE_RGB GREEN 4 000-255 0-100% LINE_RGB BLUE 4 000-255 0-100% LINE_RGB RED 5 000-255 0-100% LINE_RGB GREEN 5 000-255 0-100% LINE_RGB BLUE 5 000-255 0-100% LINE_RGB RED 6 000-255 0-100%...
  • Page 44 LINE_RGB RED 13 000-255 0-100% LINE_RGB GREEN 13 000-255 0-100% LINE_RGB BLUE 13 000-255 0-100% LINE_RGB RED 14 000-255 0-100% LINE_RGB GREEN 14 000-255 0-100% LINE_RGB BLUE 14 000-255 0-100% LINE_RGB RED 15 000-255 0-100% LINE_RGB GREEN 15 000-255 0-100% LINE_RGB BLUE 15 000-255 0-100%...
  • Page 45 LINE_RGB BLUE 22 000-255 0-100% LINE_RGB RED 23 000-255 0-100% LINE_RGB GREEN 23 000-255 0-100% LINE_RGB BLUE 23 000-255 0-100% LINE_RGB RED 24 000-255 0-100% LINE_RGB GREEN 24 000-255 0-100% LINE_RGB BLUE 24 000-255 0-100% 170 Channels Mode Function Value Function Tilt 000-255...
  • Page 46 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231 Fast Open Slow Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255 Open 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181...
  • Page 47 1200Hz 1300Hz 1400Hz 1500Hz 2500Hz 4000Hz 5000Hz 6000Hz 10KHz 15KHz 20KHz 25KHz 138-139 Null 140-149 Tilt Reset 150-159 Effect Reset 160-169 CCT Calibration: On 170-179 CCT Calibration: Off 180-199 Null 200-209 All Reset 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Smooth 230-239 Line Power Mode: Off 240-249...
  • Page 48 MAIN BLUE 2 000-255 0-100% MAIN WHITE 2 000-255 0-100% MAIN RED 3 000-255 0-100% MAIN GREEN 3 000-255 0-100% MAIN BLUE 3 000-255 0-100% MAIN WHITE 3 000-255 0-100% MAIN RED 4 000-255 0-100% MAIN GREEN 4 000-255 0-100% MAIN BLUE 4 000-255 0-100%...
  • Page 49 MAIN WHITE 9 000-255 0-100% MAIN RED 10 000-255 0-100% MAIN GREEN 10 000-255 0-100% MAIN BLUE 10 000-255 0-100% MAIN WHITE 10 000-255 0-100% LINE_W CW 1 000-255 0-100% LINE_W WW 1 000-255 0-100% LINE_W CW 2 000-255 0-100% LINE_W WW 2 000-255 0-100%...
  • Page 50 LINE_W CW 13 000-255 0-100% LINE_W WW 13 000-255 0-100% LINE_W CW 14 000-255 0-100% LINE_W WW 14 000-255 0-100% LINE_W CW 15 000-255 0-100% LINE_W WW 15 000-255 0-100% LINE_W CW 16 000-255 0-100% LINE_W WW 16 000-255 0-100% LINE_W CW 17 000-255 0-100%...
  • Page 51 LINE_RGB BLUE 2 000-255 0-100% LINE_RGB RED 3 000-255 0-100% LINE_RGB GREEN 3 000-255 0-100% LINE_RGB BLUE 3 000-255 0-100% LINE_RGB RED 4 000-255 0-100% LINE_RGB GREEN 4 000-255 0-100% LINE_RGB BLUE 4 000-255 0-100% LINE_RGB RED 5 000-255 0-100% LINE_RGB GREEN 5 000-255 0-100%...
  • Page 52 LINE_RGB GREEN 12 000-255 0-100% LINE_RGB BLUE 12 000-255 0-100% LINE_RGB RED 13 000-255 0-100% LINE_RGB GREEN 13 000-255 0-100% LINE_RGB BLUE 13 000-255 0-100% LINE_RGB RED 14 000-255 0-100% LINE_RGB GREEN 14 000-255 0-100% LINE_RGB BLUE 14 000-255 0-100% LINE_RGB RED 15 000-255 0-100%...

  • Page 53: Troubelshooting

    LINE_RGB RED 22 000-255 0-100% LINE_RGB GREEN 22 000-255 0-100% LINE_RGB BLUE 22 000-255 0-100% LINE_RGB RED 23 000-255 0-100% LINE_RGB GREEN 23 000-255 0-100% LINE_RGB BLUE 23 000-255 0-100% LINE_RGB RED 24 000-255 0-100% LINE_RGB GREEN 24 000-255 0-100% LINE_RGB BLUE 24 000-255 0-100%...

  • Page 54: Cleaning And Maintenance

    cables that may cause damage or interference to DMX interface circuit. C. One of the channels is not working well 1. The stepper motor might be damaged or the cable connected to the PCB is broken. 2. The motor’s drive IC on the PCB might be out of condition. D.
  • Page 55 Frequent cleaning is recommended to insure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics. Clean the external lens surface at least every 20 days with a soft cloth •...
