EAE EE-MS12M Installation, Operation, And Parts Manual

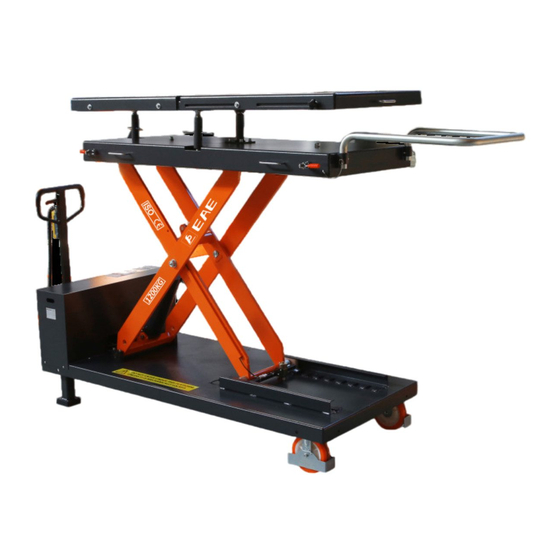

Mobile lifting table lifting capacity, 1200kg/2700lbs
Hide thumbs

Advertisement

Quick Links

Download this manual
Model No. EE-MS12M
TRANSLATED VERSION
Mobile Lifting Table
Installation, Operation
Lifting Capacity, 1200KG/2700lbs.
and Parts Manual
Distributed by
Please read this entire manual carefully and completely before installation or operation of the lift.
13/07/2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the EE-MS12M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EAE EE-MS12M

Summary of Contents for EAE EE-MS12M

  • Page 1 Model No. EE-MS12M TRANSLATED VERSION Mobile Lifting Table Installation, Operation Lifting Capacity, 1200KG/2700lbs. and Parts Manual Distributed by Please read this entire manual carefully and completely before installation or operation of the lift. 13/07/2024...

  • Page 2: Important Notes

    Liability The liability of EAE is limit to the amount that the customer has actually paid for this product. This exclusion of liability does not apply to damages caused through willful misconduct or gross negligence on the part of EAE.

  • Page 3: Table Of Contents

    Installation, Operation and Parts Manual EE-MS12M IMPORTANT NOTES .............................. 2 SAFETY NOTES ..............................4 1.1 Operation of the lifting table ............................4 1.2 Checking of the lifting platforms ..........................4 1.3 Important safety notices ............................... 4 1.4 Noise ..................................... 5 1.5 Warning labels ................................

  • Page 4: Safety Notes

    Installation, Operation and Parts Manual EE-MS12M SAFETY NOTES 1.1 Operation of the lifting table This mobile lifting table is designed for dismantling and fixing batteries of electric vehicles as well as engine, gearbox, drive axle, fuel tank, suspension, bracket and chassis components of traditional vehicles. Users are not allowed to use it for any other purposes. The applicable national regulations, laws and directives must be observed.

  • Page 5: Noise

    Installation, Operation and Parts Manual EE-MS12M 1.3.11 Wear the appropriate personal protection equipment when moving the lifting table such as safety helmet, safety shoes, safty gloves, etc. 1.3.11 If the lift is going to be left unused for a long time, users are required to: a.

  • Page 6: Packing, Storage And Transportation

    Installation, Operation and Parts Manual EE-MS12M PACKING, STORAGE AND TRANSPORTATION Packing, lifting, handling, transporting operations must be performed only by experienced personnel with appropriate knowledge of the lift and after reading this manual. 2.1 The lift was packed as whole for transportation...

  • Page 7: Product Descriptions

    Installation, Operation and Parts Manual EE-MS12M PRODUCT DESCRIPTIONS 3.1 General descriptions This mobile lifting table, which is hydraulic driven with mechanical safety locking protection, is designed for dismantling and fixing batteries of electric vehicles as well as engine, gearbox, drive axle, fuel tank, suspension, bracket and chassis components of traditional vehicles.

  • Page 8: Dimensions

    Installation, Operation and Parts Manual EE-MS12M 3.4 Dimensions...

  • Page 9: Installation

    Installation, Operation and Parts Manual EE-MS12M INSTALLATION ONLY TRAINED AND QUALIFIED INSTALLERS CAN PERFORM LIFT INSTALLATION DUTIES. Step 1: Remove the packing frames and take out accessories placed under the platform. Prepare 2 wooden battens with thickness being more than 100mm and length being more than 700mm. (other dependable devices may also applicable).
  • Page 10 Installation, Operation and Parts Manual EE-MS12M Step 3: Install the jack. Put the steel ball B into position as indicated in the following FIGURE. Untighten screw A attached with the component 3. Insert ball B into component 3. Connect component 3 and component 2 as indicated.

  • Page 11: Commission

    Installation, Operation and Parts Manual EE-MS12M COMMISSION Only authorized persons are allowed to operate the lifting table. Read and digest the complete operation instructions before operating the lifting table. 4.1 Fill the oil reservoir with hydraulic oil ONLY CLEAN AND FRESH OIL ONLY Lift must be fully lowered before changing or adding hydraulic oil.

  • Page 12: Control Button Descriptions

    Installation, Operation and Parts Manual EE-MS12M repaired. - Use the lifting table after reading the instruction manual carefully and understand the contents of them for safe and proper use. 4.3 Control button descriptions Pos. Description Function Main switch Turn on or off the main power supply...
  • Page 13 Installation, Operation and Parts Manual EE-MS12M Pos. Description Functions Hand-held control unit Control raising and lowering movement. The lower platform can be horizontally moved within 40mm by releasing the grips. When there is a slight deviation to align the fixture, release the grip and the lower...

  • Page 14: Trouble Shooting

    Installation, Operation and Parts Manual EE-MS12M TROUBLE SHOOTING ATTENTION: If the trouble could not be fixed by yourself, please do not hesitate to contact us for help .We will offer our service at the earliest time we can. By the way, your troubles will be judged and solved much faster if you could provide us more details or pictures of the trouble.

  • Page 15: Maintenance

    Installation, Operation and Parts Manual EE-MS12M MAINTENANCE Easy and low cost routine maintenance can ensure the lift work normally and safely. Following are requirements for routine maintenance. 1. Lubrication before first use Lubricate the moving parts with NO.1 lithium grease. Regularly add grease for every 3 months.

  • Page 16: Annex 1, Electrical Diagrams And Parts List

    Installation, Operation and Parts Manual EE-MS12M Annex 1, Electrical diagrams and parts list...
  • Page 17 Installation, Operation and Parts Manual EE-MS12M...
  • Page 18 Installation, Operation and Parts Manual EE-MS12M...
  • Page 19 Installation, Operation and Parts Manual EE-MS12M Component Code Code Descriptions Specification SB1,SB2,SB3,SB4 320307035 Hand-held control COP-4B 321301026 PCB circuit board AC24V/DI-11/DO-9 320901011 AC contactor CJX2-1810/AC24V 320301011 Limit switch TZ8108 320802001 Circuit breaker DZ47-63C32/2P(NXB-63C32/2P) 320307036 Power switch LW26-20GS/04-1 321800001 Indicating lamp...

  • Page 20: Annex 2, Hydraulic Diagrams And Parts List

    Installation, Operation and Parts Manual EE-MS12M Annex 2, Hydraulic diagrams and parts list Steel reservoir Filter Motor Gear pump Relief valve Non-return valve Spool of the solenoid valve Pressure make-up valve Spool of the solenoid valve Pressure make-up valve Cylinder connector...
  • Page 21 Installation, Operation and Parts Manual EE-MS12M Pos. Code Descriptions Specification 320204292 Motor 100V-1.5KW-1PH-50HZ-60HZ-4P 320204236 Motor 220V-1.5KW -1PH-50HZ-4P 320204237 Motor 220V-1.5KW -1PH-60HZ-4P 320204238 Motor 230V-1.5KW -1PH-50HZ-4P 320204239 Motor 110V-1.5KW -1PH-60HZ-4P 320204240 Motor 240V-1.5KW -1PH-50HZ-4P 330404006 Coupling 48mm（YBZ-F2.1D4H1/1-03） 207101100 O-seal ring EKM,6.5*1.5...
  • Page 22 Installation, Operation and Parts Manual EE-MS12M Pos. Code Descriptions Specification 203204102 Locking nut FHLM-1/2-20UNF 330311005 Valve spool of the solenoid valve 24DC(Keta)（LSV-08-2NCP-M-2H） 330308034 Pressure compensating valve BL-I1.2 330105015 Hydraulic block LBZ-T202FK-1 202109024 Hex socket cylinder head screw M6X35-GB70_1 690305227 Split washer...

  • Page 23: Annex 3, Exploded Mechanical Drawings And Parts List

    Installation, Operation and Parts Manual EE-MS12M Pos. Code Descriptions Specification 622034432 Power unit 100V-1.5kW-1PH-50HZ-60HZ 622034263 Power unit 220V/230V-1.5kW-1PH-50HZ 622034276 Power unit 220V-1.5kW-1PH-60HZ 622034306 Power unit 110V-1.5kW-1PH-50HZ 622034265 Power unit 110V-1.5kW-1PH-60HZ 310101010 Straight connector G1/4---G1/4 207103025 Bonded washer 13_7X20X1_5 624008148 Oil hose...
  • Page 24 Installation, Operation and Parts Manual EE-MS12M Pos. Code Descriptions Specification 208107015 Levelling bubble scale BFHD-3412 204101006 Flat washer D10-GB93 204101006 Flat washer D10-GB95 201104001 Large washer D10-GB96 204101009 Flat washer D16-GB95 206101014 Cylindrical pin D16X25-GB119_2 204101011 Flat washer D20-GB95 204301007...
  • Page 25 Installation, Operation and Parts Manual EE-MS12M Pos. Code Descriptions Specification 205103004 Flange bearing 3026-SF-1F 205101054 Bearing 3030-SF-2X 204101012 Flat washer D24-GB95 204301009 Circlip D25-GB894_2 204301010 Circlip D28-GB894_2 204201003 Spring washer D6-GB93 204101004 Flat washer D6-GB95 330310018 Electromagnet DCT45X20 203103007 Hex locking nut...
  • Page 26 Installation, Operation and Parts Manual EE-MS12M Pos. Code Descriptions Specification 614059203 Outside support arm MS12AC-A2-B2 614059204 Inside support arm MS12AC-A2-B3 420560050 Sliding block MS12AC-A2-B4 410562291 Middle shaft of the support bracket MS12AC-A2-B5 410562301 Downside shaft of the cylinder MS12AC-A2-B7 410562311...
  • Page 27 Installation, Operation and Parts Manual EE-MS12M Pos. Code Descriptions Specification 204101006 Flat washer D10-GB93 204101006 Flat washer D10-GB95 204101008 Flat washer D14-GB95 204201003 Spring washer D6-GB93 204101004 Flat washer D6-GB95 204201004 Spring washer D8-GB93 204101005 Flat washer D8-GB95 203103007 Hex locking nut...
  • Page 28 Installation, Operation and Parts Manual EE-MS12M Optional Adapter 1 Pos. Code Descriptions Specification 208109024 Adjustable foot D80-M20x100 202205013 Hex socket tight screw M12x30 410562011 Pad plate MS10-A08-B01 410563381 Support rod MS10-A08-B02 Optional Adapter 2 Pos. Code Descriptions Specification 202205013 Hex socket tight screw...
