- Page 1 TRANSLATED VERSION Model No. EE-MS10 Installation, Operation Mobile Lifting Table ...
- Page 2 Installation, Operation and Parts Manual EE-MS10 IMPORTANT NOTES Before start up, connecting and operating EAE products, it is absolutely essential that the operating instructions/owner’s manual and, in particular the safety instructions are studied carefully. By doing so you can eliminate any uncertainties in handling EAE products and thus associated safety risks up front; something which is in the interest of you own safety and will ultimately help avoid damage to the device, When an EAE product is handed over to another person, not only the operating instructions but also the safety instructions and information on its designated use must be handed over to the person. By using the product you agree the following conditions: Copy right The enclosed instructions are the property of EAE or its supplier, and are protected against duplication and reproduction by copyright laws, international agreements, and other domestic legislation. The reproduction or disclosure of instructions or an extract thereof is prohibited and offenders are liable to prosecution; EAE reserves the right or initiates criminal proceedings and asserts claims for damages in the event of infringements. Warranty The use of non‐approved hardware will result in a modification of our products and thus to the exclusion of any liability or warranty, even if such hardware has been removed again in the interim. It is not permissible to make any changes to our products and these are not only to be used together with genuine accessories and genuine replacement parts. Otherwise any warranty claims will be invalid. Liability The liability of EAE is limit to the amount that the customer has actually paid for this product. This exclusion of liability does not apply to damages caused through willful misconduct or gross negligence on the part of EAE. All information in this manual is believed to be correct at time of publication. EAE reserves the right to amend and alter technical data and composition without prior notice. Please confirm at time of ordering. ...
- Page 3 Installation, Operation and Parts Manual EE-MS10...
-
Page 4: Table Of Contents
Installation, Operation and Parts Manual EE-MS10 IMPORTANT NOTES .............................. 2 SAFETY NOTES ................................. 5 1.1 Operation of the lifting table ............................5 1.2 Checking of the lifting platforms ........................... 5 1.3 Important safety notices ............................... 5 1.4 Noise ..................................... 6 1.5 Warning labels ................................6 PACKING, STORAGE AND TRANSPORTATION ...................... 7 2.1 The lift was packed as whole for transportation ......................7 2.2 Storage ..................................7 2.3 Lifting and handling ..............................7 PRODUCT DESCRIPTIONS ............................ 7 3.1 General descriptions ..............................7 3.2 Construction of the lifting table ............................ 7 ... -
Page 5: Safety Notes

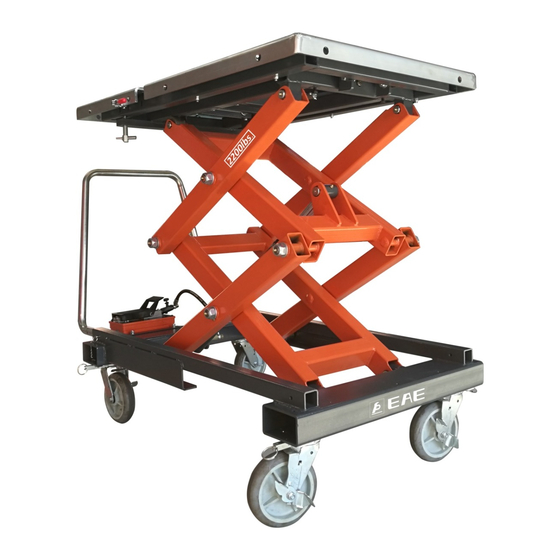

Installation, Operation and Parts Manual EE-MS10 SAFETY NOTES 1.1 Operation of the lifting table This mobile lifting table is designed for dismantling and fixing batteries of electric vehicles as well as engine, gearbox, drive axle, fuel tank, suspension, bracket and chassis components of traditional vehicles. Users are not allowed to use it for any other purposes. The applicable national regulations, laws and directives must be observed. Only users aged 18 or above who have been instructed on how to operate the lifting table and have proven their ability to do so to the owner are to be entrusted with unsupervised operation of the lifting table. The task of operating the lifting table must be granted in writing. Before loading onto the lifting table, users should study the original operation instructions and familiarize themselves with the operating procedures in several trial runs. Lift within the rated load. Don’t attempt to raise with excessive weight. 1.2 Checking of the lifting platforms Checks are to be based on the following directives and regulations: Basic principles for testing lifting tables The basic health and safety requirements Harmonized European standards The applicable accident prevention regulations The checks are to be organized by the user. The user is responsible for appointing an expert or qualified person to perform checking. It must be ensure that the person chosen satisfies the requirements. The user bears special responsibility if employees of the company are appointed as experts or qualified persons. 1.3 Important safety notices Recommend for indoor use only. DO not expose the lift to rain, snow or excessive moisture. Only use this lift where the altitude is within 1000 meters and where the foundation is stable and capable of sustaining the load. ... -
Page 6: Noise
Installation, Operation and Parts Manual EE-MS10 WARNING：The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. 1.4 Noise The noise during normal working is less than 70 dB 1.5 Warning labels All safety warning labels are clearly depicted on the lift to ensure that the operator is aware of and avoid the dangers of using the lift in an incorrect manner. The labels must be kept clean and they have to be replaced if detached or damaged. Please read carefully the meaning of each label and memories them for future operation. ... -
Page 7: Packing, Storage And Transportation
Installation, Operation and Parts Manual EE-MS10 PACKING, STORAGE AND TRANSPORTATION Packing, lifting, handling, transporting operations must be performed only by experienced personnel with appropriate knowledge of the lift and after reading this manual. 2.1 The lift was packed as whole for transportation Name Packed by Dimension(mm) Weight(kg) Quantity MS10 mobile lifting table Carton 1500x800x600 360 1 2.2 Storage The packs must be kept in a covered and protected area in a temperature range 0f ‐10℃to +40℃. They must not be exposed to direct sunlight, rain or water. Stacking the packs We advise against stacking because the packs are not designed for this type of storage. 2.3 Lifting and handling The packs can be lifted and transported only by using lift trucks. Opening the packs ... -
Page 8: Dimensions
Installation, Operation and Parts Manual EE-MS10 3.3 Dimensions 3.4 Technical data Model EE‐MS10 Rated capacity 1000kg Air supply 6‐8 bar Full rise time with rated load Approx. 110s Full descent time with rated load Approx. 30s（adjustable） Hydraulic pressure 20MPa Oil reservoir 1.5L ... -
Page 9: Operation Instructions
Installation, Operation and Parts Manual EE-MS10 OPERATION INSTRUCTIONS 4.1 Precautions ‐ Read and digest the complete operation instructions before operating the lifting table; ‐ Permit only trained personnel to operate the lifting table so as to avoid personal injury and/or property damage; ‐ Check the hydraulic connection to ensure no leakage before commissioning; ‐ Do not use on a slope of greater than 2.5 %; ‐ Do not use outdoor in strong breeze with the wind speed being more than 14 m/s; ‐ Only use this lifting table on a surface that is stable, level and dry and not slippery, and capable of sustaining the load; ‐ It is for carrying goods only. No person is allowed to stand or sit on the lift table. Travelling on the load carrying devices is forbidden; ‐ Before loading, run the lift without load for a complete cycle to ensure it is in good condition; ‐ Do not try to carry load with excessive weight; Gravity of the load should be centered over the lifting platform; ‐ The load carrying device shall be observed by the operator throughout the motion of the lift; ‐ Avoid excessive rocking of the raised load while on the lifting table; ‐ Lock the casters when park the lifting table; ‐ Keep hands, feet and other parts of the body away from the moving parts to avoid pinching or shearing. 4.2 Operation instructions ∙Release the pin and pull the flexible section of the platform so as to extend the lifting platform when you need to carry longer goods. Pay attention to restore the pin to the locked position before loading. ∙The load carrying platform can be tilted slightly by turning the adjustable device attached under the platform. ∙Park and brake the platform before loading. Release the brake when you try to move the table. ... -
Page 10: Trouble Shooting
Installation, Operation and Parts Manual EE-MS10 ∙Use the directional pin attached on the caster to transfer the moving direction. ∙Take the feet‐operated pump from its holder and place it onto a proper position where there is enough distance between the lifting platform and the operator. ∙Get familiar with lift controls by running the lift a few cycles before loading. Ascend Ensure the load is centered over the carrying table. 1. Push the lifting table under the load to be lifted. Lock the foot casters. 2. Pedal the “PUMP” side to raise the lifting platform until expected height. 3. Place the load. Ensure the load is centered over the carrying platform. Descend When lowering the lift pay careful attention that all personnel and objects are kept clear. 1. Pedal the “RELEASE” side at the pump for descent. DANGER: DO NOT MOVE WHILE THE LOAD IS RAISED AT PRETTY HIGH POSITION. DANGER: DO NOT ENTER UNDER THIS PLATFORM UNLESS IT IS MECHANICALLY LOCKED. DANGER: USE PROPER STRAPS TO KEEP THE LOAD ON THE PLATFORM FROM FALLING OFF BEFORE MOVING. TROUBLE SHOOTING ATTENTION: If the trouble could not be fixed by yourself, please do not hesitate to contact us for help .We will offer our service at the earliest time we can. By the way, your troubles will be judged and solved much faster if you could provide us more details or pictures of the trouble. TROUBLES POSSIBLE CAUSES ... -
Page 11: Maintenance
Installation, Operation and Parts Manual EE-MS10 MAINTENANCE Easy and low cost routine maintenance can ensure the lift work normally and safely. Following are requirements for routine maintenance. You may choose the frequency of routine maintenance by consulting your lift’s working conditions and time. DON NOT ENTER UNDER THIS PLATFORM UNLESS IT IS MECHANICALLY LOCKED Use proper device to prevent the lifting platform from collapse before you enter under the platform foe maintenance work. S/N ITEM METHODS PERIOD 1 Surface of load carrying platform Mob it clean. when necessary 2 Bearings ... -
Page 12: Annex 1, Hydraulic Scheme And Parts List
Installation, Operation and Parts Manual EE-MS10 Annex 1, Hydraulic scheme and parts list 1. Air supply 2. Pneumatic hydraulic pump 3. Restrictive valve 4. Composite hose fitting 5. Oil cylinder ... -
Page 13: Annex 2, Exploded Mechanical Drawings And Parts List
Installation, Operation and Parts Manual EE-MS10 Annex 2, Exploded mechanical drawings and parts list POS. CODE Description Specification Qty 1 204301009 Circlip D25‐GB894_1 2 2 204301011 Circlip D30‐GB894_1 2 3 615062107 Base frame assembly MS10‐A01 1 4 615062108 Support arm assembly MS10‐A02 1 5 615062109 ... - Page 14 Installation, Operation and Parts Manual EE-MS10 POS. CODE Description Specification Qty 1 208109015 Brake 208109015 4 2 206105002 Single steel ball pin BLPF8_55 2 ...
- Page 15 Installation, Operation and Parts Manual EE-MS10 POS. CODE Description Specification Qty 13 310101061B Straight fittng NPT3/8‐G1/4, L=60 1 14 615028003B Pneumatic driven hydraulic pump TL‐A5102‐5000PSI1 1 POS. CODE ...
- Page 16 Installation, Operation and Parts Manual EE-MS10 POS. CODE Description Specification Qty 13 410562161 Shaft of the sliding wheel MS10‐A02‐B08 4 14 410562543 Roll‐over prevention plate MS10‐A02‐B09 2 15 410562551 Shaft of the platform support holder MS10‐A02‐B10 2 16 410562141 Down sliding wheel MS10‐A02‐B11 2 ...
- Page 17 Installation, Operation and Parts Manual EE-MS10 POS. CODE Description Specification Qty 10 203103006 Hex tightening nut M8‐GB889 10 11 202109033 Cross socket cylinder head screw M8X40‐GB70 4 12 202111033 Cross socket flat head screw M8X65‐GB70‐3 6 13 202111034 Cross socket flat head screw M8X80‐GB70‐3 4 14 614059109 Tilting platform assembly MS10‐A03‐B01 1 15 ...
