04/ Using the DMX Interface

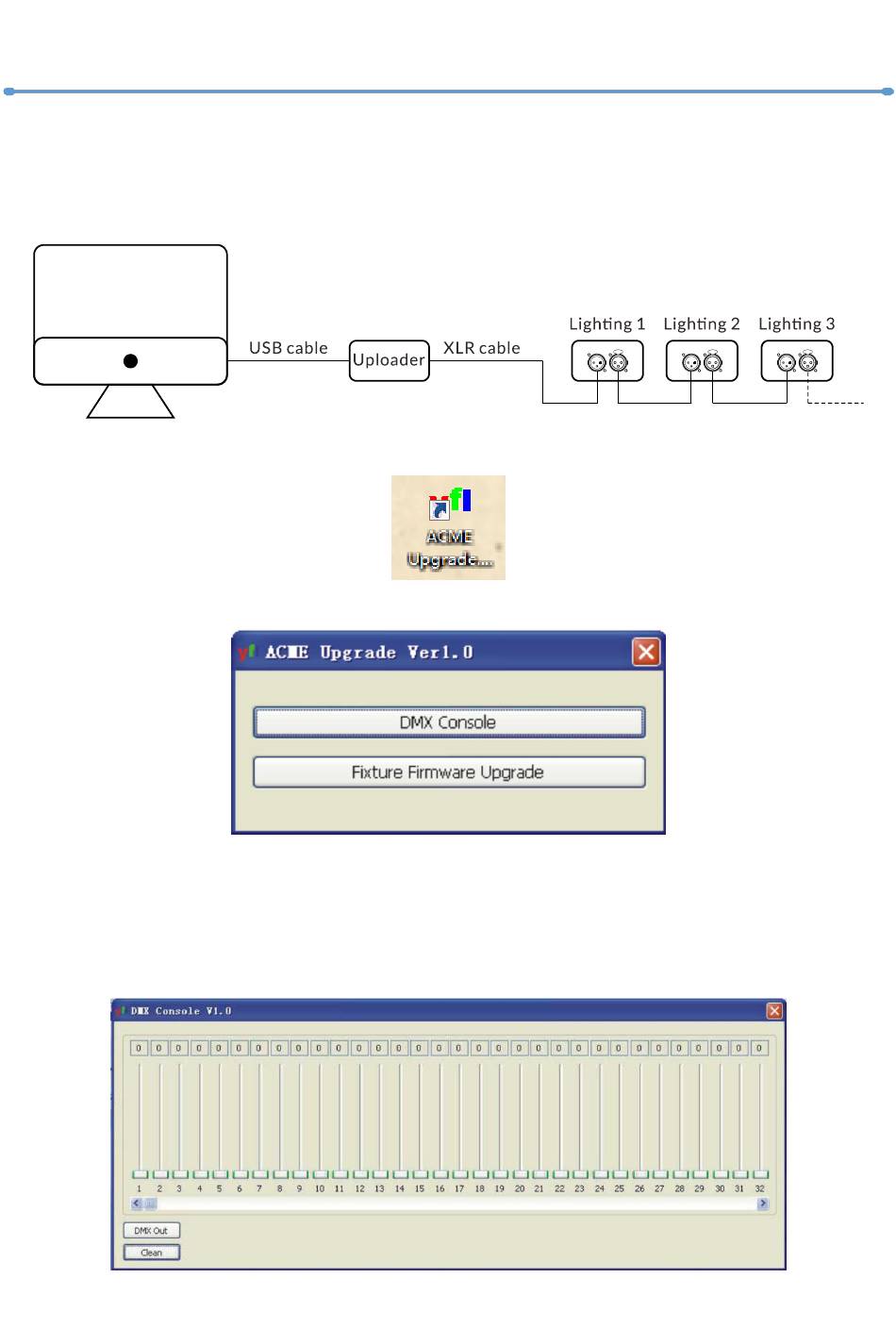

1. Use the USB cable to connect the Uploader device to a personal computer that has the
Uploader application software installed on it.
2. Connect the Uploader device to lighting fixtures via a DMX network.
3. Start the Uploader application.
4. Click "DMX Console".
The green LED signal indicator on the Uploader device will light up and the DMX console
window will appear. Click "DMX Out" to start sending DMX output. The red LED signal
indicator on the Uploader device will light up. Use the sliders on any of the 512 available
channels to adjust DMX values. To clear all settings, click "Clean".
