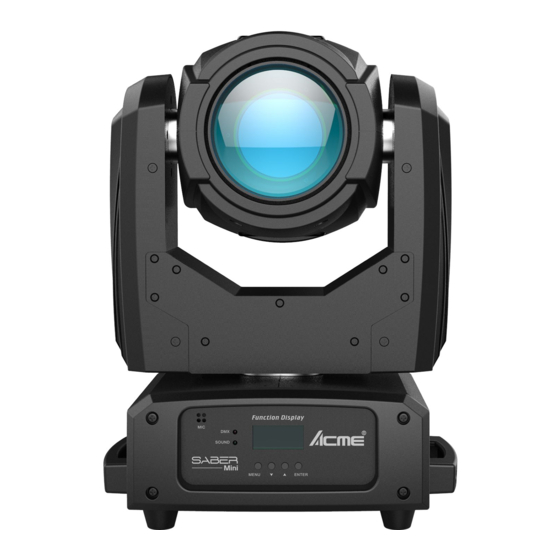

ACME SABER Mini User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME SABER Mini

Summary of Contents for ACME SABER Mini

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instruction ................... 2 2. Technical Specification ................4 3. Control Panel ..................5 4. Color/Gobo and Lamp ................6 4.1 Color/Gobo ..................6 4.2 Light Source ..................7 4.3 Change The Lamp ................7 5. How To Set The Unit ................9 5.1 Main Function...................

  • Page 3: Safety Instruction

    1. Safety Instruction Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables. ...

  • Page 5: Technical Specification

    2. Technical Specification Power Voltage: AC 100~240V, 50/60Hz Power Consumption: 200W Light Source: OSRAM SIRIUS HRI 100W Color Temperature: 9000K Beam Angle: 3° Movement: Pan: 540° Tilt: 270° Color Wheel: 1 color wheel with 14 colors plus open Gobo Wheel: 1 fixed gobo wheel with 15 gobos plus open Control: DMX Channel: 12 channels...

  • Page 6: Control Panel

    Dimension/Weight: 284x255x387mm, 9.2kgs 11.2”x10”x15.2”in, 20.3lbs Photometrics Diagram: 3. Control Panel...

  • Page 7: Color/Gobo And Lamp

    1. Button: MENU To select the programming functions DOWN To go forward in the selected functions To go backward in the selected functions ENTER To confirm the selected functions 2. MICROPHONE: To receive music for sound active 3. LED: DMX input present SOUND Flashing Sound activation...

  • Page 8: Light Source

    4.2 Light Source OSRAM SIRIUS HRI 100W Because of its high internal pressure, there might be a risk that the Discharge lamp  would explode during operation. The lamp emits intense UV radiation which is harmful to the eyes and skin. The high luminance of the arc can cause severe damage to the retina if you take a close look at the lamp.
  • Page 9 3. Lift the lamp out of its recess, disconnect the lamp and connect a new lamp that must be the same type with the old one. And then place the new lamp into the lamp recess. Finally reinstall the head cover, fastening it securely before reapplying power. Warning: The installing direction of lamp:...

  • Page 10: How To Set The Unit

    5. How To Set The Unit 5.1 Main Function Turn on the unit, press the MENU button into menu mode, press the UP/DOWN button until the required function is shown on the monitor. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu.
  • Page 12 DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512. Once the address has been selected, press the ENTER button to setup. Press and hold the MENU button for about one second or wait for 30 seconds to exit the menu mode.
  • Page 13 Pan Inverse To select Pan Inverse, press the ENTER button to confirm. Use the DOWN/UP button to select No or Yes. Once the mode has been selected, press the ENTER button to setup. Press and hold the MENU button about one second or wait for 30 seconds to exit the menu mode. Tilt Inverse To select Tilt Inverse, press the ENTER button to confirm.

  • Page 14: Home Position Adjustment

    Lamp On To select Lamp On, press the ENTER button to confirm. Use the DOWN/UP button to select On(Lamp on) or Off(Lamp off). Once selected, press the ENTER button to setup. Press and hold the MENU button about one second or wait for 30 seconds to exit the menu mode. Lamp Power On To select Lamp Power On, press the ENTER button to confirm.
  • Page 15 PAN OFFSET To select the Pan Offset, press the ENTER button to confirm. Use the DOWN/UP button to adjust the value from -127 to 127, press the ENTER button to store. Press the MENU button to exit. TILT OFFSET To select the Tilt Offset, press the ENTER button to confirm. Use the DOWN/UP button to adjust the value from -127 to 127, press the ENTER button to store.

  • Page 16: Control By Universal Dmx Controller

    6. Control By Universal DMX Controller 6.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 17: Address Setting

    6.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Address, press the ENTER button to confirm, the present address will blink on the display, use the UP/DOWN button to adjust the address from 1 to 512, press the ENTER button to store.
  • Page 18 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231 Fast Open Slow Close 232-239 Open 240-247 Random Strobe 248-255 Open COLOR 000-008 Open 009-016 Color1 017-025 Color2 026-033 Color3 034-042 Color4 043-050 Color5 051-059 Color6 060-067 Color7 068-076 Color8 077-084 Color9 085-093...
  • Page 19 081-084 Gobo5 Shaking 085-089 Gobo6 Shaking 090-093 Gobo7 Shaking 094-097 Gobo8 Shaking 098-101 Gobo9 Shaking 102-105 Gobo10 Shaking 106-110 Gobo11 Shaking 111-114 Gobo12 Shaking 115-118 Gobo13 Shaking 119-122 Gobo14 Shaking 123-126 Gobo15 Shaking 128-189 Rotation: Fast to Slow 190-193 Stop 194-255 Rotation: Slow to Fast PRISM...

  • Page 20: Troubleshooting

    7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connect power and main fuse. 2.
  • Page 23 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55103-1: 2009+A1: 2012; EN 55103-2: 2009; EN 61000-3-2: 2014; EN 61000-3-3: 2013. &...
  • Page 24 Innovation, Quality, Performance...
