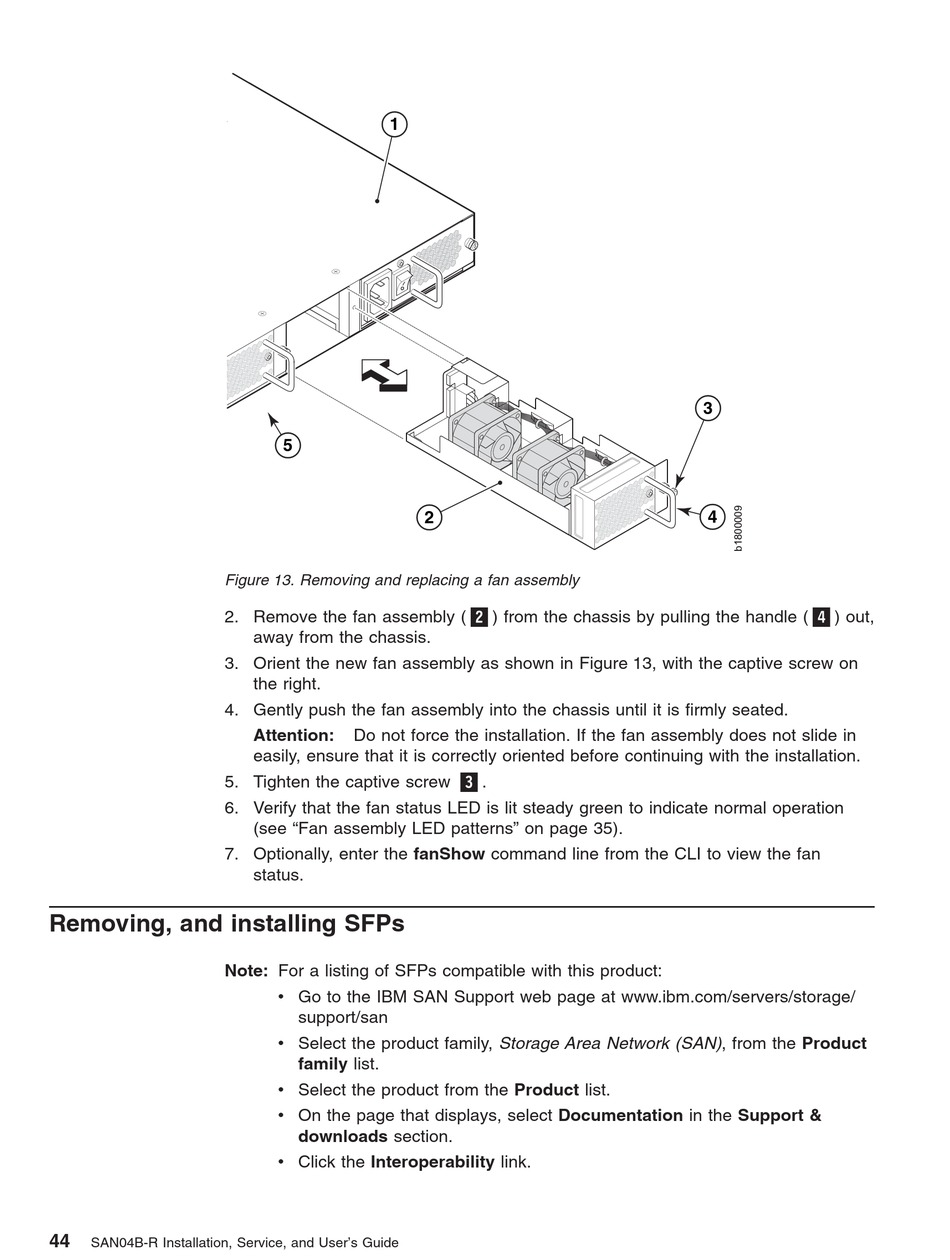

Figure 13. Removing and replacing a fan assembly
2. Remove the fan assembly ( 2 ) from the chassis by pulling the handle ( 4 ) out,
3. Orient the new fan assembly as shown in Figure 13, with the captive screw on
4. Gently push the fan assembly into the chassis until it is firmly seated.
5. Tighten the captive screw 3 .
6. Verify that the fan status LED is lit steady green to indicate normal operation
7. Optionally, enter the fanShow command line from the CLI to view the fan

Removing, and installing SFPs

Note: For a listing of SFPs compatible with this product:
44
SAN04B-R Installation, Service, and User's Guide
1
Scale: 1/4" = 1"
5
2
away from the chassis.
the right.
Attention: Do not force the installation. If the fan assembly does not slide in
easily, ensure that it is correctly oriented before continuing with the installation.
(see "Fan assembly LED patterns" on page 35).
status.
v Go to the IBM SAN Support web page at www.ibm.com/servers/storage/
support/san
v Select the product family, Storage Area Network (SAN), from the Product
family list.
v Select the product from the Product list.
v On the page that displays, select Documentation in the Support &
downloads section.
v Click the Interoperability link.
3
4
