Nonport side of the router

The nonport side of the router (see Figure 2) includes two hot-pluggable power
supplies ( 3 and 7 ). The power supplies are dual redundant, and each has a
power cord receptacle, a power switch, and a status LED. Each power supply is
secured with a captive screw and each has a handle to assist in removal and
replacement procedures. Three cooling fan assemblies 4 , 5 , and 6 are also
located on the nonport side. Each fan assembly contains two fans, and a fan status
LED near the handle. Each fan assembly is secured with a captive screw and each
has a handle to assist in removal and replacement procedures.
3

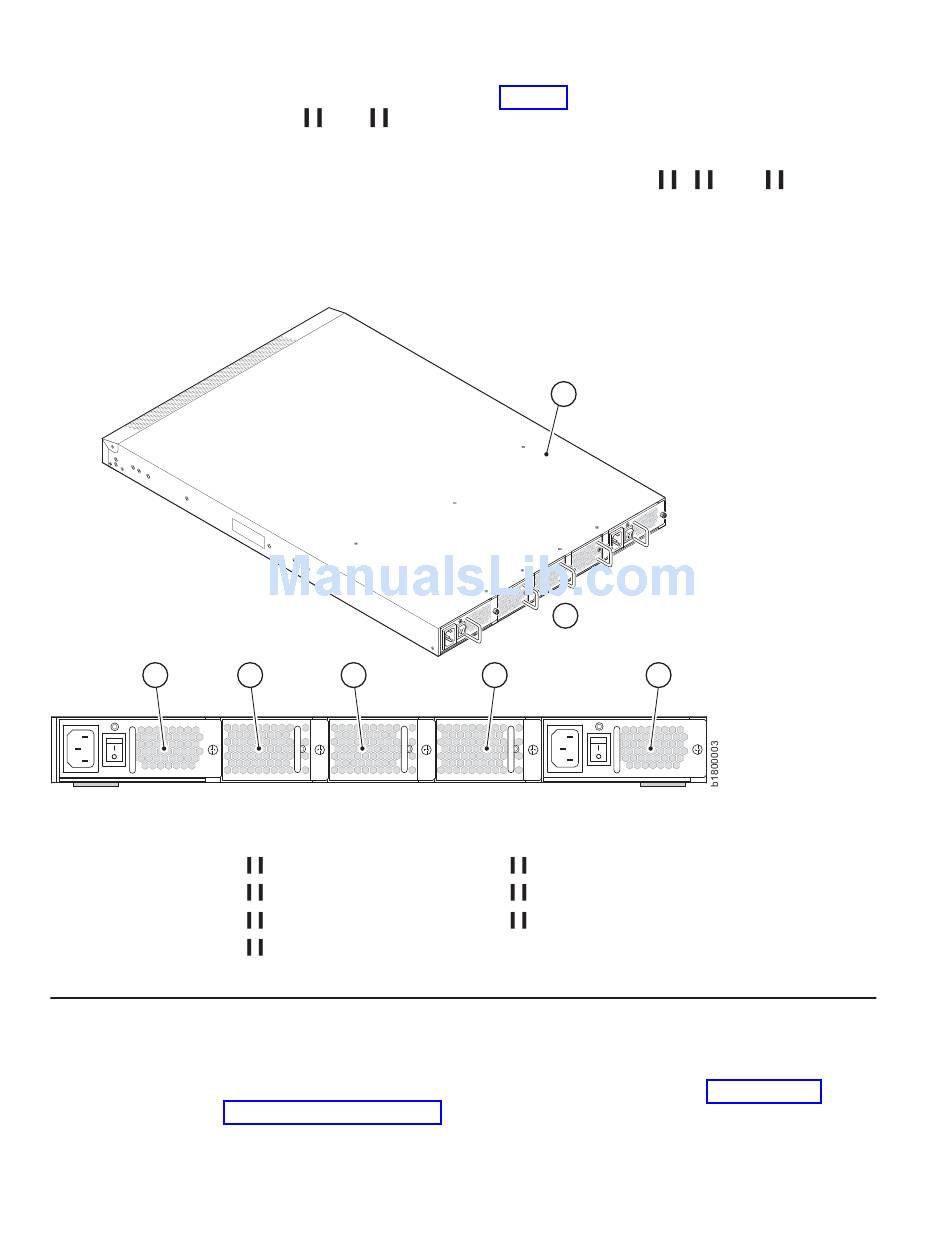

Figure 2. Nonport side of the router

Supported connectivity

Specific details on supported operating systems, servers, and devices, storage
products attachability, SAN connectivity products, and configuration options can be
found in the interoperability matrices at the following web site: www.ibm.com/
servers/storage/support/san.
6
SAN04B-R Installation, Service, and User's Guide
scale: 1/8" = 1"
A T
T E
M a N T
x im
m o IO
u m
u n N :
ti n s c re
g to
w le
b e
n g
5 m th
m fo r
o r ra c
1 3
/6 4 k
in .
4 5
1
Router chassis
2
Nonport side of chassis
3
Power supply #2
4
Fan assembly #3
1
2
6 7
scale: 5/16" = 1"
5
Fan assembly #2
6
Fan assembly #1
7
Power supply #1
