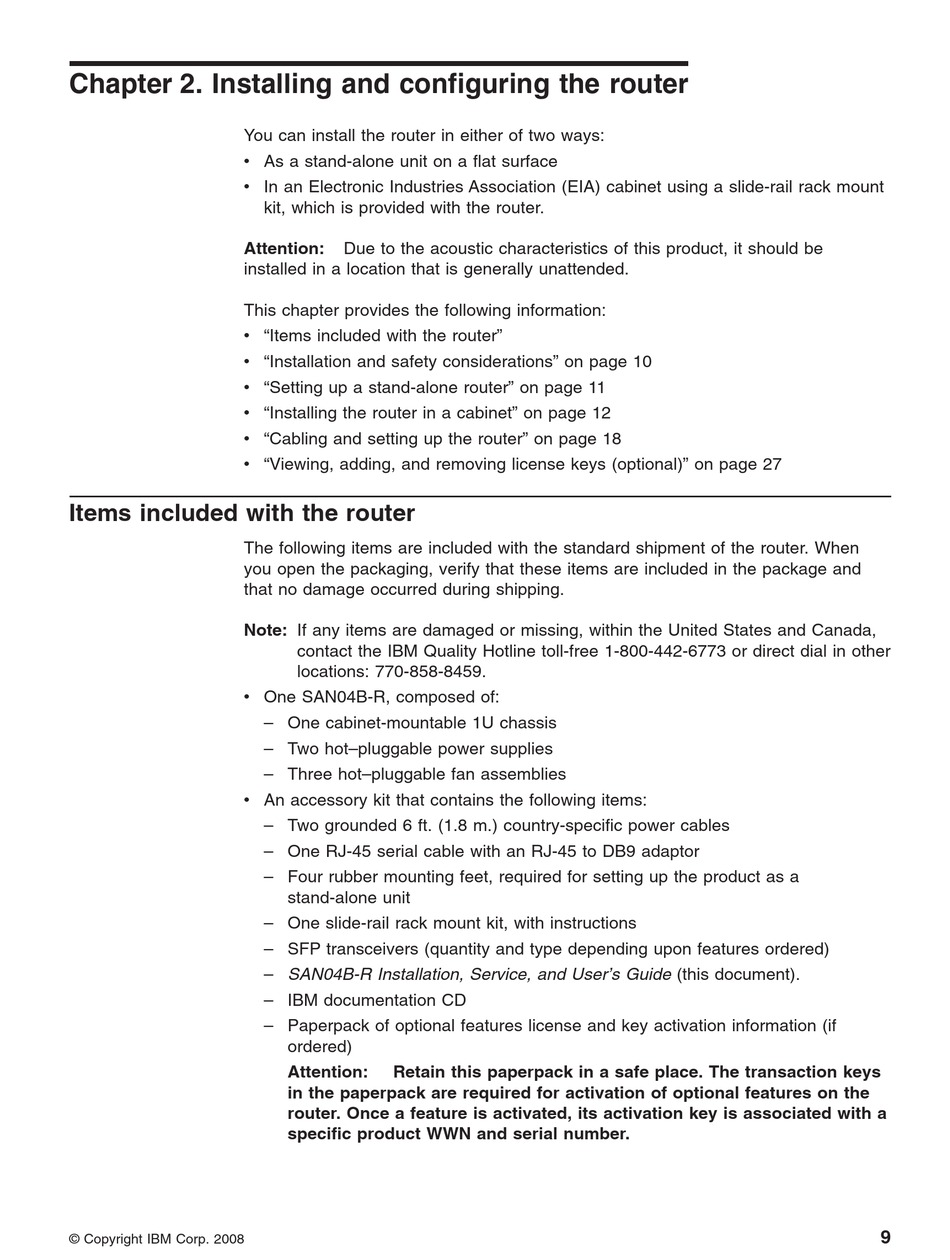

Chapter 2. Installing and configuring the router

You can install the router in either of two ways:
v As a stand-alone unit on a flat surface
v In an Electronic Industries Association (EIA) cabinet using a slide-rail rack mount
Attention:
installed in a location that is generally unattended.
This chapter provides the following information:
v "Items included with the router"
v "Installation and safety considerations" on page 10
v "Setting up a stand-alone router" on page 11
v "Installing the router in a cabinet" on page 12
v "Cabling and setting up the router" on page 18
v "Viewing, adding, and removing license keys (optional)" on page 27

Items included with the router

The following items are included with the standard shipment of the router. When
you open the packaging, verify that these items are included in the package and
that no damage occurred during shipping.
Note: If any items are damaged or missing, within the United States and Canada,
v One SAN04B-R, composed of:
v An accessory kit that contains the following items:
© Copyright IBM Corp. 2008
kit, which is provided with the router.
Due to the acoustic characteristics of this product, it should be
contact the IBM Quality Hotline toll-free 1-800-442-6773 or direct dial in other
locations: 770-858-8459.
– One cabinet-mountable 1U chassis
– Two hot–pluggable power supplies
– Three hot–pluggable fan assemblies
– Two grounded 6 ft. (1.8 m.) country-specific power cables
– One RJ-45 serial cable with an RJ-45 to DB9 adaptor
– Four rubber mounting feet, required for setting up the product as a
stand-alone unit
– One slide-rail rack mount kit, with instructions
– SFP transceivers (quantity and type depending upon features ordered)
– SAN04B-R Installation, Service, and User's Guide (this document).
– IBM documentation CD
– Paperpack of optional features license and key activation information (if
ordered)
Attention: Retain this paperpack in a safe place. The transaction keys
in the paperpack are required for activation of optional features on the
router. Once a feature is activated, its activation key is associated with a
specific product WWN and serial number.
9
