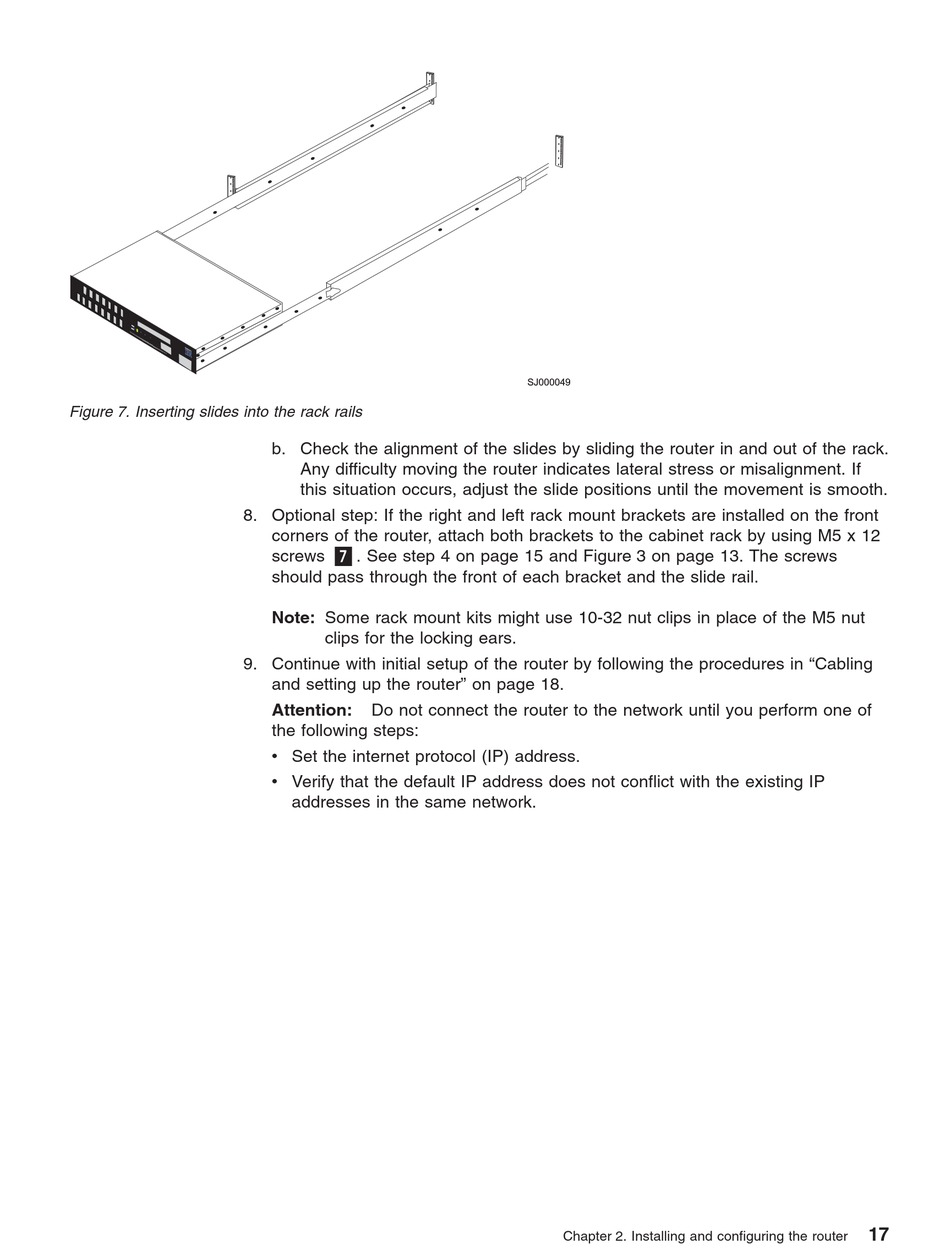

Figure 7. Inserting slides into the rack rails
8. Optional step: If the right and left rack mount brackets are installed on the front
9. Continue with initial setup of the router by following the procedures in "Cabling
b. Check the alignment of the slides by sliding the router in and out of the rack.
Any difficulty moving the router indicates lateral stress or misalignment. If
this situation occurs, adjust the slide positions until the movement is smooth.
corners of the router, attach both brackets to the cabinet rack by using M5 x 12
screws 7 . See step 4 on page 15 and Figure 3 on page 13. The screws
should pass through the front of each bracket and the slide rail.
Note: Some rack mount kits might use 10-32 nut clips in place of the M5 nut
clips for the locking ears.
and setting up the router" on page 18.
Attention: Do not connect the router to the network until you perform one of
the following steps:
v Set the internet protocol (IP) address.
v Verify that the default IP address does not conflict with the existing IP
addresses in the same network.
