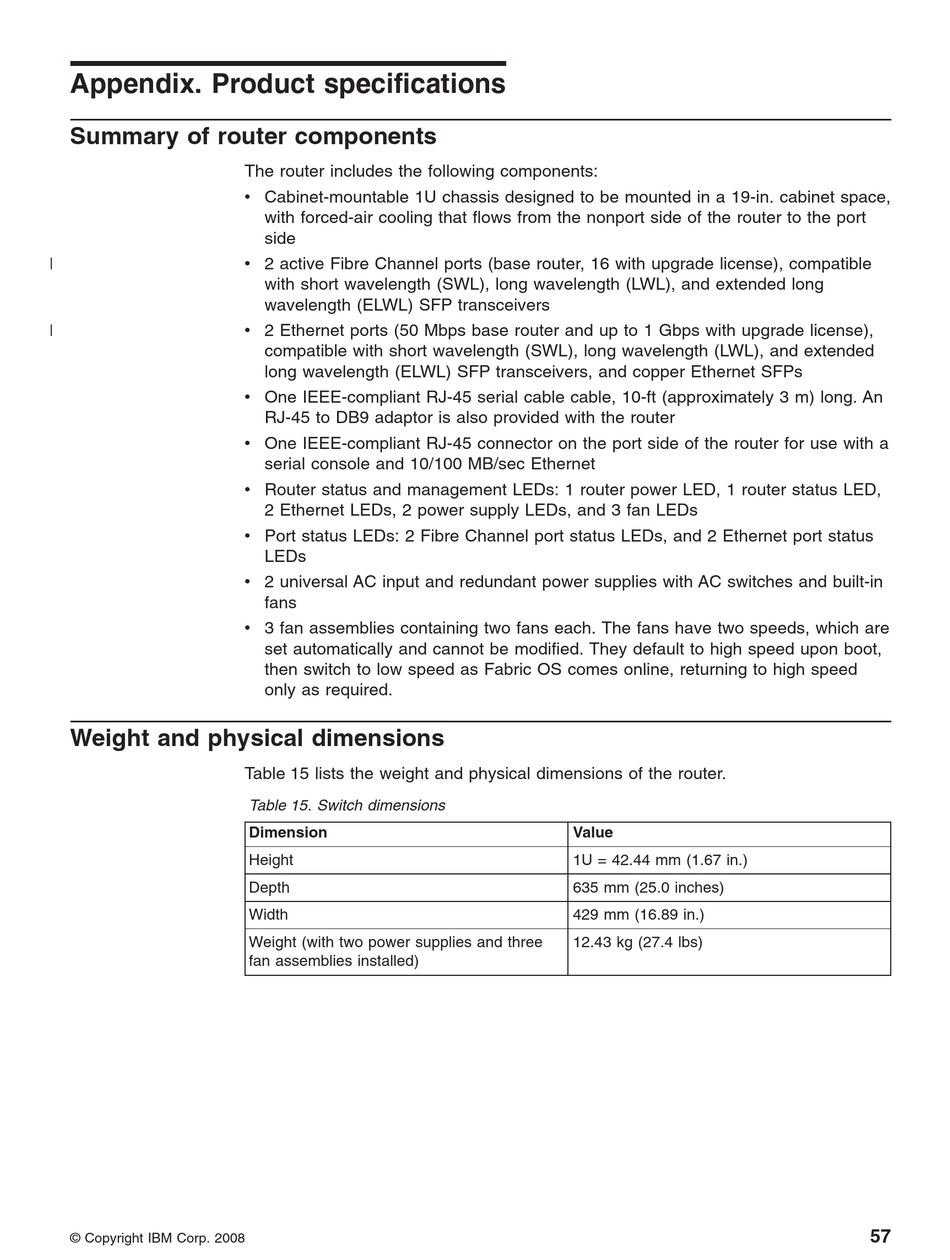

Appendix. Product specifications

Summary of router components

|
|

Weight and physical dimensions

© Copyright IBM Corp. 2008
The router includes the following components:
v Cabinet-mountable 1U chassis designed to be mounted in a 19-in. cabinet space,
with forced-air cooling that flows from the nonport side of the router to the port
side
v 2 active Fibre Channel ports (base router, 16 with upgrade license), compatible
with short wavelength (SWL), long wavelength (LWL), and extended long
wavelength (ELWL) SFP transceivers
v 2 Ethernet ports (50 Mbps base router and up to 1 Gbps with upgrade license),
compatible with short wavelength (SWL), long wavelength (LWL), and extended
long wavelength (ELWL) SFP transceivers, and copper Ethernet SFPs
v One IEEE-compliant RJ-45 serial cable cable, 10-ft (approximately 3 m) long. An
RJ-45 to DB9 adaptor is also provided with the router
v One IEEE-compliant RJ-45 connector on the port side of the router for use with a
serial console and 10/100 MB/sec Ethernet
v Router status and management LEDs: 1 router power LED, 1 router status LED,
2 Ethernet LEDs, 2 power supply LEDs, and 3 fan LEDs
v Port status LEDs: 2 Fibre Channel port status LEDs, and 2 Ethernet port status
LEDs
v 2 universal AC input and redundant power supplies with AC switches and built-in
fans
v 3 fan assemblies containing two fans each. The fans have two speeds, which are
set automatically and cannot be modified. They default to high speed upon boot,
then switch to low speed as Fabric OS comes online, returning to high speed
only as required.
Table 15 lists the weight and physical dimensions of the router.
Table 15. Switch dimensions
Dimension
Height
Depth
Width
Weight (with two power supplies and three
fan assemblies installed)
Value
1U = 42.44 mm (1.67 in.)
635 mm (25.0 inches)
429 mm (16.89 in.)
12.43 kg (27.4 lbs)
