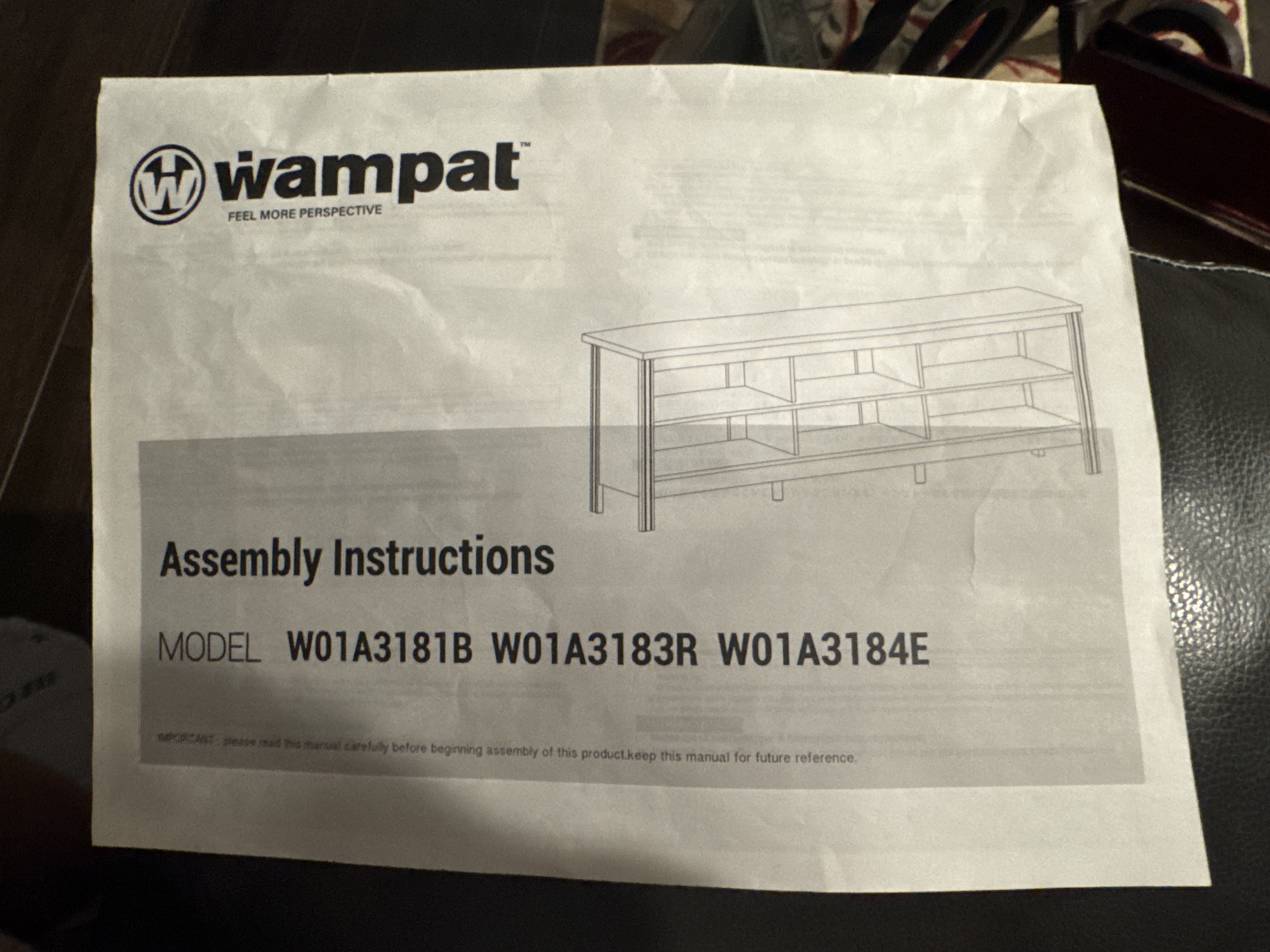

- Page 1 Assembly Instructions W01A3181B W01A3183R W01A3184E...
- Page 3 １...
- Page 4 CAM LOCK CAM BOLT WOOD DOWEL JCBCW SCREW x 44 x 44 x 16 STICKER M4 ALLEN KEY PVC NAIL WITH PIN SCREW Philips head Tools Required screwdriver (Not included) Hammer ２...
- Page 5 · Screw cam bolts(2) into legs(C ,D ,E ,F). ３...
- Page 6 · Insert dowels(3) into panel(B), then attach panels (D,F) to panel (B). · Insert and secure cam locks(1) to panel (B)to lock it. ４...
- Page 7 · Insert dowels(3) into panel(A), then attach panels (C,E) to panel (A). · Insert and secure cam locks(1) to panel(A) to lock it. ５...
- Page 8 x 14 · Screw cam bolts(2) into panels (A,B,E,F). ６...
- Page 9 The bottom · Screw cam bolts(2) into panel (H). ７...
- Page 10 Finished edge · Attach panels(J) to panel(H) using screws(4). The bottom ８...
- Page 11 Finished edge · Attach panels(K) to panel (H), then insert and secure cam locks(1) to panels(K) to lock it. ９...
- Page 12 The bottom · Screw cam bolts(2) into panel (I). １０...
- Page 13 The bottom · Attach panel(I) to panel(K) using screws(4). １１...
- Page 14 · Attach panels(L) to panel(I), then insert and secure cam locks(1) to panels(L) to lock it. １２...
- Page 15 · Insert dowels(3) into panels (H,I), then attach left side panel to panels (H,I,L). · Insert and secure cam locks(1) to panels (H,I,L) to lock it. １３...
- Page 16 Finished edge · Insert dowels(3) into panels (H,I), attach panel (L) to left side panel, then attach right side panel to panels (H,I,L). · Insert and secure cam locks(1) to panels (H,I,L) to lock it. １４...
- Page 17 · Attach leg(9) to panel(I) using screws(8). １５...
- Page 18 · Secure pins(7) to legs (C,D,E,F). １６...
- Page 19 · Screw cam bolts(2) into panel (G) . x 14 １７...
- Page 20 · Attach panel (G) to panels(A,B,J,L), then Insert and secure cam locks(1) to panels (A,B,J,L) to lock it . x 10 １8...
- Page 21 Step1 Step2 · Attach panels(M) to panel(G), then Insert and secure cam locks(1) to panels(M) to lock it. · Attach panels(M) to panels(H,J) using screws(4) . １9...
- Page 22 Final Assembly ・Adjust leg(9) to level the unit. ・ Stick sticker(5)on cam locks(1) 2 0...
