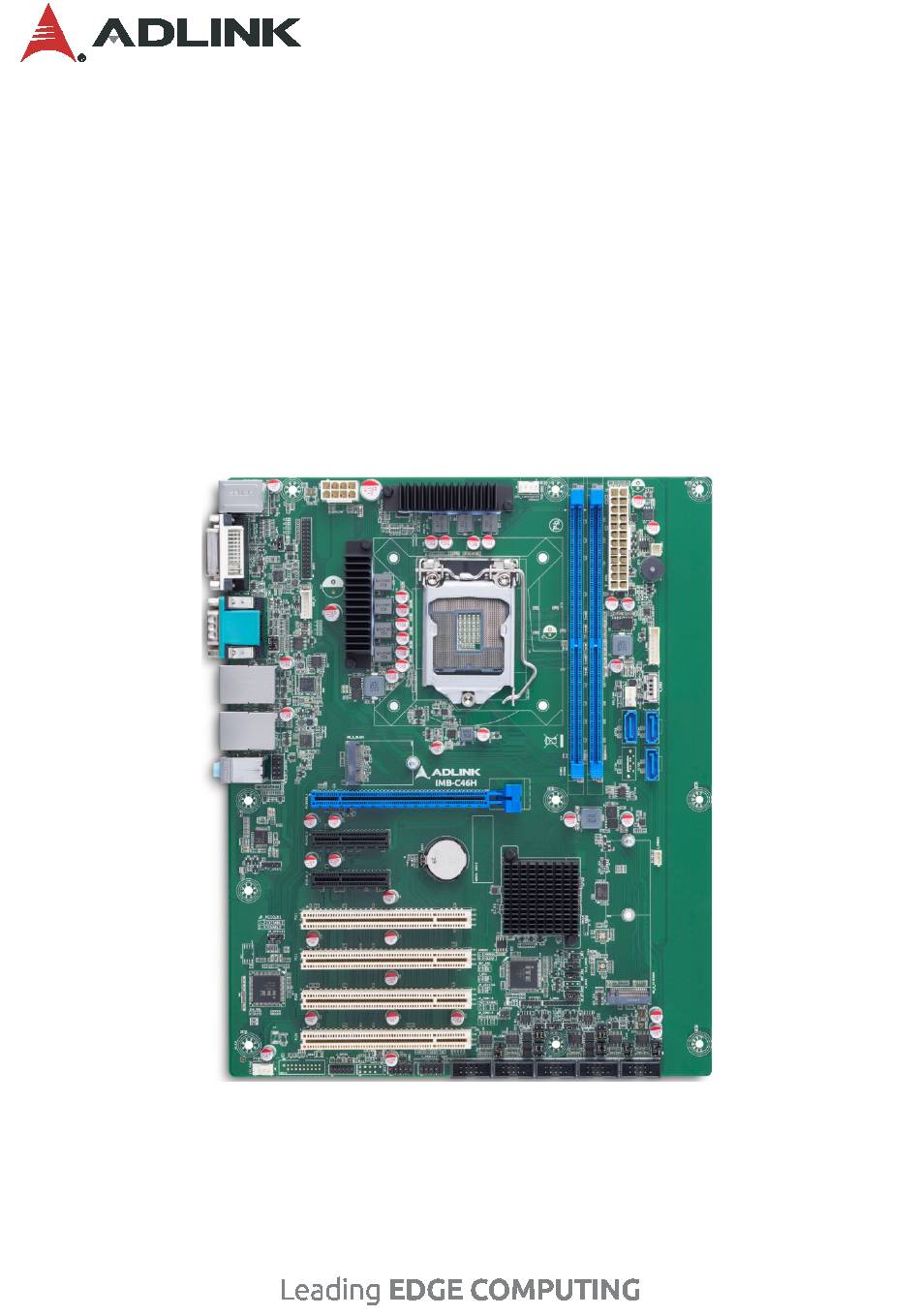

- Page 1 IMB-C46H User’s Manual ATX Motherboard with 10th Gen Intel ® Core™ i9/i7/i5/i3 Processors and Intel H420E Chipset ® Manual Rev.: 0.4 Preliminary Revision Date: October 8, 2024 Part Number: 50M-13018-1000...
-
Page 2: Environmental Responsibility
Preface Copyright Copyright 2024 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. -
Page 3: Revision History
IMB-C46H Revision History Revision Description Date Preliminary release 2024-08-05 IO panel and onboard connector images and tables updated 2024-09-04 Block diagram replaced 2024-10-01 Connector pinouts images added 2024-10-08 Preface... -
Page 4: Table Of Contents
Table of Contents Preface ..........................ii List of Figures ........................vi List of Tables ........................vi Introduction ........................ 1 Packing List ........................ 1 Optional Accessories ....................1 Specifications ......................3 Core System ....................... 3 I/O Interface ........................ 3 Video ........................... 4 Audio ........................... -
Page 5: Preface
IMB-C46H Save & Exit ....................... 38 Safety Instructions ......................39 Getting Services ....................... 40 Preface... - Page 6 List of Figures Figure 1: Functional Block Diagram ......................6 Figure 2: IO Panel Connector Locations ....................7 Figure 3: Onboard Connectors - Header and Jumper Locations .............8 Figure 4: Mechanical Dimensions ......................11 Figure 5: Mechanical Dimensions - IO Panel ..................11 List of Tables Table 1: IO Panel Connector Locations ....................7 Table 2: OnboardConnectors –...
-
Page 7: Introduction
It includes high-speed data transfer interfaces such as PCIe 3.0, USB 3.0, and SATA 6 Gb/s (SATA III), and dual-channel DDR4 2400/2666/2933 MHz RAM for industrial automation applications. With industrial-grade I/O port design, the IMB-C46H offers a significant competitive advantage for embedded computing applications in terms of device compatibility, durable connectivity, and extreme environment readiness. - Page 8 This page intentionally left blank. Introduction...
-
Page 9: Specifications
IMB-C46H 2 Specifications 2.1 Core System CPU: Intel® Core™ i9-10900E, 4.7GHz, 10 Core, 20M Cache, DDR4 2933MHz support, 65W • • Intel® Core™ i9-10900TE, 4.5GHz, 10 Core, 20M Cache, DDR4 2933MHz support, 35W • Intel® Core™ i7-10700E, 4.5GHz, 8 Core, 16M Cache, DDR4 2933MHz support, 65W Intel®... -
Page 10: Video
COM: • 1x RS-232 (COM1, rear I/O) 3x RS-232 (COM2/5/6, by internal header) • 2x RS-232/RS485 (COM3/4, by internal header) • PS/2 Combo Port: 1x PS/2 keyboard/mouse DIO: 8-bit GPIO M.2 connectors: 1x M.2 E-Key 2230 (PCIe Gen3 x1, USB 2.0) •... -
Page 11: Form Factor
IMB-C46H 2.9 Form Factor ATX: 305 mm x 244 mm (W x L) 2.10 Operating Systems Microsoft® Windows® 10, 64-bit Specifications... -
Page 12: Functional Block Diagram
2.11 Functional Block Diagram Figure 1: Functional Block Diagram PCIE4X_2 and M2_E_WLAN1 share PCIE signal (support M2_E_WLAN1 by default) • Specifications... -
Page 13: Mechanical Layout
IMB-C46H 3 Mechanical Layout 3.1 IO Panel Connector Locations Figure 2: IO Panel Connector Locations Table 1: IO Panel Connector Locations Item Location Description KBMS_USB1 (PS/2) PS/2 Connector (Keyboard & Mouse) DVI_VGA1 (DVI-D) DVI-I 24+4P/F Connector (Support DVI-D) COM1 COM1 DB9/M Connector... -
Page 14: Figure 3: Onboard Connectors - Header And Jumper Locations
24-1 24-2 18-2 18-3 18-1 35-1 35-2 37-1 37-2 37-3 37-4 Figure 3: Onboard Connectors - Header and Jumper Locations Mechanical Layout... -
Page 15: Table 2: Onboardconnectors - Header And Jumper Definitions
IMB-C46H Table 2: OnboardConnectors – Header and Jumper Definitions Item Description Remarks SYS_FAN2 System FAN2 Headers J_GPIO1 GPIO Header F_USB1 Front USB2.0 Header F_PANEL1 Front Panel Header J_COM2 COM2 Headers J_COM3 COM3 Headers J_COM4 COM4 Headers J_COM5 COM5 Headers J_COM6... - Page 16 CPU_FAN1 CPU Fan Wafer ATX2 ATX 8P CPU Power Input Connector EDP1 EDP Signal Header JC_EDP1 eDP VDD Select Jumper EDP_P1 eDP Backlight Control Header JC_COM1 COM1 DCD/5V+ RI/12V Select Jumper M2_E_WLAN1 M.2 Key-E Slot (PCIE+USB2.0, Support WIFI+ BlueTooth, 2230) F_AUDIO1 Front Audio Header PCIEX16_1...
-
Page 17: Mechanical Dimensions
IMB-C46H 3.2 Mechanical Dimensions Top View Dimensions: mm Figure 4: Mechanical Dimensions Side View Dimensions: mm Figure 5: Mechanical Dimensions - IO Panel Mechanical Layout... -
Page 18: Connector Pinouts
4 Connector Pinouts See 3.1 Connector Locations on page 7 for connector locations. Rear IO Connectors 4.1.1 HDMI Signal Signal HDMI1_CON_DP2 HDMI1_CON_DN2 HDMI1_CON_DP1 HDMI1_CON_DN1 HDMI1_CON_DP0 HDMI1_CON_DN0 HDMI1_CON_CKP HDMI1_CON_CKN HDMI1_DDC_CLK HDMI1_DDC_DATA +5V_HDMI HDMI1_CON_HPD 4.1.2 VGA Connector Signal Signal VGA_CON_RED VGA_CON_GREEN VGA_CON_BLUE +5V_HDMI VGA_DDCDAT VGA_CON_HS... -
Page 19: Ethernet Connectors (Lan1, Lan2)
IMB-C46H 4.1.4 Ethernet Connectors (LAN1, LAN2) RJ45_USB1-2 (LAN) * (GBE LAN RJ45 Connector1-2) Signal Signal MDI_0+ MDI2_2+ MDI_0- MDI2_2- MDI_1+ MDI3_2+ MDI_1- MDI3_3- 1000M: Turn Orange ACT: Twinkling Yellow LED1 Speed LED LED2 Active LED 100M: Turn Green Only LINK: Lights On... - Page 20 4.2.3 COM Header (J_COM 2-6) Signal Signal COM2_PIN1 [1] COM2_DSR# COM2_RXD COM2_RTS# J_COM2 COM2_TXD COM2_CTS# COM2_DTR# COM2_PIN8 [1] COM3_PIN1 [2] COM3_DSR# COM3_PIN3 [3] COM3_RTS# J_COM3 COM3_TXD COM3_CTS# COM3_DTR# COM3_PIN8 [2] COM4_PIN1 [4] [5] COM4_DSR# COM4_PIN3 [5] COM4_RTS# COM4_TXD COM4_CTS# J_COM4 COM4_DTR# COM4_PIN8 [4] COM5_PIN1 [6]...
-
Page 21: Usb Connectors
IMB-C46H 4.2.4 SATA Connector (SATA 2-4) Signal Description Signal Description Ground Receive diff data – negative Transmit diff data – positive Receive diff data – positive Transmit diff data – negative 7 Ground Ground 4.2.5 USB Connectors USB 2.0 Header (F_USB1) - Page 22 Signal Signal +5 V (Standby) +5 V +12 V +5 V +12 V +5 V 3.3V Ground 4.2.8 ATX2 Signal Signal Ground +12V Ground +12V Ground +12V Ground +12V 4.2.9 GPIO Header (J_GPIO1) Signal Signal SIO_GPI71 SIO_GPI70 (0xA06 Bit1, H [1]) (0xA06 Bit0, H [1]) SIO_GPI73 SIO_GPI72...
-
Page 23: Jumper And Switch Settings
IMB-C46H 4.2.11 SPDIF Header (F_SPDIF1) Signal Signal + 5V SPDIF_OUT Pin Header 4*1 Pin 2.54mm 4.2.12 SMBUS Header (J_SMBUS1) Signal Signal SMB_CLK SMB_DATA VCC5 [1] SMB Header 4*1 Pin 1.25mm Note: The power on this Pin is 5V by default, 3.3V is available if specified. (resistor selectable) 4.3 Jumper and Switch Settings... - Page 24 4.3.4 COM3 /4 RS232/RS485 Select Jumpers (JM_COM3-4) Setting Function RS485 1-3, 2-4(Default) (PIN1: RS485- PIN3: RS485+) RS232 3-5, 4-6 (PIN1: DCD PIN3: RXD) 4.3.5 ME Flash Jumper (J_ME1) Setting Function 1-2: Open (Default) ME Protect Enable 1-2: Connected ME Protect Disable Header 2*1 Pin 2.54mm 4.3.6 COM3-4 RS485 Signal 120Ω...
- Page 25 IMB-C46H 4.3.9 Power LED Header (J_PWR_LED1) Signal VCC3.3 PWR_LED_N [1] GPIO_R Header 4*1 Pin 2.54 mm Note: PWR_LED is controlled by SIO_GPIOSB. 4.3.10 Power Expand Wafer (J_PWR1) Signal Signal VCC5A VCC5S VCC3.3S VCC12_N VCC5N_S VCC12S Wafer 8*1 Pin 2.00mm 4.3.11 Power on Wafer (P_SON1)
-
Page 26: Expansion Slots
4.3.14 eDP Signal Header (EDP1) Signal Signal VDD_PANEL [1] VDD_PANEL [1] VDD_PANEL [1] EDP_HPD EDP_HPD EDP_TX3- EDP_TX3+ EDP_TX0- EDP_TX0+ EDP_TX1- EDP_TX1+ EDP_TX2- EDP_TX2+ EDP_AUX- EDP_AUX+ Header 15*2 Pin 2.00mm Note: Panel Power VDD can be 3.3V (default) /5V selectable by eDP VDD Select Jumper” (JC_EDP1). 4.3.15 PCI CLK 66MHz Enable/Disable Select Jumper (JP_PCICLK1) Setting Function... - Page 27 IMB-C46H 4.4.1 M.2 sockets: 4.4.1.1 M.2 Key-M (M_2_PCIESSD_M1) Connector Pinouts...
- Page 28 4.4.1.2 M.2 Key-E (M2_E_WLAN1) Connector Pinouts...
-
Page 29: Driver Installation
IMB-C46H 5 Driver Installation Download the requisite drivers for your system from the IMB-C46H product page at: https://www.adlinktech.com/Products/Industrial_Motherboards_SBCs/ATXMotherboards/IMB-C46H Driver Installation... - Page 30 This page intentionally left blank. Driver Installation...
-
Page 31: Bios Setup
IMB-C46H 6 BIOS Setup 6.1 Menu Structure This section presents the primary menus of the BIOS (UEFI) Setup Utility. Use the following table as a quick reference for the contents of the BIOS Setup Utility. The subsections describe the submenus and options for each menu item. -
Page 32: Main Menu
6.2 Main Menu Upon entering the BIOS Setup Utility, the Main Menu is displayed, providing read-only information about your system and also allows you to set the system date and time. Refer to the screenshots and tables below for details of the submenus and settings. -
Page 33: Power And Performance
IMB-C46H 6.3.2 Power and Performance Power and performance options. Feature Description CPU - Power CPU - Power Management Control Options. Management Control GT - Power Management GT - Power Management Control Options. Control 6.3.2.1 CPU-Power Management Control Feature... - Page 34 If this option is disabled, BIOS will leave the default values for Power Limit 4. Power Limit 4 Power Limit 4 in Milli Watts. BIOS will round to the nearest 1/8W when programming. For 12.50W, enter 12500. If the value is 0, BIOS leaves default value. Power Limit 4 Lock Power Limit 4 MSR 601h Lock.
- Page 35 IMB-C46H (TRLR) Non-Turbo Ratio, Max = fused turbo ratio, or 255 if CPU is unlocked for overclocking. This Core Ratio Limit2 is paired with Turbo Ratio NumCores2 and must be less than or equal to Core Ratio Limit0. Turbo Ratio Limit Ratio3 Turbo Ratio Limit Ratio3 with a range of (Max Non-Turbo Ratio - 255).
- Page 36 0x3. PS4 Enable Enable or Disable PS4. 0 - Disabled, 1 - Enabled. Uses BIOS VR mailbox command 0x3. IMON Slope IMON Slope defined in 1/100 increments. Range is 0-200. For a 1.25 slope, enter 125. 0 = AUTO. Uses BIOS VR mailbox command 0x4. IMON Offset IMON Offset defined in 1/1000 increments.
-
Page 37: Pch-Fw Configuration
IMB-C46H 6.3.2.1.3 Custom P-State Table Settings Feature Description Number of P states Sets the number of custom P-states. At least 2 states must be present. 6.3.2.1.4 Power Limit 3 Settings Feature Description Power Limit 3 Override Enable or disable Power Limit 3 Override. If this option is disabled, BIOS will leave the hardware default values for Power Limit 3 and Power Limit 3 Time Window. -
Page 38: Acpi Settings
Physical Presence Spec Select to inform the O.S. to support PPI Spec Version 1.2 or 1.3. Note some HCK Version tests might not support 1.3. TPM 2.0 Interface Type Selects the Communication Interface to TPM 2.0 device. Device Select TPM 1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to TPM 2.0 devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2 devices will be enumerated. - Page 39 IMB-C46H Set Up Chassis Open Detection: 1. Select “Advanced - Hard Monitor – CHASSIS OPEN” (This menu shows only that this function is supported). 2. Set the item to “Enabled.” Sound the alarm if the chassis is opened; stop if it’s closed.
-
Page 40: Usb Configuration
Change it from disabled status to fixed time; Set the point in time to customize the boot settings in the “wake up day, wake up hour, wake up minute, and wake up second” that appears. For example, setting day: 2, hour: 13, minute:0, second:0 means the system will boot on the 2nd of each month at 13:00. -
Page 41: Csm Configuration
IMB-C46H 6.3.12 CSM Configuration CSM (Compatibility Support Module) configuration: Enable/disable, option ROM execution settings, etc. Feature Description CSM Support Enables or Disables CSM Support. CSM16 Module Version CSM16 Module Version. GateA20 Active UPON REQUEST - GA20 can be disabled using BIOS services. ALWAYS - do not allow disabling GA20;... -
Page 42: Pch-Io Configuration
6.4.1 System Agent (SA) Configuration Feature Description Memory Configuration Memory Configuration Parameters. Graphics Configuration Graphics Configuration. 6.4.1.1 Memory Configuration Parameters Feature Description Memory Configuration Memory Configuration Parameters. 6.4.1.2 Graphics Configuration Feature Description Primary Display Select which of the IGFX/PEG/PCI Graphics devices should be the primary display or select SG for Switchable Gfx. -
Page 43: Security
IMB-C46H 6.4.2.3 USB Configuration Feature Description XHCI Compliance Mode Option to enable Compliance mode. Default is to disable Compliance mode. Change to enabled for Compliance Mode testing. USB Port Disable Override Selectively enables or disables the corresponding USB port from reporting a device connection to the controller. -
Page 44: Boot
To delete a user password, press the carriage return in the “Create New Password” window. 6.6 Boot This menu contains the following information: Feature Description Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. -
Page 45: Safety Instructions
IMB-C46H Safety Instructions Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use. Please read these safety instructions carefully. • Please keep this User‘s Manual for later reference. - Page 46 6450 Via Del Oro, San Jose, CA 95119-1208, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-600-1189 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: 300 Fang Chun Rd., Zhangjiang Hi-Tech Park, Pudong New Area Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
