Fametech TP-7715 Series Quick Installation Manual


Specifications
Model
Platform
Intel® Celeron G3900TE
(2.3GHz, Dual Core, 2M Cache)
Intel® i3-6100TE
(2.7GHz, Dual Core, 4M Cache)
CPU
Intel® i5-6500TE
(up to 3.3GHz, Quad Core, 4M Cache)
Intel® i7-6700TE
(up to 3.4GHz, Quad Core, 8M Cache)
System Memory
Graphic
OS Support
Display
Screen Size
Resolution
Touch Screen
Tilting Angle
Storage
1st x 2.5" SATA III HDD or SSD supported in the Main Panel
HDD
RAID
Interface
4 x COM (COM1~2 DB9 with RI/+5VDC/+12VDC output by BIOS,
Serial
COM3~4 8P8C with RI/+5VDC/+12VDC output by jumper)
Parallel
4 x 1*4pin USB2.0 box headers, 2.00pitch (2 ports via GL852G)
USB
1 x 1*4pin USB2.0 90 degree box header, 2.00pitch (near COM6; via GL852G) (for TP)
LAN
VGA 1 x reserved (Max Resolution: 1920 x 1080) for 2nd Display
HDMI
Cash Drawer
Audio
DC Out
DC In
Others
Power Adapter +12V/12.5A, 150W External Power Adapter (option for Power USB)
Color
EMI & Safety
Compliance
ROHS
Intel AMT Support
Weight
Dimension (mm)
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
TP-7715 Series
TP-7715 TP-7715 Plus
H110 Chipset Q170 Chipset
Intel® i5-6500TE
(up to 3.3GHz, Quad Core, 4M Cache)
Intel® i7-6700TE
(up to 3.4GHz, Quad Core, 8M Cache)
2 x DDR4 SO-DIMM Socket, up to 32GB
Intel® HD Graphics
POS Ready 7 (32/64 bit), Windows 7 (32/64 bit),
Windows 8.1 (64 bit), Windows 10 IOT Value (64 bit),
Windows 10 IOT High End (64 bit), Linux
15" TFT LCD LED backlight, (Ratio 4:3)
1024 x 768
True-Flat Projective Capacitive Touch (10 point)
True-Flat 5-wire Resistive Touch
15~85 degree
2nd x 2.5" SATA III HDD or SSD supported in the base,
N/A RAID 0/1
1 x DB-25 Parallel Port
2 x RJ45, Giga LAN Support (10/100/1000 Mbps),
- 1 x Intel® I219 LAN, RJ45 (Lan 1),
- 1 x Realtek RTL8111G, RJ45 (Lan 2)
1 x HDMI (horizontal type)
1 x RJ-11, +12VDC/+24VDC by jumper select
1 x Line out
1 x +12VDC
1 x +12VDC
+12V/7.5A, 90W External Power Adapter
with Cable Head Lock and Hide in Stand
with Cable Head Lock
(Power Adapter: 100VAC~240VAC, 50/60Hz)
Black / White
CE EN55032/EN55024
FCC PART 15B
LVD EN60950-1
BSMI CNS14336
Yes
N/A Yes
9 kg
355.8 (W) x 352.6 (H) x 208.3 (D) mm
0°C~40°C
20% ~ 80% RH non-condensing
-20°C~55°C
20% ~ 85% RH non-condensing

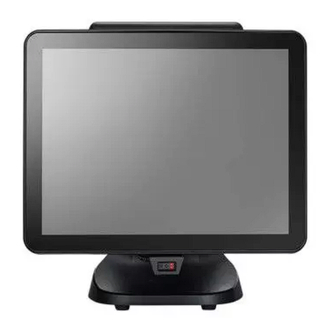

TP-7715 Series
High Performance Full-Flat POS System
Quick Installation Guide
TP-7715 / TP-7715P
IMPORTANT SAFETY INFORMATION
 Read following instructions carefully.
 Use only parts, especially power adapter, recommended by the manufacturer;
unapproved parts may be hazardous.
 Make sure that the voltage applied to the power outlet is within the specified
range (100VAC ~240VAC).
Improper power source voltage range will cause damage.
 Power off the system and remove the power adapter while cleaning the system.
 Before powering on the system, make sure all the peripherals are
firmly installed.
Ver. 1.0
