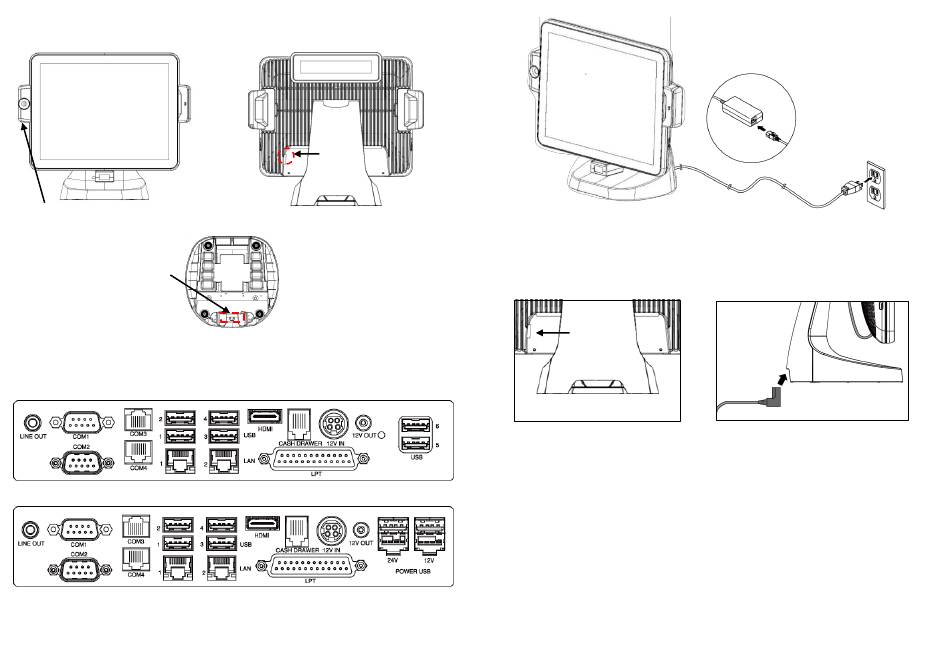

Parts Descriptions
LCD
Touch Screen
(Optional)
i-Button
(Optional)
Power
Adapter
Bottom I/O Ports
Type A (Standard USB Version)
Type B (Power USB Version)
Customer Display
(Optional)
MSR
Power
Switch
Cable Access
Opening
Base
Install Your POS System
POS Terminal
1.
Place the POS terminal on the proper location.
2.
Connect the power cord to the POS terminal.
(The Power Adapter is pre-installed on the Base).
Power
Switch
Cable Access Opening of
the Base
3.
Connect the optional peripherals to the POS
(for example: Mouse, Keyboard, and Barcode Scanner).
4.
Plug the AC power cord to the power source (electrical outlet).
5.
Make sure all of the cables are properly connected to the
POS terminal, Power Adapter, and Power Source.
6.
Turn on the switches of optional peripherals (if installed).
7.
Turn on the power switch of the POS terminal
(on the back of the POS terminal).
Extermal Power Adapter
(Type B, Power USB Version)
Power Cord
Electrical Outlet
Cable Access
Opening
