AP-7715 Series

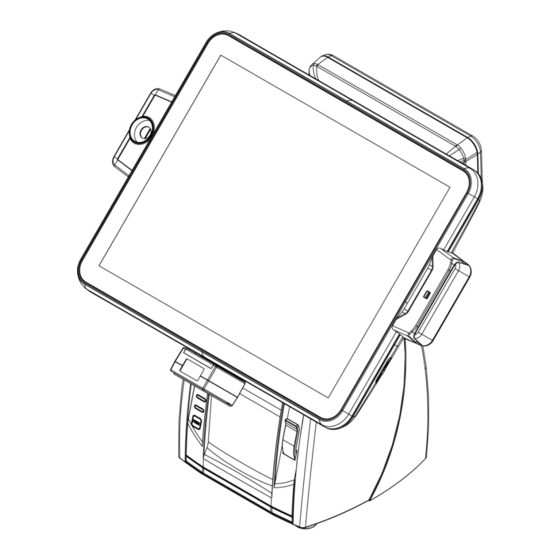

Fanless Full-Flat POS Terminal
User Manual
Installation Guide
Ver. 1.0
© Copyright Fametech Inc. (TYSSO), 2020
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TYSSO AP-7715 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fametech TYSSO AP-7715 Series

Summary of Contents for Fametech TYSSO AP-7715 Series

  • Page 1 AP-7715 Series Fanless Full-Flat POS Terminal User Manual Installation Guide Ver. 1.0 © Copyright Fametech Inc. (TYSSO), 2020...

  • Page 2: General Information

    The information in this manual is subject to change without notice due to rapid improvement on IT technology. Users can get the most up to date information from our web sites: http://www.fametech.com.tw DISCLAIMER This manual has been examined for accuracy. While precaution has been taken in the preparation of this manual, neither the manufacturer takes no liability for errors or omissions nor assume any responsibility for damage(s) incurred directly or indirectly from errors, omissions, or discrepancies of this manual.

  • Page 3: Caution

    The users should consult his/her dealer for any technical problems. Warranty does not cover any damage caused by improper use. TRADE MARKS AND SERVICE MARKS TYSSO is a registered trademark of FAMETECH INC. Other brand and product names are trademarks and registered trademarks and service marks of their respective owners.

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Read the following instructions carefully.  Use only parts, especially the power adapter, recommended by the manufacturer; unapproved parts  may be hazardous.  Before plugging the power cord into the AC inlet of the power supply unit, make sure that the voltage applied to the power outlet is within the specified range (100V~240V).

  • Page 5: Table Of Contents

    Contents General Information........................i ABOUT THIS MANUAL ....................... i DISCLAIMER ..........................i WARNING ............................i CAUTION ............................ii WARRANTY LIMITS ........................ii TRADE MARKS AND SERVICE MARKS ................. ii IMPORTANT SAFETY INFORMATION ..................iii Contents ............................iv 1.Product Overview ........................1 1.1.Packing ............................

  • Page 6: Contents

    1. Product Overview 1.1. Packing POS Terminal Power Adapter* AC Power Cord Quick Installation Guide (installed on the Base) Contents  POS Terminal  Power Adapter*  AC Power Cord  RJ-45 to RS-232-DB9 Male Cable  Quick Installation Guide Optional Accessories ** ...

  • Page 7: Specifications

    1.2. Specifications Model AP-7715 Series AP-7715 AP-7715P Platform H110 Chipset Q170 Chipset Intel® Celeron G3900TE (2.3GHz, Dual Core, 2M Cache) Intel® i3-6100TE (2.7GHz, Dual Core, 4M Cache) Intel® i5-6500TE Intel® i5-6500TE (up to 3.3GHz, Quad Core, 4M Cache) (up to 3.3GHz, Quad Core, 4M Intel®...
  • Page 8 Interface 4 x COM (COM1~2 DB9 with RI/+5VDC/+12VDC output by BIOS, Serial COM3~4 8P8C with RI/+5VDC/+12VDC output by jumper) Parallel 1 x DB-25 Parallel Port 4 x USB (Bottom 4 x USB 3.0), Extra I/O choose rather 2 x USB Type A (2 x USB 2.0) 2 x RJ45, Giga LAN Support (10/100/1000 Mbps), - 1 x Intel®...
  • Page 9 Peripherals Optional Peripheral 9.7", 350nits and resolution up to 1024 x 768 2nd Display 15", 300nits and resolution up to 1024 x 768 Optional PCAP Touch supported Customer Display VFD, 20 Columns x 2 Lines Bi-directional, comply with ISO 7811 and Track 1/2/3 (HID USB) Bi-directional, comply with ISO 7811 and Track 1/2/3 (HID USB) Read/write follow ISO7816 /EMV specification and Chip Card Reader...
  • Page 10 Dimensions  Note: The Magnetic Stripe Card Reader (MSR) and i-Button module are optional parts and may not be included in the package. Please purchase the optional parts separately. - 5 -...

  • Page 11: Parts Descriptions

    1.3. Parts Descriptions  Front View Touch Screen i-Button (Optional) (Optional) Power Indicator 2D Barcode Scanner Base  Rear View Customer Display (Optional) i-Button (Optional) (Optional) Power Switch Back Cover Cable Access Opening - 6 -...
  • Page 12 Bottom I/O Ports  - 7 -...

  • Page 13: I/O Ports Descriptions

    1.4. I/O Ports Descriptions Main Power Input Cash 12V DC LINEOUT COM 1 COM 3 USB Ports Drawer USB Ports HDMI COM 4 LAN Ports COM 2 I/O Ports Descriptions: I/O Port Description LINE OUT 1 x audio connector for connecting an external audio device The DB9 female type serial ports with power output COM 1 / COM 2 selectable by BIOS: RI/+5VDC/+12VDC...

  • Page 14: Pos Installation

    2. POS Installation 2.1. Unpack Your POS The contents may vary with different options. If there’s any physical damage or missing parts, please contact your supplier immediately. Please keep all packing materials in case you need to ship back the device for service.

  • Page 15: Install Your Pos

    2.2. Install Your POS Power Adapter Electrical Outlet Power Cord POS Terminal Connect the Power Cord to the POS Terminal and Printer - 10 -...

  • Page 16: Appendix

    Appendix A. Install LM-2010-X Secondary (2 ) LCD Display (Optional) a. Remove the protective cover of the POS terminal. Top Cover Protective Cover Remove the Top Cover of the 2 LCD display. LCD Display c. Adjust the angle of the 2 LCD display horizontally.

  • Page 17: Osd Control Button Of The Secondary (2Nd) Lcd Display

     OSD Control Button of the Secondary (2 ) LCD Display The control buttons are located in the rear of the secondary LCD display. Press and pull downward to remove the back cover. Control Buttons Back Cover MENU LEFT / RIGHT ENTER LED Indicator POWER...

  • Page 18: B.install The Modular Customer Display (Optional)

    B. Install the Modular Customer Display (Optional) Remove the top cover of the customer display. Remove the protective cover of the Top Cover POS terminal. Protective Cover Modular Customer Display There is a connector for the modular customer display. Connector Modular Top Cover Customer...

  • Page 19: C.install The Msr & I-Button Module (Optional)

    C. Install the MSR & i-Button Module (Optional) To install the i-Button module: a. Turn off the POS terminal. Remove the protective covers on the two sides of the POS terminal. Protective Protective Cover Cover Install the i-Button module to the POS terminal.
  • Page 20 To Install the MSR module: e. Install the MSR module to the POS terminal. Note: Connect the connector of MSR to the connector of MSR Module (Back Cover Removed) POS terminal. Connect the connector of MSR to the POS terminal f.

  • Page 21: D.replace The Hard Disk Drive Of Your Pos Terminal

    D. Replace the Hard Disk Drive of Your POS Terminal  Replace the Hard Disk Drive on the Back of POS Terminal There is a HDD drive slot on the side of the POS terminal (Main Hard Disk). a. Remove the back cover of MSR (if installed). Remove the securing screws and disconnect the MSR from the POS terminal.
  • Page 22 1. Loosen the securing screws to remove the hard Bracket disk from the bracket. Then replace a new hard disk. Hard Disk 2. Secure the new HDD to the bracket. 3. Re-install the HDD module (with new HDD) back to the POS terminal. Securing Screws Note: ...
