Fametech TP-9616 Quick Installation Manual



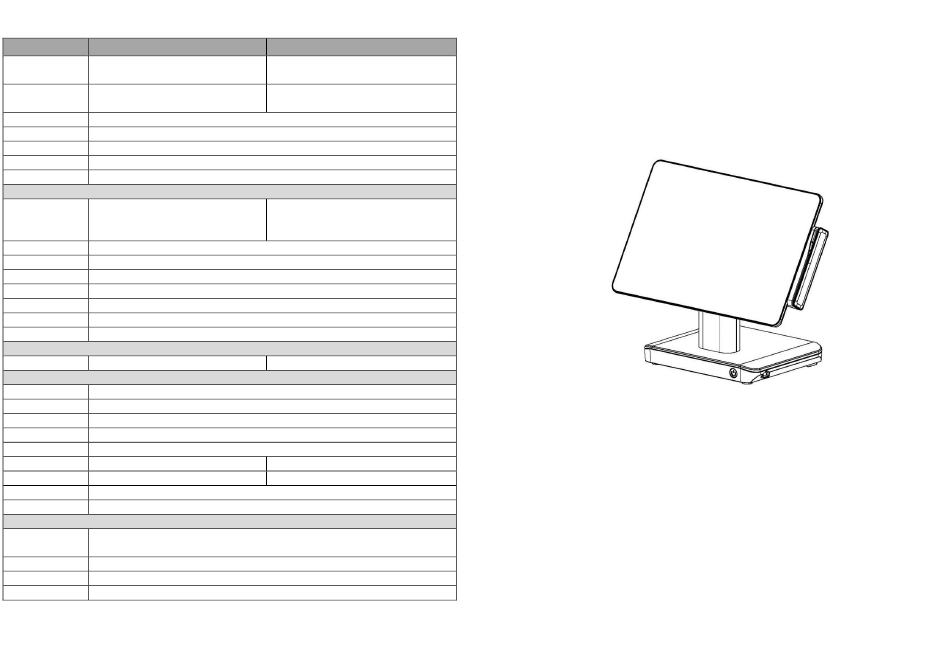

Specifications
TP-9616
Model Name
Intel® Celeron® J6412 (Elkhart Lake)
Processor
1.5M Cache, Max. 2.6 GHz
2 x 260 pin DDR4 SO-DIMM
System Memory
(3200MTs, up to 32GB)
Storage 1 x M.2 SSD (PCIe 3.0 x 4 NVMe / SATA)
LCD Panel - I 15.6-inch TFT LCD, 1920 (W) RGB x 1080 (H)
LCD Panel - II 15.6-inch TFT LCD, 1366 (W) RGB x 768 (H)
Touch Panel True-Flat Projected Capacitive Multi Touch
Speaker
I/O Interface
1 x USB 3.0 Type A
USB 1 x USB 3.0 Type C (w/ QC)
3 x USB 2.0 Type A
LAN 1 x RJ45 10/100/1000Mbps Giga Ethernet
COM 3 x COM (RJ45), w/ RI/5V/12V by BIOS
HDMI
Audio
Cash Drawer 1 x RJ11 port supports 2 cash drawer, w/ 12V/24V by jumper
DC Power Out
DC Power In
Power Management
Power Adapter 12V@5A, 60W Adapter
Mechanical & Environmental
Dust and Water
Tilt Adjustment
Dimension
Weight
Certification
Windows 10/11 and Linux
Operation System
TPM TPM2.0
0°C to +40°C / 20 to 80% without condensation
Operation Condition
-20°C to +55°C / 20 to 85% without condensation
Storage Condition
Optional Accessories
2nd Display
Customer Display
Bi-directional, Comply with ISO 7811 and Three Track support
MSR
Wi-Fi
TP-9716U
Intel® Core™ i5-7267U (Kaby Lake) 4M
Cache, Max. 3.5 GHz
2 x 260 pin DDR4 SO-DIMM
(2133MTs, up to 32GB)
1 x 2W High Quality Speaker
4 x USB 3.0 Type A
1 x USB 2.0 Type A
1 x HDMI Port
1 x Line-out and 1 x MIC-in
1 x DC 12V Power Out (DC 2.1mm)
1 x Standard DIN 4pin type
12V@7.5A, 90W Adapter
IP65 on Front Bezel
0° ~ 90°
389 (W) x 352 (H) x 210 (D)mm
4.3 kg
CE/FCC/LVD
Windows 10 and Linux
Option
10.1" (1280 x 800) LCD Display
Optional PCAP Touchscreen
VFD and LCD Customer Display
Wi-Fi IEEE 802.11 a/b/g/n/ac
TP-9616 / 9716U
15.6-inch Touch Screen POS Terminal
Quick Installation Guide
IMPORTANT SAFETY INFORMATION
 Read following instructions carefully.
 Use only parts, especially power adapter, recommended by the manufacturer;
unapproved parts may be hazardous.
 Make sure that the voltage applied to the power outlet is within the specified
range (100VAC ~240VAC).
Improper power source voltage range will cause damage.
 Power off the system and remove the power adapter while cleaning the system.
 Before powering on the system, make sure all the peripherals are firmly installed.
