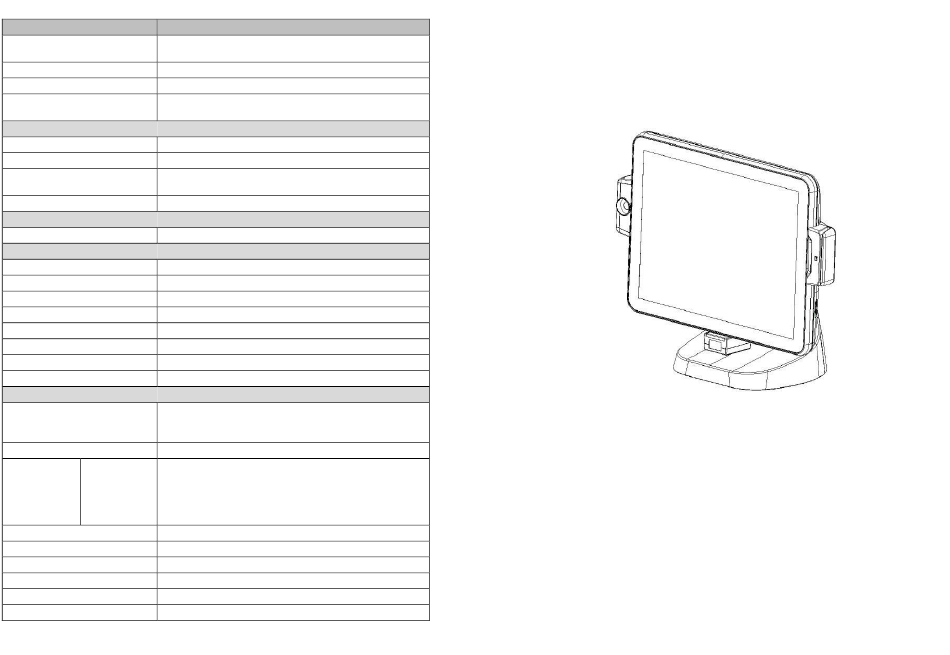

Fametech TP-2515 Quick Installation Manual


Specifications
Model
Intel® Bay Trail-D Celeron® J1900 Quad Core
CPU
System Memory
Graphic
OS Support
Display
Screen Size
Resolution
True-Flat Projective Capacitive Touch (10 point)
Touch Screen
Tilting Angle
Storage
HDD
Interface
Serial 4x COM (DB9 with RI/+5VDC/+12VDC output by BIOS)
Parallel
USB 4 x USB type A (3 x USB 2.0 and 1 x USB 3.0)
LAN 1 x RJ-45, Giga LAN Support (10/100/1000 Mbps)
VGA 1 x DB-15, Female (Max Resolution: 1920 x 1080)
Cash Drawer
DC Out
DC In
Others
Power Adapter
Color
Compliance EMI & Safety
Weight
Dimension (mm)
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
TP-2515
(2M Cache, up to 2.42 GHz)
1 x DDR3L SO-DIMM Socket, up to 8GB
Intel® HD Graphics
POS Ready 7, Windows 7, Windows 8.1,
Windows 10 IOT Entry, Linux
15" TFT LCD LED Backlight, (Ratio 4:3)
1024 x 768
True-Flat 5-wire Resistive Touch
15~85 degree
1 x 2.5" SATA II Bay HDD or SSD or m-SATA
1 x DB25 Parallel Port (optional)
1 x RJ-11, +12VDC/+24VDC by jumper select
1 x +12VDC
1 x +12VDC
+12V/5A, 60W External Power Adapter
with Cable Head Lock, hide in stand
(Power Adapter: 100VAC~240VAC, 50/60Hz)
Black / White
CE EN55032/EN55024
FCC PART 15B
LVD EN60950-1
BSMI CNS14336
CB IEC60950-1
7.1 kg
355.8 (W) x 349.7 (H) x 227.1 (D) mm
0°C~40°C
20% ~ 80% RH non-condensing
-20°C~55°C
20% ~ 85% RH non-condensing
Fanless Full-Flat POS Terminal
Quick Installation Guide
IMPORTANT SAFETY INFORMATION
 Read following instructions carefully.

Use only parts, especially power adapter, recommended by the manufacturer;
unapproved parts may be hazardous.
 Make sure that the voltage applied to the power outlet is within the specified
range (100VAC ~240VAC).
Improper power source voltage range will cause damage.
 Power off the system and remove the power adapter while cleaning the system.
 Before powering on the system, make sure all the peripherals are
firmly installed.
TP-2515
Ver. 1.0
