Creating a Physical Dante Network

A physical network is required to share Dante audio channels among Dante-enabled devices like the AXI 22 AT D Plus. Other devices
capable of sending and receiving audio over a Dante network must be on the same physical network in order to communicate via Dante (see
figure 5 for an example of a physical Dante Network).
Room A
Extron
SF 26CT LP
Ceiling Speakers
Extron
INPUT
1
AXI 22 AT D Plus
INPUT
2
Dante Audio Interface
- Decorator-Style Wallplate
Ethernet
Room B
Extron
SF 26CT
Speakers
INPUT INPUT
1 1
INPUT INPUT
2 2
Extron
AXI 22 AT D Plus
Dante Audio Interface
- Decorator-Style Wallplate

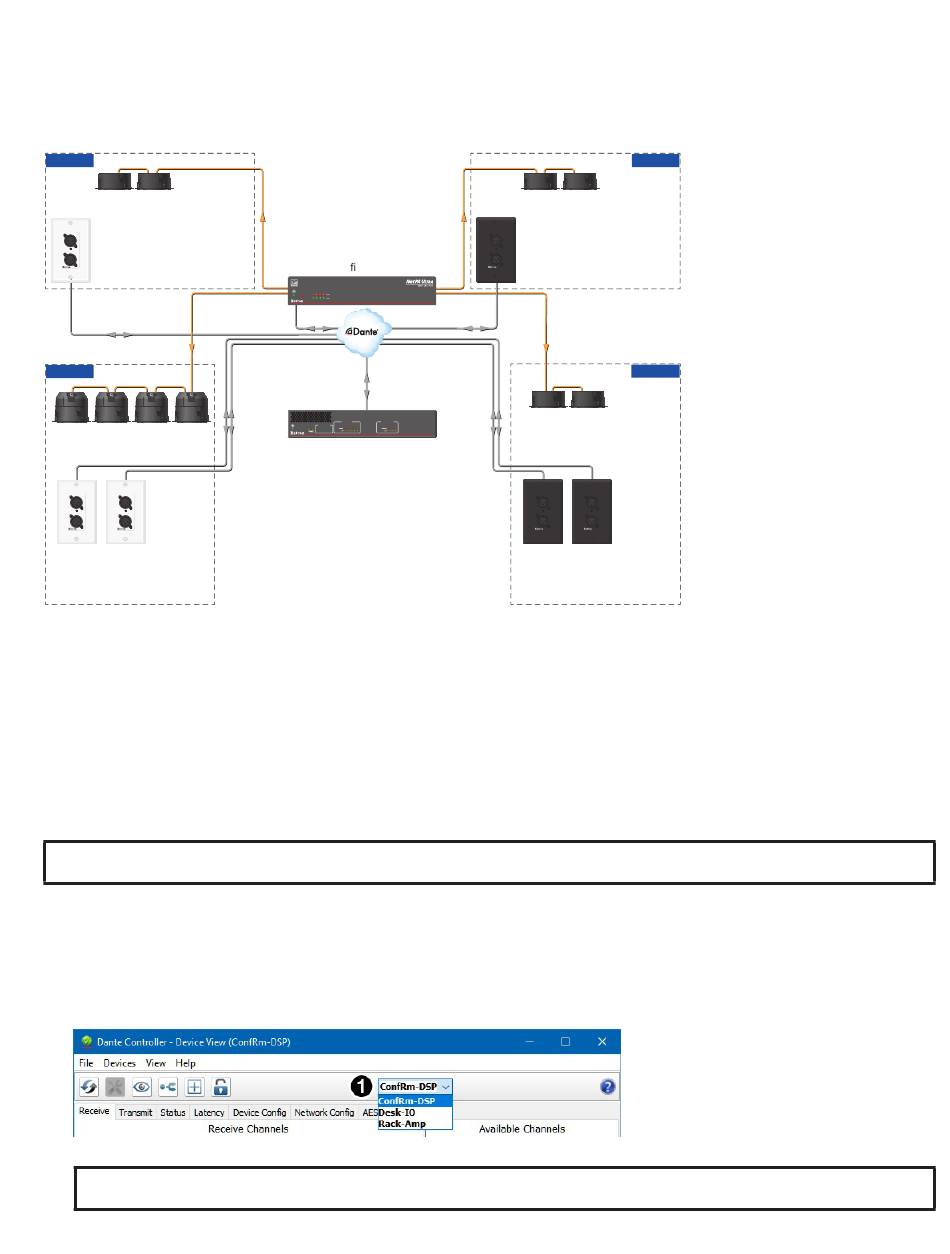

Figure 5. Dante Network Example

Dante Network Setup

Use a standard Ethernet cable to connect the AXI 22 AT D Plus to a network via the AT (PoE) port (see
the device. Launch the Dante Controller program.
Dante Controller auto-discovers all Dante devices on the network and advertises itself to allow other Dante-enabled devices to communicate
with it. The default name consists of the product name followed by a hyphen (
AXI22DP-0744b2
example,
avoid confusion, rename each device with a unique and meaningful identifier.
Renaming a Dante Device
NOTE: It is essential that Dante devices are named immediately after they are connected to the Dante network and before audio
subscriptions with other devices are established. Existing subscriptions (audio connections) are removed when a device is renamed.
1.
Ensure that the host PC and a single AXI 22 AT D Plus are connected to the same network.
2.
Open Dante Controller. The
listed.
3. Device
From the list, select
4.
Dante Controller - Device View
The
figure 6, ).
1
Figure 6. Dante Controller - Device View dialog
NOTE:
If the AXI 22 AT D Plus has not been renamed, the default name consists of the product name followed by a hyphen
( AXI22DP- ) plus the last 6-digits of the unit MAC address (for example,
4
