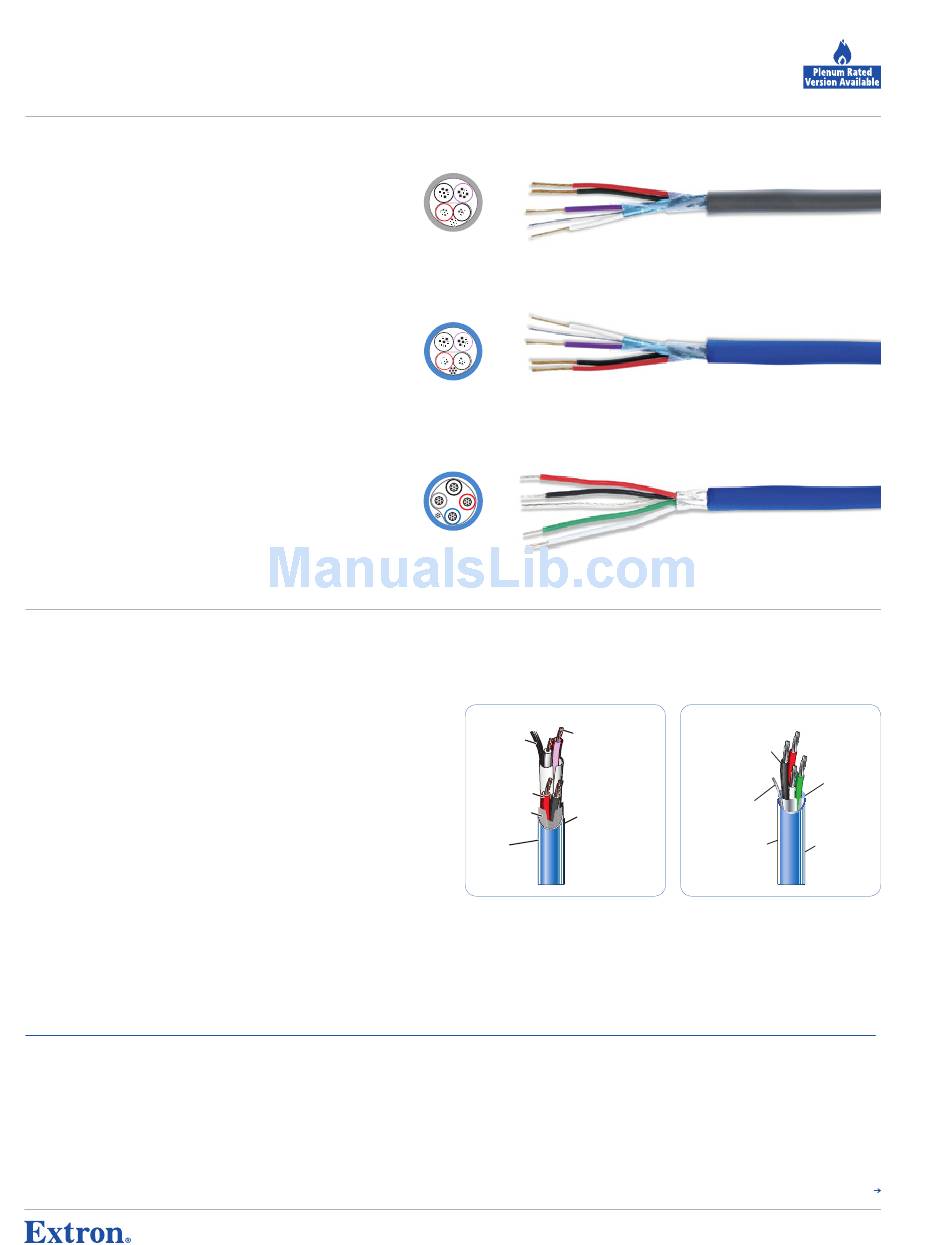

Extron electronics CTL Specifications

CTL Series
Comm-Link Control System Cable

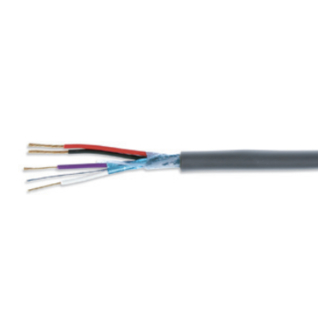

CTL
Comm-Link Control System Cable
unique FeatuRes
Two 18 AWG conductors and a low capacitance shielded twisted pair
•
with drain wire in a single jacket
NEC CM rated, non-plenum cable
•
CTLP
Comm-Link Control System Cable
unique FeatuRes
Two 18 AWG conductors and a low capacitance shielded twisted pair
•
with drain wire in a single jacket
NEC CMP rated, plenum cable
•
CTL24LC-2P
Low Capacitance Serial Control Dual Cable
unique FeatuRes
High performance cable for distribution of serial control
•
Two twisted pair 24 AWG tinned copper insulated conductors within
•
an overall outer aluminum polyester foil shield and a tinned copper
drain wire wrapped in a single jacket
NEC CMP rated, plenum cable
•
CoMMon FeatuRes
Plenum and Non-Plenum rated versions available — Depending on the model,
•
Extron Comm-Link cable is available with a plenum or non plenum-rated SuperFlex
jacket. Plenum-rated cable is for use in open air spaces without conduit, thereby reducing
installation cost, where National Electric Code CM or CMP cable must be installed.
SuperFlex jacket with sequential numbering — Comm-Link cable features the
•
smooth SuperFlex jacket with sequential numbering that enables quick calculation of
the cable used and remaining on the spool.
Spools of 500 feet (150 m) & 1,000 feet (300 m)
•
DesCRiPtion
The Extron CTL Series Comm-Link Control Systems Cable is ideal for connecting control
system components. The CTL and CTLP models are perfectly suited for carrying control
communications due to the low capacitance rating on the data pair wires, while the additional
conductors transmit power and communications. The CTL24LC-2P cable is ideal for RS-232,
MoDel
Comm-Link Non-Plenum
CTL/500
CTL/1000
Comm-Link Plenum
CTLP/500
CTLP/1000
Low Capacitance Dual Plenum
CTL24LC-2P/1000
728
VeRsion DesCRiPtion
Non-Plenum 500' (150 m) spool
Non-Plenum 1000' (300 m) spool
Plenum 500' (150 m) spool
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Plenum 1000' (300 m) spool
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Plenum 1000' (300 m) spool
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USA West USA West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX
RS-422 or RS-485 serial control applications. This twisted pair cable provides the fast signal
rise times required by today's control systems, resulting in reliable communications and
executed commands, with the overall shield isolating interference and emission.
STP with Drain
Drain Wire
Two 22 AWG conductor
(White & Violet) with One
24 AWG tinned copper
drain wire
Two 18 AWG
(Red & Black)
Fiber Wrap
SuperFlex Jacket
Allows for easy
installation
CTLP
Plenum Rated
Comm-Link
Eliminates conduit
Control System
costs and allows for
Cable
easy installation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USA East USA East
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
u t p & C o M M u n I C a t I o n C a B l e s
Two Color-Coded
24 AWG
Stranded Pairs
100% Foil
Shield
Drain Wire
CTL24LC-2P Plenum
SuperFlex
Low Capacitance
Jacket
Serial Control
Dual Cable
PaRt #
22-148-02
22-148-03
22-119-02
22-119-03
22-195-03
www.extron.com www.extron.com
© 2008 Extron Electronics. All rights reserved. © 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice. Pricing and specifications may change without notice.
Continued
