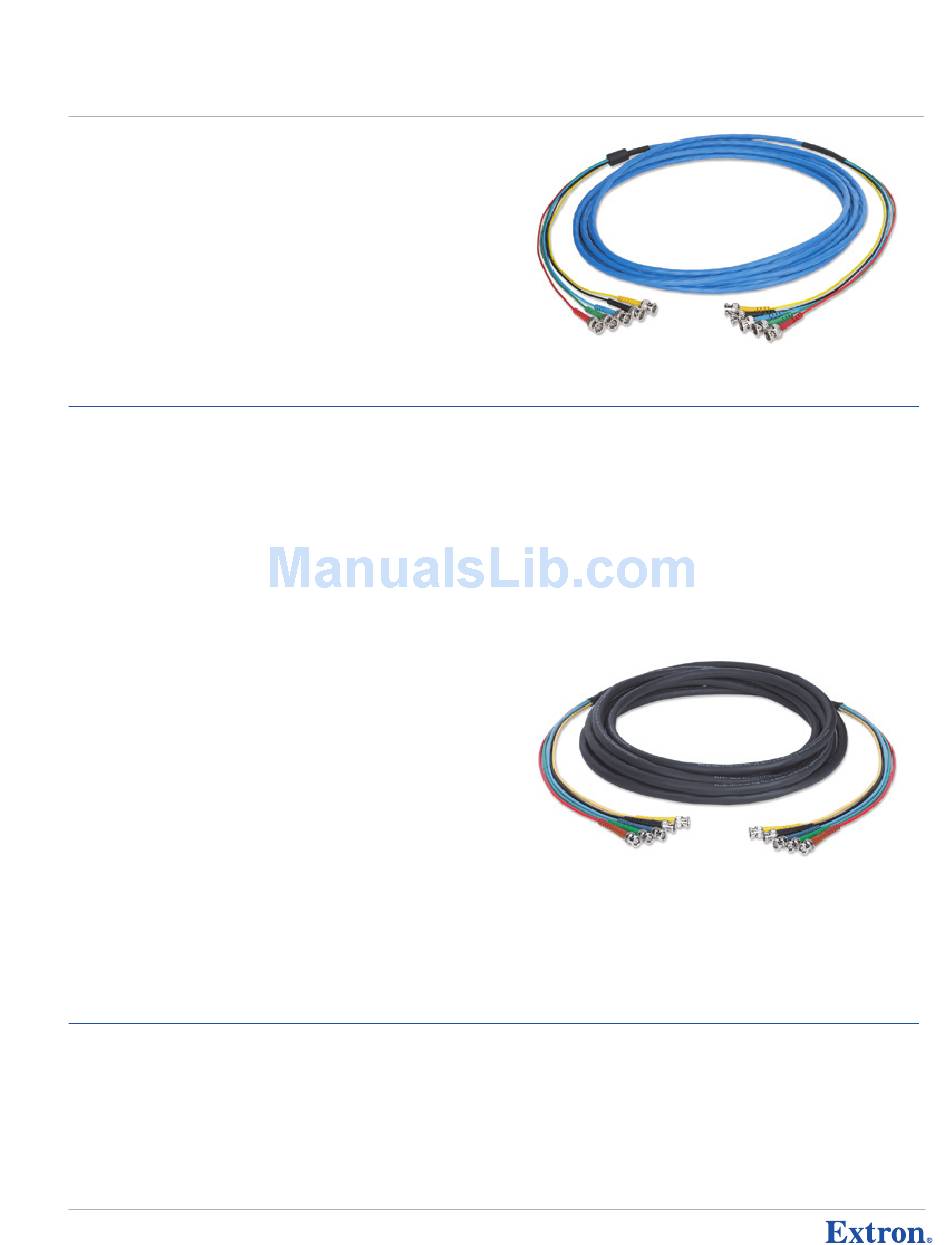

Extron electronics M59-5 BNC/100 Specification Sheet

BNC to BNC Cables

MHR-5P BNC Series

BNC Male to Male Five Conductor MHR - Mini High Resolution
Cables - Plenum

DesCrIPtIoN

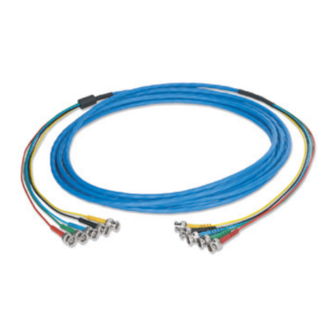

The Extron MHR-5P BNC Series cable includes five mini high resolution, CL2P plenum-rated,
75 ohm, color-coded coaxial cables terminated with 75 ohm BNC connectors and wrapped
in a single jacket. The MHR-5P BNC cable is ideal for applications using red, green, blue,
and separate horizontal and vertical sync outputs for connection to an Extron computer-video
interface, switcher, distribution amplifier, or display device. The Extron MHR-5P BNC cable is
NEC CL2P plenum-rated.
For cable specifications, see page 705.

MoDel

MHR-5P BNC/3
MHR-5P BNC/6
MHR-5P BNC/12
MHR-5P BNC/25
MHR-5P BNC/35
MHR-5P BNC/50
MHR-5P BNC/75
MHR-5P BNC/100

M59-5 BNC Series

BNC Male to Male Five Conductor M59 - Mini 59 Flex Cables

DesCrIPtIoN

Combining higher performance than Mini HR cable and more flexibility than RG59 cable, Extron
M59-5 BNC Series cables offer unique characteristics ideally suited for composite, S-video,
component, HDTV, RGsB, RGSB, and RGBHV applications. These durable and ultra flexible cables
provide uncompromising high resolution signal distribution and multipurpose interconnectivity
solutions for a wide range of professional, commercial, residential, themed entertainment,
and live event A/V environments. Constructed of five 24 AWG, 75 ohm, coaxial conductors,
the extraordinarily smooth M59-5 BNC cables are double shielded with aluminum foil and
tinned copper for reduced interference, superior signal distribution performance, flexibility, and
durability. M59-5 BNC cables are especially useful for wiring equipment within racks.
The M59-5 BNC cable is superb whenever the application demands reliable distribution of
RGBHV computer-video signals to signal processors, system switchers, distribution amplifiers,
and display devices.
For cable specifications, see page 714.

MoDel

M59-5 BNC/3
M59-5 BNC/6
M59-5 BNC/12
M59-5 BNC/25
M59-5 BNC/35
M59-5 BNC/50
M59-5 BNC/75
M59-5 BNC/100
Europe Europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
(continued)
VersIoN DesCrIPtIoN
3'
(90 cm)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6'
(1.8 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12'
(3.6 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25'
(7.6 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35'
(10.6 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
50'
(15.2 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
75'
(22.8 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
100'
(30.4 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VersIoN DesCrIPtIoN
3'
(90 cm)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6'
(1.8 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12'
(3.6 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25'
(7.6 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35'
(10.6 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
50'
(15.2 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
75'
(22.8 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
100'
(30.4 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
b n C t o b n C C a b l e s
Part #
26-378-01
26-378-02
26-378-03
26-378-04
26-378-12
26-378-05
26-378-06
26-378-07
Part #
26-499-01
26-499-02
26-499-03
26-499-04
26-499-12
26-499-05
26-499-06
26-499-07
Japan Japan
+81.3.3511.7655 +81.3.3511.7655
+81.3.3511.7656 FAX +81.3.3511.7656 FAX
763
