Extron electronics A RCA/10 Specifications

Video, S-Video & Audio Cables

AV RCA

RCA Male to Male Composite Video and Stereo Audio Cables
Former Model Name: IN8906, IN8920
DesCrIPtIoN
The AV RCA Cables are deluxe interconnect cables for composite video and stereo audio. The
thicker conductor is a 75 ohm 20 AWG coax cable specially designed to carry a composite
video signal. The two thinner conductors are designed to carry stereo audio line level signals.
These cables are terminated on each end with three high quality RCA male connectors, which
are color coded yellow, red, and white.
MoDel
AV RCA/6
AV RCA/20

HDTV RCA

RCA Male to Male HDTV/Component Video Cable
Former Model Name: IN9720
DesCrIPtIoN
Component video cable, three RCA male to three RCA male.
MoDel
HDTV RCA/6

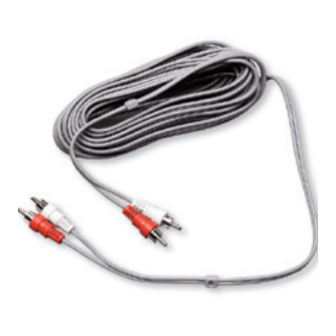

RCA Audio Cables

RCA Male to Male Stereo Audio Cables
Former Model Name: IN8706, IN8710, IN8725
DesCrIPtIoN
The RCA Audio Cables are designed to interconnect line level audio signals between A/V
equipment inputs and outputs. These cables feature separate conductors to carry the left and
right audio signals and are terminated on each end with red and white RCA male connectors.
MoDel
A RCA/6
A RCA/10
A RCA/25
Europe Europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
(continued)
VersIoN DesCrIPtIoN
6'
(1.8 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20'
(6.0 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VersIoN DesCrIPtIoN
6'
(1.8 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VersIoN DesCrIPtIoN
6'
(1.8 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10'
(3.0 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25'
(7.6 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
V I d e o , s - V I d e o & a u d I o C a b l e s
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
Part #
26-643-06
26-643-20
Part #
26-645-06
Part #
26-641-06
26-641-10
26-641-25
