AXI 22 AT D Plus and WPD 102 XLRM • Setup Guide
•

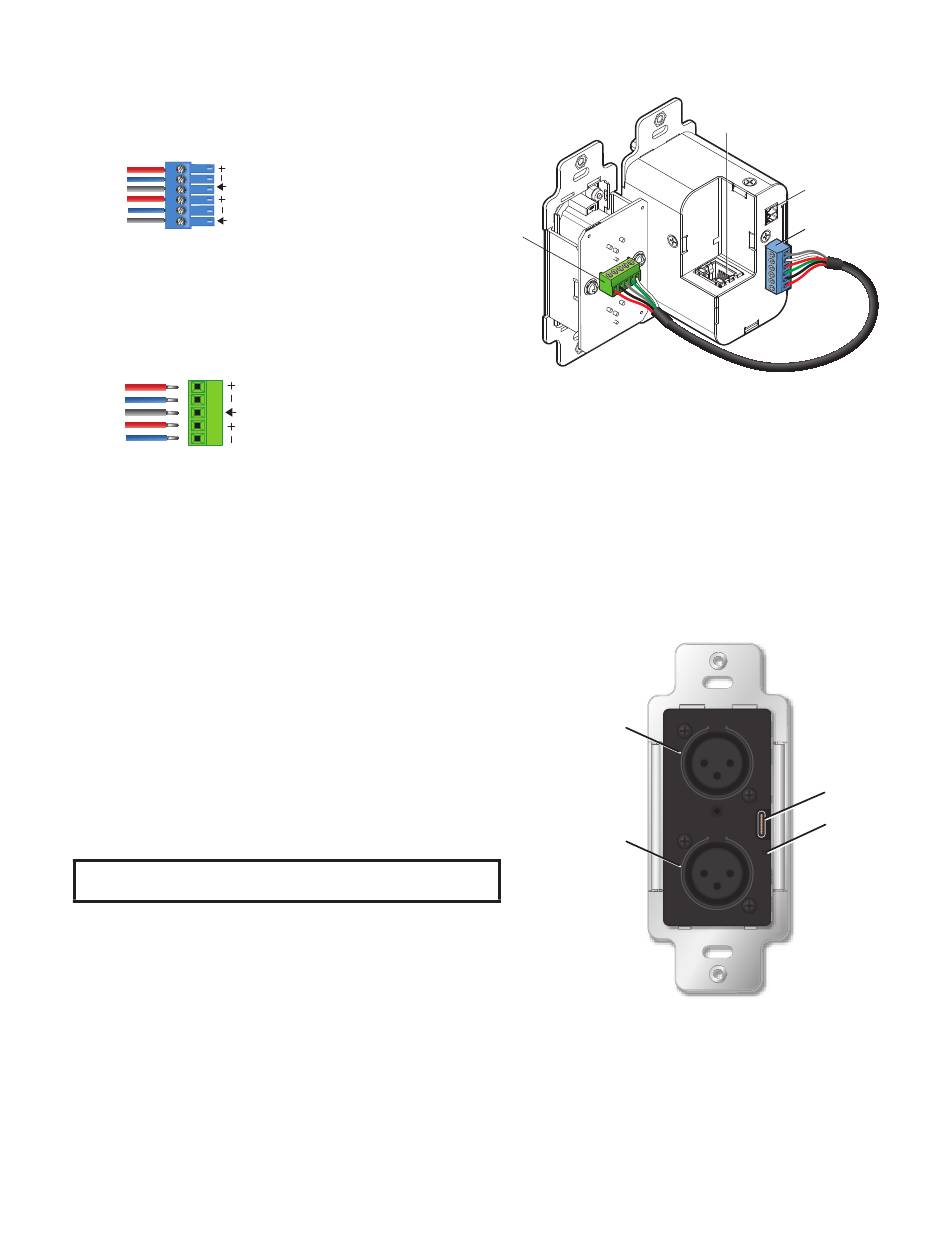

Line Outputs — Use the provided 6-pole 3.5 mm
captive screw connector to connect directly to the
AXI 22 AT D Plus panel. These outputs are listed
as receivers on the Dante network (see
Operation on page 6). Wire as shown below.
Tip
Ring
Sleeve
Tip
Ring
Sleeve
Balanced Output
6-pole Audio OUTPUT Wiring
•
Line Inputs — Use the provided 6 conductor
shielded cable to connect directly to the
WPD 102 XLRM panel. Since the WPD 102 XLRM
only has a five contact terminals, twist the two
sleeve conductors together and connect them to the
single ground contact. Wire as shown below.
Tip
Ring
Sleeve
Tip
Ring
Balanced Output
5-pole Audio INPUT Wiring
•
RJ-45 AT (PoE) port (see figure 2) — Insert an Ethernet cable into this RJ-45 port to connect the AXI 22 AT D Plus to a Dante network.
This port supports Power over Ethernet (PoE), communication with DSP Configurator for configuration, digital audio transport (AT), and
communication with the Dante/AES67 network for configuration via Dante Controller, which simultaneously transmits and receives a
maximum of two Dante audio flows. Each audio flow can contain a maximum of two Dante audio channels (2-ch in x 2-ch out) each can
be transported as either unicast or multicast data. The network speed of this port is 10/100 Mbps.
Front Panel Connections and Configuration
•
Mic/Line Input 1 and Mic/Line Input 2 — Two female XLR ports
accept balanced or unbalanced mic/line audio signals.
•
LEDs visible through the top of the XLR ports —
•
Amber LEDs light when power is provided. The LED blinks
while the AXI 22 AT D Plus is booting up and is off when
boot-up is complete. It lights steadily if there is no network
connection.
•
Green LEDs light when +48 VDC phantom power is enabled.
•
USB-C CONFIG port — Connect a PC to this port to configure the
AXI 22 AT D Plus via DSP Configurator or update via Firmware
Uploader.
NOTE:
This USB-C port is accessed by removing the
faceplate attached with the center screw.
•
Reset button — Using a stylus or small pin, press this button for
10 seconds and release to reset the unit to factory Dante defaults.
Dante settings such as device name, IP address, channel names,
and sample rates are reset to defaults. Gain values, mute status,
and phantom power settings are not affected.
2
Dante
5-pole
Captive Screw
Unbalanced Output
Line Input
Figure 2.
AXI 22 AT D Plus
WPD 102 XLRM
Line Inputs and Outputs
Mic/Line Input 1
1 1
Mic/Line Input 2
2
2
Figure 3. AXI 22 AT D Plus Front Panel
AT (PoE) Port
12 VDC Power Inlet
6-pole Captive Screw
to Line Outputs
USB-C CONFIG port
Reset button
CONFIG
CONFIG
R R
Faceplate Removed
