Extron electronics WP 120 Installation Manual

im Vertrieb von
Installation Guide
The Extron Wallplates are wall- or furniture-mountable
accessories that provide a convenient way to make pass-through
connections from audio and video source devices.
• WP 120, WP 130, WP 150, WP 170, and WP 180 fit into a
• WP 120 AUS, WP 150 AUS, and WP 170 AUS fit into a
For step-by-step installation instructions and further details, see
the Wallplates Installation Manual, which is available at
www.extron.com.
L
R
VIDEO
L R
CAUTION
These wallplates are passive devices and do not provide buffering or
other processing.
www.camboard.de
CAMBOARD Electronics
standard U.S. one-gang wall box.
standard Australian wall box.
VIDEO
WP 120 AUS
S-VIDEO
L R
WP 120 WP 130
Installation and service must be performed by authorized
personnel only. These units must be installed with accordance
with the National Electrical Code and with local electrical codes.
Use cable clamps to hold the cables in place for strain relief. Trim
back/insulate exposed cable shields with heat shrink to reduce the
chance of short circuits.
Tel. 07131 911201 ce-info@camboard.de
WP Series Wallplates • Installation
Fax 07131 911203
COMPUTER
AUDIO

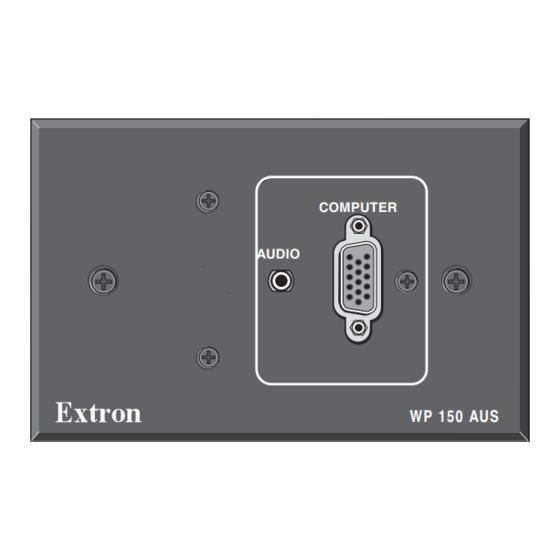

WP 150 AUS
