Extron electronics Skew-Free UTP23SF-4/100 Brochure & Specs

Skew Free A/V UTP Cables
™
UTP23SF-4 Series
Enhanced Skew-Free A/V UTP Cables
™

DesCrIPtIoN

Extron's UTP23SF-4 Series cable assemblies are designed exclusively for use with Extron
Twisted Pair transmitters, receivers, switchers, and distribution amplifiers.
The UTP23SF-4 Series* is ideal for the transmission of video, computer signals, and audio or
serial control, and incorporates a design pioneered by Extron that eliminates the skew or time
delay of signals commonly encountered when CAT 5e/6 cable is used. Common CAT 5e/6
cable can have internal twisted pairs that vary greatly in length, causing image distortion. A
difference in length in one twisted pair will produce a noticeable misalignment of the primary
colors displayed. With Extron Enhanced Skew-Free A/V UTP Cable, the length of each twisted
pair carrying RGB computer video signals is uniform so the signals arrive at the receiver
simultaneously.
Utilizing a design exclusive to Extron, Enhanced Skew-Free A/V UTP Cable increases overall
isolation performance which reduces crosstalk. This ensures minimal distortion and improved
integrity of the signal, resulting in improved picture quality.
This cable eliminates the need to use skew compensation cables or skew equalizers, saving
time and lowering installation costs. In addition, Enhanced skew-Free A/V UTP Cable is a
fraction of the size of coaxial cable and less expensive. Due to its small size and flexibility, it is

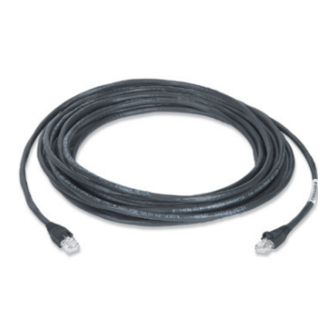

space efficient and easy to pull. Extron Enhanced Skew-Free A/V UTP Cable is comprised four,
color-coded twisted pairs of 23 AWG wires and can be terminated with RJ-45 connectors.
*Not recommended for Ethernet/LAN applications.
For cable specifications, see page 727.
Note: These cable assemblies are not recommended for use with other manufacturers' twisted
pair products.

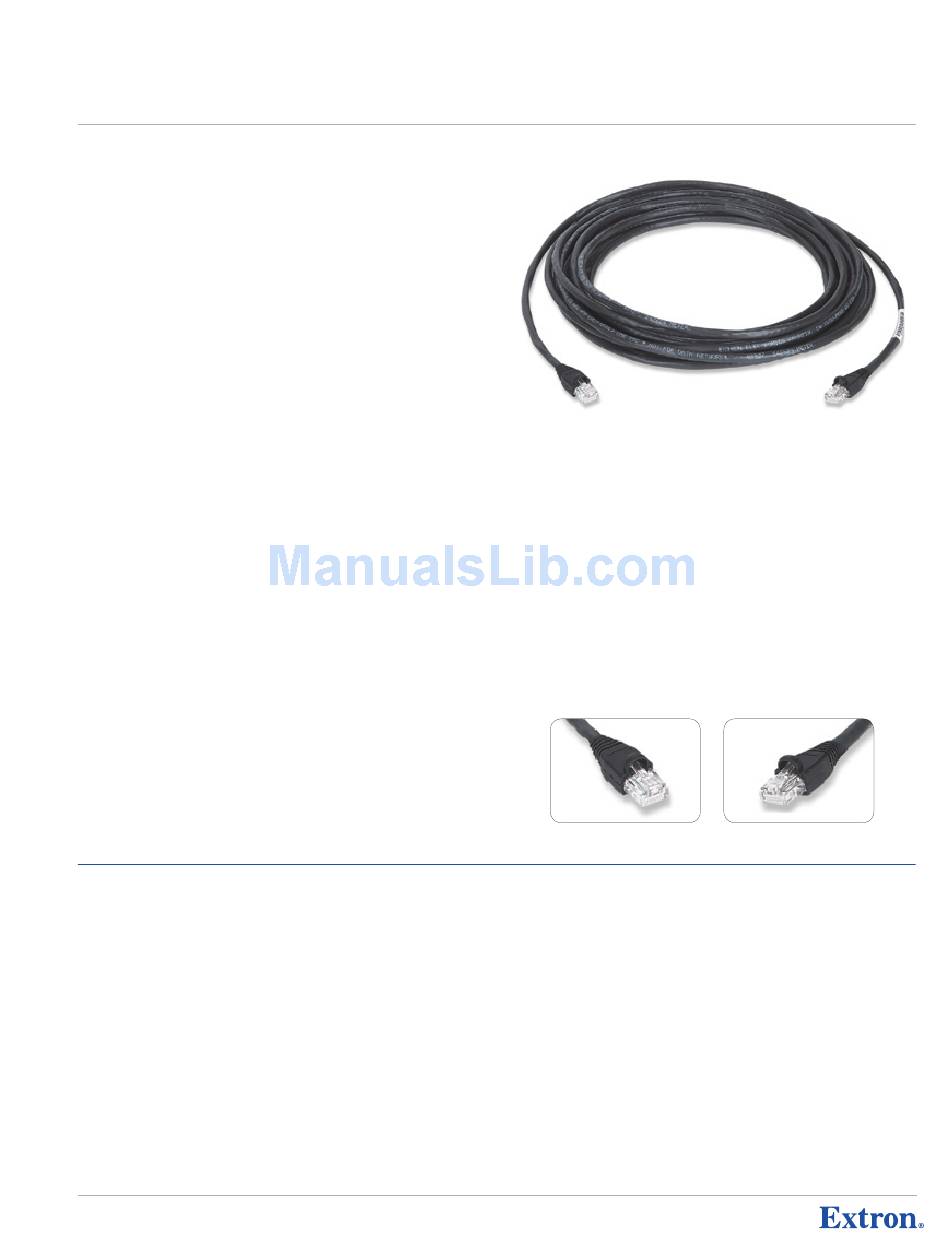

UTP23SF-4
Enhanced Skew-Free ™ A/V UTP Cables
MoDel
UTP23SF-4/3
UTP23SF-4/6
UTP23SF-4/12
UTP23SF-4/25
UTP23SF-4/35
UTP23SF-4/50
UTP23SF-4/75
UTP23SF-4/100
Europe Europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
VersIoN DesCrIPtIoN
3'
(90 cm)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6'
(1.8 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12'
(3.6 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25'
(7.6 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35'
(10.6 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
50'
(15.2 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
75'
(22.8 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
100' (30.4 m)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
s K e w f r e e
China China Japan Japan
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568 +81.3.3511.7655 +81.3.3511.7655
+86.21.3760.1566 FAX +86.21.3760.1566 FAX +81.3.3511.7656 FAX +81.3.3511.7656 FAX
a / V u t p C a b l e s
™
Part #
26-569-01
26-569-02
26-569-03
26-569-04
26-569-05
26-569-06
26-569-07
26-569-08
781
