AXI 22 AT D Plus and WPD 102 XLRM • Setup Guide
IMPORTANT NOTE:
Go to www.extron.com
product to the power source.
This guide provides basic instructions for an experienced technician to install the AXI 22 AT D Plus Wallplate Audio Expansion Interface with
Dante and the WPD 102 XLRM Audio Pass-Through Wallplate. For additional information and specifications, see the AXI 22 AT D Plus and
®
WPD 100 AV Series product pages at www.extron.com.
Disconnect Power and Mount the AXI 22 AT D and WPD 102 XLRM
Before beginning installation, disconnect power and turn off all devices to be connected to the AXI 22 AT D Plus and WPD 102 XLRM.
These devices can be installed anywhere microphones or other sources are located. Select a suitable mounting location, then choose an
appropriate mounting option (see
For information about using Dante
page 6.
Rear Panel Connections
•
12 VDC power inlet (see figure 1) — As an alternative
to Power over Ethernet (PoE), the AXI 22 AT D Plus
can be powered with an optional 12 VDC power supply.
Connect the power supply to the rear panel power inlet
with a captive screw connector and plug the power cord
into the IEC connector on the power supply (see figure 1
for wiring).
The amber power LEDs behind the front panel blink while the unit is booting. They turn off when the device is ready and connected
to a network. If a network connection is not detected, the LEDs light steady until a network connection is achieved. The rear panel AT
(PoE) port activity lights also blink when the unit is operational.
ATTENTION:
•
Always use a power supply provided by or specified by Extron. Use of an unauthorized power supply voids all regulatory
compliance certification and may cause damage to the supply and the end product.
•
Utilisez toujours une source d'alimentation fournie par Extron. L'utilisation d'une source d'alimentation non autorisée annule toute
conformité réglementaire et peut endommager la source d'alimentation ainsi que l'unité.
•
Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. The power supply is
to be located within the same vicinity as the Extron AV processing equipment in an ordinary location, Pollution Degree 2, secured
to the equipment rack within the dedicated closet, podium, or desk.
•
Sauf mention contraire, les adaptateurs AC/DC ne sont pas appropriés pour une utilisation dans les espaces d'aération ou dans
les cavités murales. La source d'alimentation doit être située à proximité de l'équipement de traitement audiovisuel dans un endroit
ordinaire, avec un degré 2 de pollution, fixé à un équipement de rack à l'intérieur d'un placard, d'une estrade, ou d'un bureau.
•
The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70, article
725 and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently fixed to building structure or
similar structure.
•
Cette installation doit toujours être en accord avec les mesures qui s'applique au National Electrical Code ANSI/NFPA 70,
article 725, et au Canadian Electrical Code, partie 1, section 16. La source d'alimentation ne devra pas être fixée de façon
permanente à une structure de bâtiment ou à une structure similaire.
for the complete user guide, installation instructions, and specifications before connecting the
Installing the AXI 22 AT D Plus and WPD 102 XLRM
Controller Software with the AXI 22 AT D Plus and WPD 102 XLRM, see
®
on page 3).
G
DC Power
DC Power Cord
Input
Captive Screw Connector

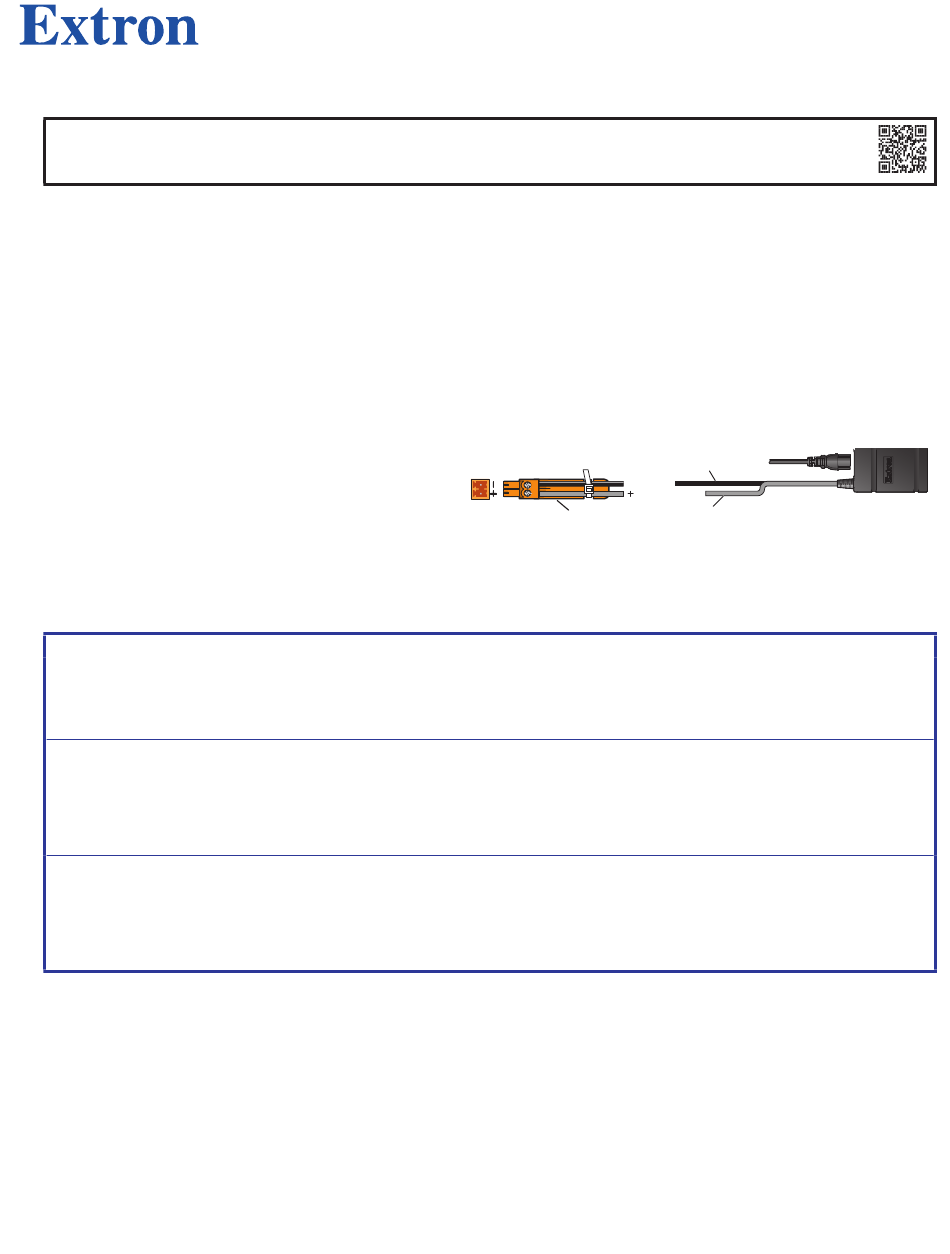

Figure 1. External Power Supply Connection
POWER
12V
0.4A MAX
DC Power
Input
DC Power Cord
Captive Screw Connector
G Ground
+12 VDC input
