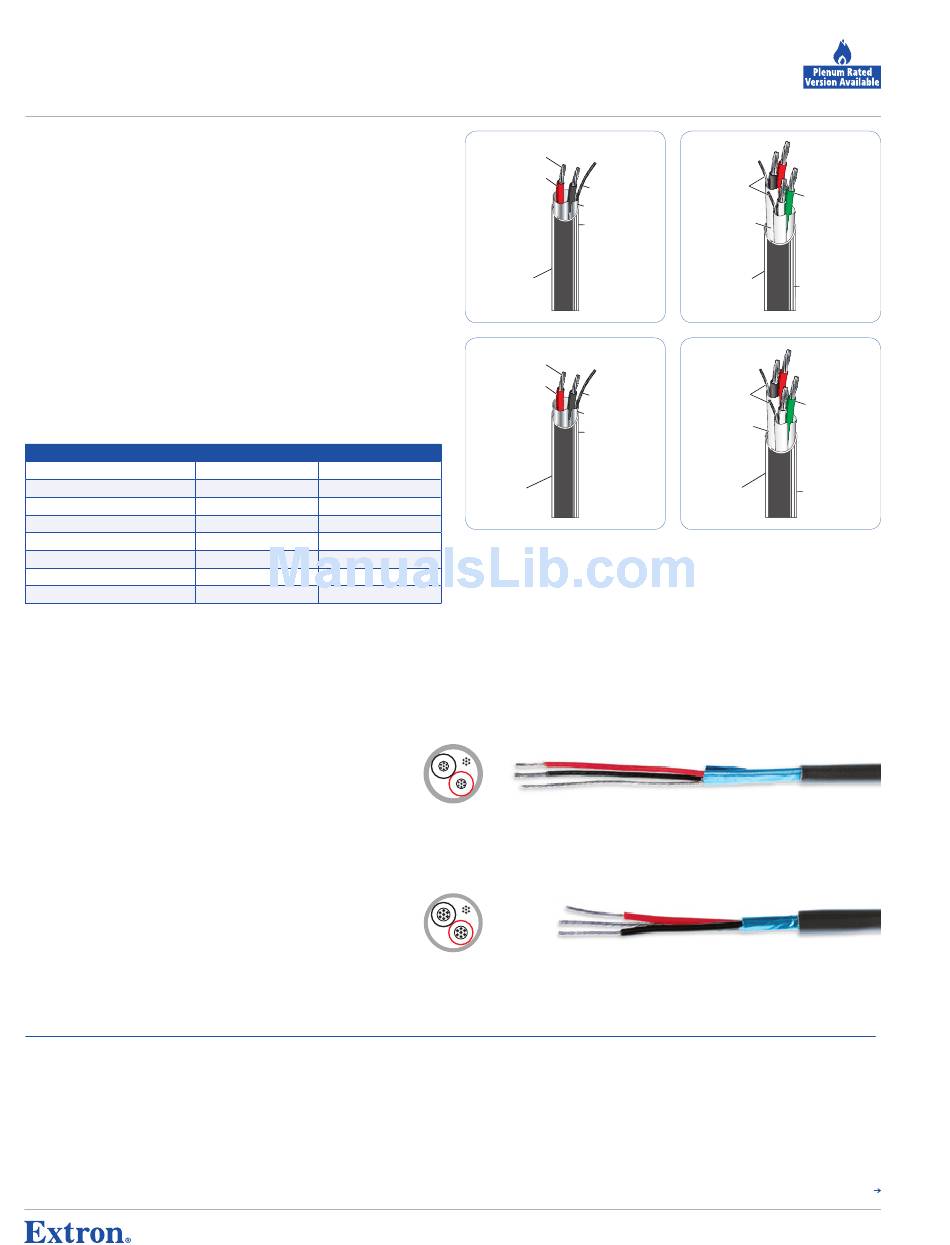

Extron electronics STP Series Specification Sheet

STP Series
Serial Control/Audio Cable
CoMMon FeatuRes
One or two 20 or 22 AWG shielded twisted pair with drain wire
•
High performance cable for serial control/audio signals
•
Plenum and Non-Plenum rated versions available
•
SuperFlex jacket with sequential numbering
•
Spool of 1,000 feet (300 m) in self-dispensing box
•
DesCRiPtion
Extron STP Series Cables are high performance solutions for the transmission and distribution
of audio and control signals in a variety of A/V applications. These cables are available in plenum
and non-plenum jackets. Each cable includes a tinned copper drain wire on the inside of the
foil shield, which is bonded to the jacket for ease of stripping - single twisted pair models only.
Plenum-rated jackets are constructed with special fire protectant agents for use in applications
where National Electric Code CMP cable must be installed. Plenum cable can be run through
plenum air spaces eliminating the need for conduit, and reducing installation costs.
Extron Model
STP22
STP20
STP22-2
STP20-2
STP22P Plenum
STP20P Plenum
STP22-2P Plenum
STP20-2P Plenum
* The cross-reference cable models are similar to the Extron Models but are not guaranteed to
be exactly identical. Belden and West Penn are divisions of Belden/CDT. Belden is a registered
trademark of Belden/CDT.

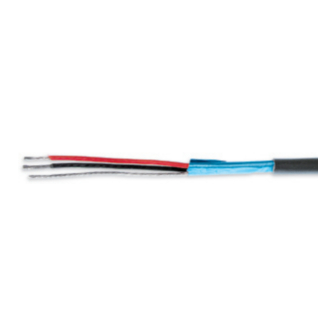

STP22
Serial Control/Audio Cable
unique FeatuRes
One twisted pair, 22 AWG, color-coded, tinned copper conductors
•
wrapped in a foil shield
NEC CM rated, non-plenum cable
•
STP20
Serial Control/Audio Cable
unique FeatuRes
One twisted pair, 20 AWG, color-coded, tinned copper conductors
•
wrapped in a foil shield
NEC CM rated, non-plenum cable
•
MoDel
STP - Single Non-Plenum
STP22/1000
STP20/1000
730
Belden * West Penn*
®
9451 (X)454
9464 N/A
8723 77510/D510
N/A N/A
82761 25291
N/A 25292
88723 N/A
N/A N/A
VeRsion DesCRiPtion
22 AWG Non-Plenum 1000' (300 m) spool
20 AWG Non-Plenum 1000' (300 m) spool
USA West USA West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX
a u d I o , C o n t r o l , & s p e a k e r C a B l e s
Two 22 AWG
(Red & Black)
Polypropylene
Drain Wire
Foil Shield
PVC Jacket
STP22
Serial Control/
Audio Cable
Two 20 AWG
(Red & Black)
Polypropylene
Drain Wire
Foil Shield
PVC Jacket
STP20
Serial Control/
Audio Cable
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USA East USA East
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
Drain Wire
2 Stranded
Twisted Pair
Sets
Foil Shields
Four 22 AWG
conductor
(Red/Black,
Green/White)
STP22-2
PVC Jacket
Serial Control/
Audio Cable
Drain Wire
2 Stranded
Twisted Pair
Sets
Foil Shields
Four 20 AWG
conductor
(Red/Black,
Green/White)
STP20-2
PVC Jacket
Serial Control/
Audio Cable
PaRt #
22-156-03
22-157-03
Continued
