Extron electronics RG6-5 Specifications

RG6-5
Five Conductor RG6 Super High Resolution Cable
FeatuRes
Five 18 AWG, 75 ohm coaxial conductors — This super high resolution cable includes
•
five, 18 AWG, 75 ohm coaxial conductors double-shielded with foil and tinned copper
serve to reduce interference.
Superior performance cable for demanding analog video and digital SDI/HDSDI
•
applications — This super high resolution cable offers the best available video
performance, and transmits the highest-resolution signals with the lowest losses
making it ideal for critical applications and longest cable runs, including high scan
rate analog, and demanding digital SDI/HD-SDI applications.
NEC CM non-plenum rating — Extron RG6-5 High Resolution cable is available with a
•
NEC CM non-plenum SuperFlex jacket.
SuperFlex jacket with sequential numbering — The RG6-5 Super High Resolution
•
cable features the smooth SuperFlex jacket with sequential numbering that enables
quick calculation of the cable used and remaining on the spool.
Spool of 500 feet (150 m)
•
DesCRiPtion
The Extron RG6-5 Five Conductor RG6 Super High Resolution Cable offers the best available
video performance. RG6 Series cables are able to handle the highest-resolution signals with the
lowest losses and are ideal for the most critical applications and longest cable runs, including
high scan rate analog and demanding digital SDI/HD-SDI applications. Signal loss, seen as an
image's loss of brightness and sharpness or data errors in digital systems, can be experienced
when cable runs travel over long distances. Signals that run at higher frequencies are especially
vulnerable to signal loss over long distance cable runs. The RG6-5 Cable is perfect for lengthy
cable runs because it carries ultra high resolution workstation graphics as well as low resolution
video with minimal signal loss ensuring the best transmission of video signals.
RG6-5 Cable is available in a non-plenum version with five conductors for signal distribution
of composite video up to RGBHV. Each conductor is an 18 AWG, 75 ohm, color-coded
coaxial conductor.
Extron Model
RG6-5
* The cross-reference cable models are similar to the Extron Models but are not guaranteed to
be exactly identical. Belden and West Penn are divisions of Belden/CDT. Belden is a registered
trademark of Belden/CDT.
MoDel
RG6-5/500
Europe Europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
Belden * West Penn*
®
7712A WP6355
VeRsion DesCRiPtion
500' (150 m) spool
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX

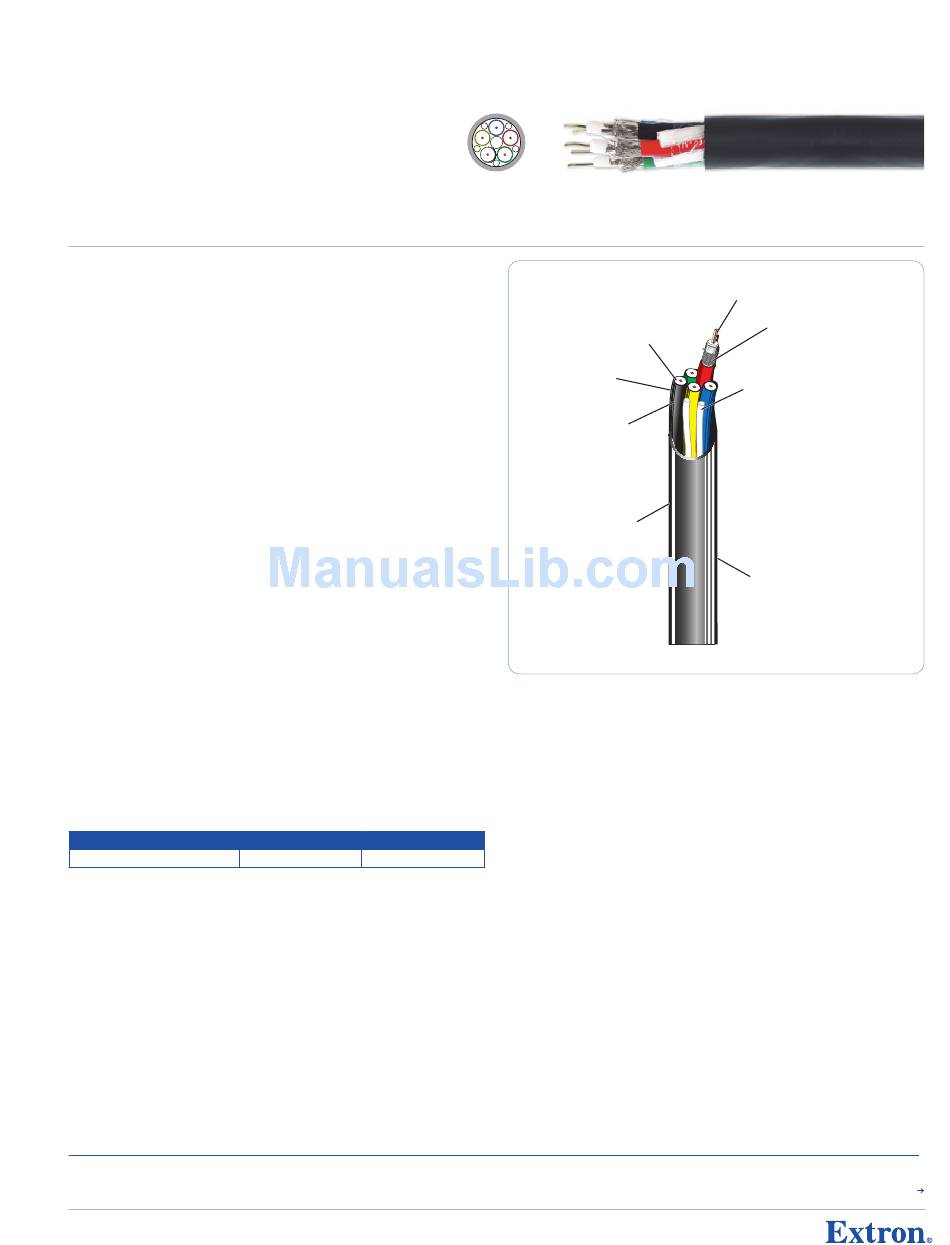

r g 6 s u p e r H I g H r e s o l u t I o n C a B l e s
18 AWG Solid Copper Coax
Polyethylene Foam
Five Super High Resolution
Coax Conductors
Sheath
Jacket
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
Double-Shielded Foil &
Copper Braid
Tinned copper braid reduces
interference
Filler
RG6-5
Five Conductor RG6 Super High
Resolution Cable
PaRt #
22-100-02
Continued
