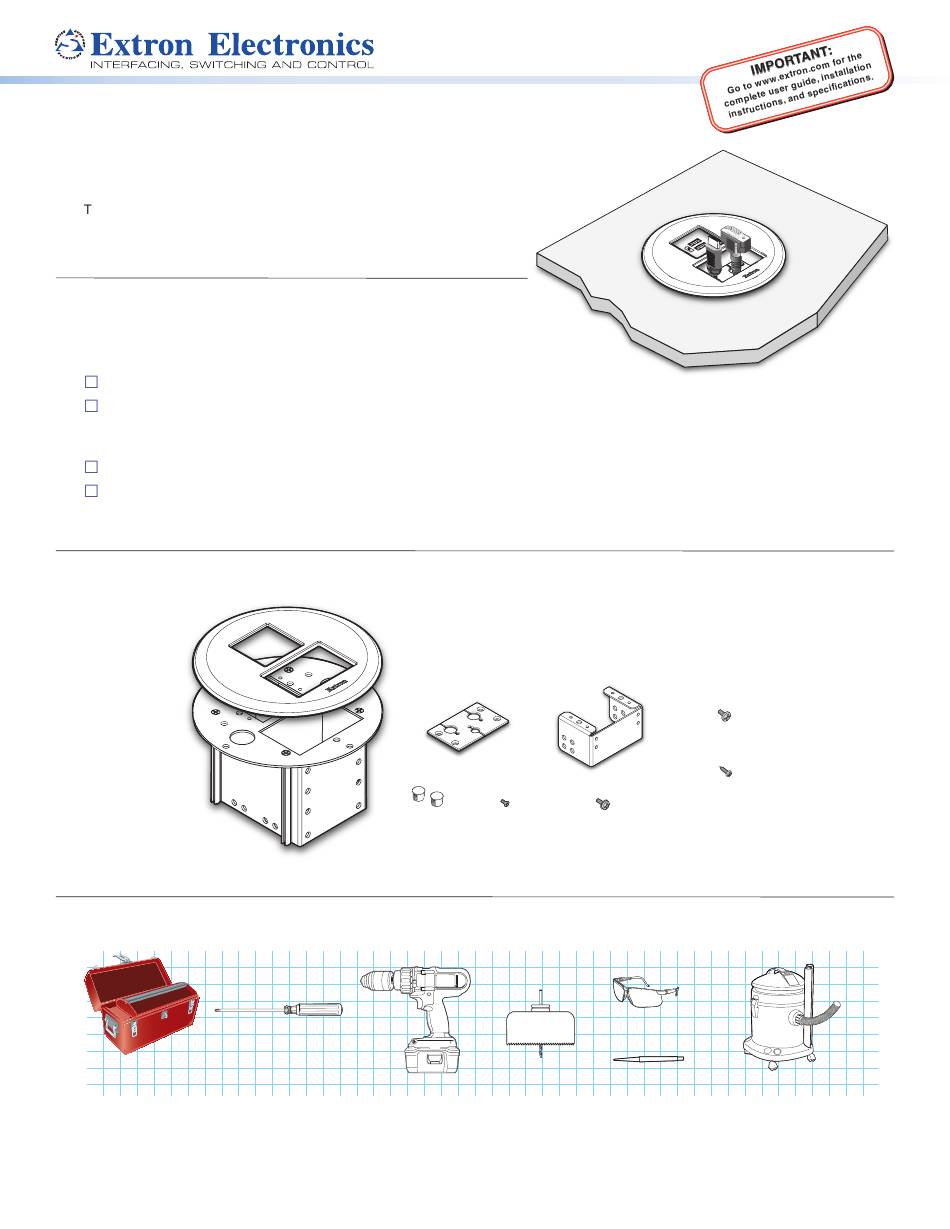

Cable Cubby
100 • Installation Guide
®
This guide provides instructions for an experienced installer to install and connect the
Extron Cable Cubby 100.
he Cable Cubby 100 is a compact furniture-mounted enclosure for cable
access and connections. It can be installed quickly by using a common
4 inch (102 mm) hole saw.
Planning
Check with local and state regulations before starting the
installation:
Ensure that the planned installation complies with building and electrical codes.
Ensure that the planned installation complies with the Americans with Disabilities Act or other accessibility requirements.
Check all parts and equipment before installation:
Ensure that all parts are present in each kit.
Ensure that necessary tools and equipment are available for the installation.
Kit Contents
Tools Required for Installation
Phillips Screw Driver
Cable Grommet Plate
Grommet Plugs
(2) 3/8", (1) 1/4"
Cable Cubby 100
with top bezel
Drill
Connectivity Bracket
#4-40 Plate
#6-32 Bracket Screws
Screws (4)
with Washers (2)
Safety Glasses
4" (102 mm) hole saw
Marking Pen
#4-40 MAAP
Screws (4)
#6 Mounting
Screws (4)
Vacuum Cleaner
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Extron electronics Cable Cubby 100
Summary of Contents for Extron electronics Cable Cubby 100
- Page 1 This guide provides instructions for an experienced installer to install and connect the Extron Cable Cubby 100. he Cable Cubby 100 is a compact furniture-mounted enclosure for cable access and connections. It can be installed quickly by using a common 4 inch (102 mm) hole saw.
- Page 2 Step 1c - Drill the pilot holes into the furniture. Follow these steps to drill the pilot holes for the Cable Cubby 100, then proceed to the next section. Position the Cable Cubby as you wish it to be installed on the furniture.
- Page 3 at the right and wire the MAAP. properly. Step 2 - Install Connectivity Bracket and the MAAPs Follow the steps below to populate the Cable Cubby enclosure. Step 2a — Assemble and Install the Connectivity Bracket Follow the steps below to assemble and install the connectivity bracket with the included cable grommet plate or optional two-space MAAP module.
- Page 4 Insert the assembled Insert the assembled Cable Cubby 100 Cable Cubby 100 carefully into the carefully into the opening on the furniture.
-
Page 5: Step 4 - Route And Connect Cables
Cable Cubby 100 • Installation Guide (Continued) Step 4 - Route and Connect Cables Follow the steps below to route and connect cables under the furniture. Secure cables with zip ties Connect cables to the AV system. to the holes on the side of the Cable Cubby. -
Page 6: Installation Checklist
(Inside India Only) Extron USA - West Extron USA - East +1.714.491.1500 +1.919.850.1000 +31.33.453.4040 +91.80.3055.3777 +1.714.491.1517 FAX +1.919.850.1001 FAX +31.33.453.4050 FAX +91.80.3055.3737 FAX © 2016 Extron Electronics All rights reserved. All trademarks mentioned are the property of their respective owners. www.extron.com...
