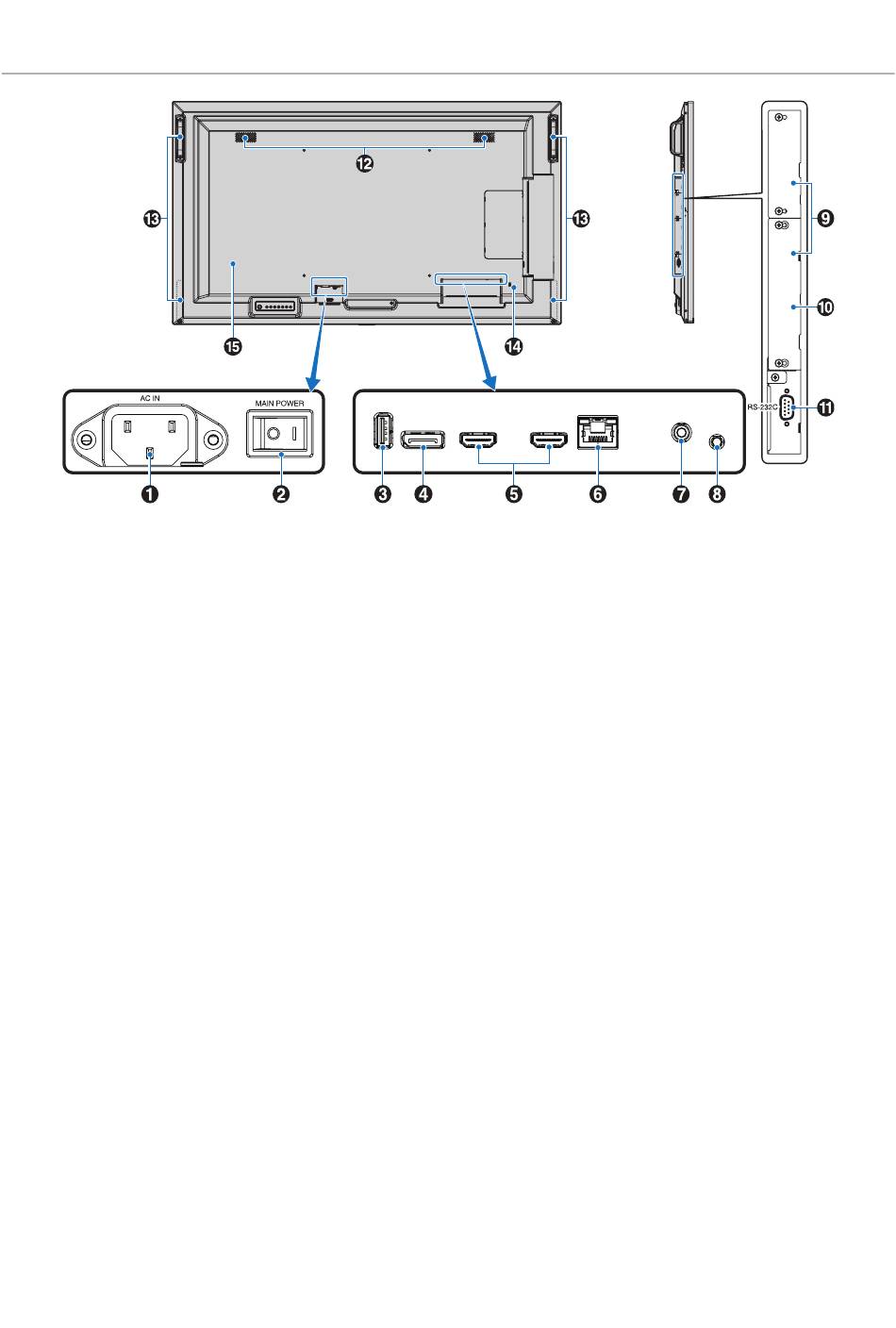

Terminal Panel

1
AC IN Connector
Connects with the supplied power cord.
2
Main Power Switch
On/Off switch to turn main power ON/OFF.
3
USB Port
USB storage device reader for use with the Media Player.
Power supply for USB devices.
For the USB port information, please see
Port" on page 32.
4
DisplayPort IN
DisplayPort signals input.
5
HDMI IN (HDMI1 (ARC)/HDMI2)
HDMI signals input.
NOTE:
• HDMI1 terminal also supports ARC (Audio


Return Channel) for audio output.

• ARC sends the monitor's sound to audio
equipment with an HDMI1 ARC connector.

• Use the included ARC-supported HDMI cable.
The audio equipment will output the monitor's
audio.

• The audio equipment can be controlled with the
included remote control.
HDMI
"Using the USB
USB
DisplayPort IN
HDMI IN (ARC) HDMI IN
6
LAN Port IN (RJ-45)
Connect to LAN in order to manage and control the monitor
over the network. See
7
AUDIO OUT
Audio signal output from DisplayPort and HDMI to an
external device (stereo receiver, amplifier, etc.).
NOTE:
This connector is not a headphone terminal.


8
REMOTE
Use the optional sensor unit by connecting it to your monitor.
NOTE: • Do not use this connector unless specified.



• When the optional sensor unit is connected, the
9
Option Board Slot
Slot for installation of an Intel
(Intel SDM).
®
NOTE: Please contact your supplier for a list of compatible


Option Boards.
0
Raspberry Pi Compute Module Slot
Slot for installing a Raspberry Pi Compute Module Interface
Board and Raspberry Pi Compute Module. See
NOTE:
Installation must be performed by a qualified


technician. Do not attempt to install a Compute
Module Interface Board and Raspberry Pi Compute
Module by yourself.
English−22
LAN IN
AUDIO OUT
REMOTE
page 53.
monitor's remote control sensor is disabled.
Smart Display Module
®
page 73.
